X100-4K Operation

    From ViewSonic User Guide Database

    Home Screen

    The Home Screen is displayed every time you start the projector. To navigate the Home Screen, simply use the directional buttons on the remote control. You can return to the main Home Screen at any time by pressing the Home button on the remote control, regardless of what page you are on.

    X10 Home Screen.png

    Aptoide

    The projector is pre-loaded with the Aptoide store, which allows users to download and install different Apps.

    1. Select: Home > Aptoide.
    2. Use the directional buttons to navigate the menu options. When you find your preferred App, press the OK button to install it.
    NOTE: Users can install third-party Apps by .apk file in File Management. However, some third-party Apps may have compatibility issues. Additionally, some Apps may be Region-Specific and/or require a keyboard and mouse.

    Apps Center

    View, launch, and uninstall Apps.

    1. To view your Apps, select: Home > Apps Center.
    2. Use the directional buttons to select the desired App. Then press OK on the remote control to launch the App.
    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

    To Uninstall Apps

    1. Open the Apps Center by selecting: Home > Apps Center.
    2. Use the directional buttons to select the desired App.
    3. Press and hold OK on the remote control for three (3) seconds.
    4. Select OK to uninstall the App.
    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

    How to Access Netflix

    File Management

    Easily manage files and folders.

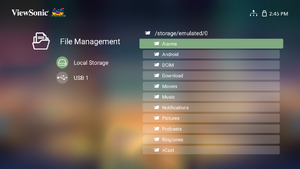

    1. Select: Home > File Management.
    2. Select a device on the source list: USB, Local Storage, MicroSD, etc. Use the directional buttons to select the desired file. Then press OK on the remote control to open the selected file.
    3. Press the Return button to go to a previous a level.
    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.

    How to Edit a File

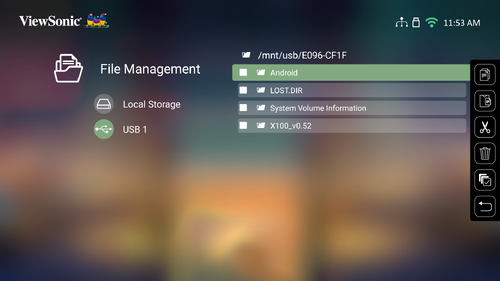

    X100 File Management Edit.png
    1. While in File Management, press and hold the OK button for three (3) seconds.
    2. A check box will appear at the front of each file. Use the directional buttons and press OK to select one or more files.
    3. By pressing the Right button, Copy, Paste, Cut, Delete, Select All, and Return boxes will be available for use.
    4. Select your desired action and press OK to execute.
    5. If you are Copying or Cutting, select your destination folder to complete the process.

    How to Use Control Bar Buttons

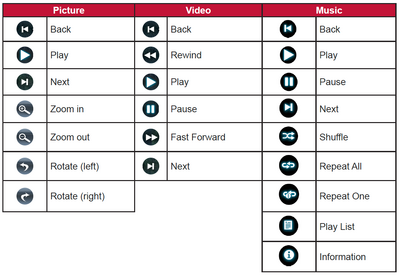

    The Control Bar buttons will appear on screen if a video, music, or photo file are selected to be opened.

    X100 Control Bar.png

    Tips for using USB
    When using USB for reading and/or storage please keep in mind the following:

    1. Some USB storage devices may not be compatible.
    2. If you use an USB extension cable, the USB device may not recognize the USB.
    3. Only use USB storage devices formatted with Windows FAT32 or NTFS file system.
    4. Larger files will need extra time to load.
    5. Data on USB storage devices may be damaged or lost. Back up important files.

    Supported File Formats

    • Supported Office formats:
    X10 Office Files.png

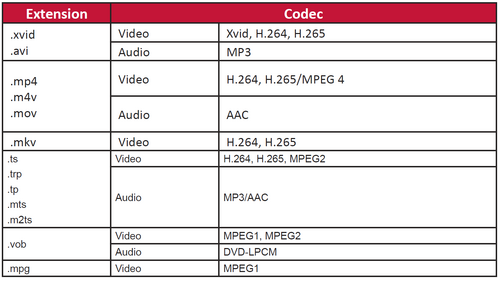

    • Supported Multimedia formats:
    X100 Media Files.png

    Video - File Management

    Setting

    Under Setting you can adjust Network, Basic, and Advanced Settings, Date & Time, Firmware Update, and view Information.

    Network Settings

    1. Select: Home > Setting > Network Settings.
    2. Choose from one of the available options: Wi-Fi or Wired LAN.

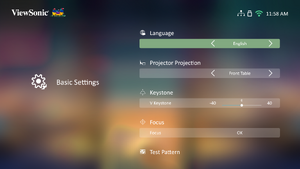

    Basic Settings

    1. Select: Home > Setting > Basic Settings.
    2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.
    3. To return to a previous menu press the Return button.

    Date & Time

    Adjust Date, Time, Time Zone, and Time Format.

    NOTE: The time is displayed in the top-right corner after connecting to the Internet.
    1. Select: Home > Setting > Date & Time.
    2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.

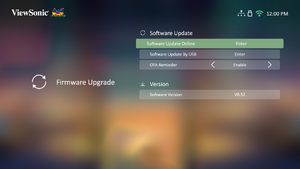

    Firmware Upgrade

    Users can update the firmware by internet or USB, and check the version number.

    NOTE: Do not unplug the power cord, USB, or disconnect from the Internet during the upgrading process.
    1. Before entering the Firmware Upgrade menu, ensure the projector is connected to the Internet.
    2. To enter the menu, select: Home > Setting > Firmware Upgrade.

    Firmware Update Online

    1. Go to: Home > Setting > Firmware Upgrade > Software Update Online.
    2. Select Enter by pressing OK on the remote control.
    3. The system will check the ViewSonic website (OTA) and display a dialog message if there is new Firmware.
    4. After selecting Yes, a progress bar will appear as the update process begins.
    5. After reaching 100% the projector will restart. The whole process will take about 10 minutes.
    6. After updating the Firmware, it will take a few minutes to restart the projector.

    Firmware Update by USB

    NOTE: NTFS format, read only.
    1. Download the latest version from the ViewSonic website and copy the file to a USB device.
    2. Plug the USB into the projector, then go to: Home > Setting > Firmware Upgrade > Software Update By USB.
    3. Select Enter by pressing OK on the remote control.
    4. The system will detect the Firmware version and display the above dialog message.
    5. After selecting Yes, a progress bar will appear as the update process begins.
    6. After reaching 100% the projector will restart. The whole process will take about 10 minutes.
    7. After updating the Firmware, it will take a few minutes to restart the projector.

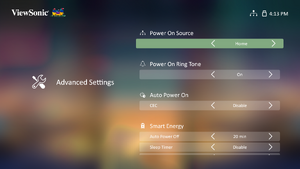

    Advanced Settings

    1. Select: Home > Setting > Advanced Settings.
    2. Use the Up and Down buttons to select the desired option and press OK. Then use the Left and Right buttons to make adjustments or selections.
    3. To return to a previous menu press the Return button.

    Information

    NOTE: Press the Home button on the remote control to return to the Home Screen at anytime.
    1. Select: Home > Setting > Information.

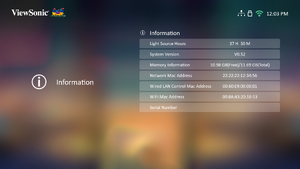

    2. View system status and information.


    Screen Mirroring

    Please see Wireless Screen Mirroring

    Adding Apps

    Add your favorite Apps to the Home Screen.

    1. From the Home Screen, select Add App and then press OK on the remote control.
    2. Use the directional buttons to select the desired App and press OK.
    3. Now your favorite App will appear on the Home Screen.

    Delete Apps from the Home Screen

    1. From the Home Screen, select the App you want to delete and press and hold OK for three (3) seconds.
    2. The message, “Do you want to Delete this application from My Favorites?” will appear.
    3. Select Yes, and press OK to delete the App.

    Controlling the Projector through a LAN Environment

    The projector supports Crestron® software. With the correct settings in the LAN Control Settings menu, you can manage the projector from a computer using a web browser when the computer and projector are properly connected to the same local area network.

    X100 LAN Envi.png

    Configuring the LAN Control Settings

    If you are in an Automatic IP environment:

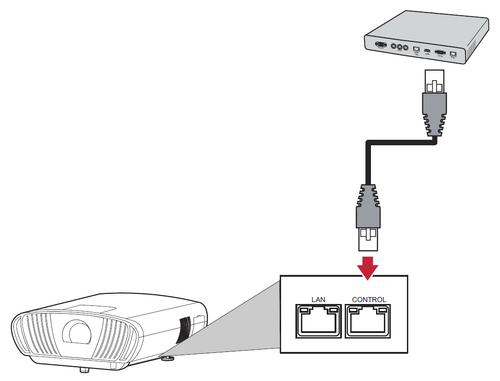

    1. Take a RJ45 cable and connect one end to the RJ45 Control port of the projector, and the other end to your network.
    2. Go to: Setting > Network Settings > Wired LAN Control.
    3. Select Configure IP and ensure it is set to Automatic.
    4. Wait for 15-20 seconds, then re-enter LAN Settings. Now, the projector’s IP Address, Subnet Mask, Default Gateway, and DNS Server settings will be displayed.
    5. Make note of the IP Address displayed in the Projector IP Address row.
    NOTE:
    • If the Projector IP Address still does not appear, contact your network administrator.
    • If the RJ45 cables are not properly connected, the Projector IP Address, Subnet Mask, Default Gateway, and DNS Server will display 0.0.0.0. Ensure the cables are properly connected and try the above steps again.
    • If you need to connect to the projector in its Standby Mode, set Standby LAN Control to On in the Network Settings menu.

    If you are in a Manual Static IP environment:

    1. Take a RJ45 cable and connect one end to the RJ45 Control port of the projector, and the other end to your network.
    2. Go to: Setting > Network Settings > Wired LAN Control.
    3. Highlight LAN Settings and select Manual IP.
    4. Contact your ITS administrator for information on the Projector IP Address, Subnet Mask, Default Gateway, and DNS Server.
    5. Using the directional buttons, select the item you want to modify, and press Left/Right to enter the value.
    6. To save, select Apply and press Enter.
    NOTE: If the RJ45 cables are not properly connected, the Projector IP Address, Subnet Mask, Default Gateway, and DNS Server will display 0.0.0.0. Ensure the cables are properly connected and try the above steps again.

    Controlling the Projector through a Web Browser

    Once you have the correct IP Address for the projector and the projector is On or in Standby Mode, you can use any computer that is on the same local area network to control the projector.

    NOTE:
    • If you are using Microsoft Internet Explorer, make sure it is version 7.0 or higher.
    • The screenshots are for reference only, and may differ from the actual design.
    • Please pay attention to the limitation of input length (including space and other punctuation keys) in the list below:

    Category Item Input Length Maximum Number of Characters
    Network Settings Network DHCP/Manual (N/A)
    IP Address XXX.XXX.XXX.XXX
    Subnet Mask XXX.XXX.XXX.XXX
    Gateway XXX.XXX.XXX.XXX
    DNS Server XXX.XXX.XXX.XXX
    Password Administrator (N/A)
    New Password 4
    Confirm Password 4
    SNMP SysLocation 22
    SysName 22
    SysContact 22
    Email Alert Email Setting To 40
    Cc 40
    Subject 40
    From 40
    SMPT Setting Server 30
    User Name 21
    Password 14
    Email Alert Alert Condition Fan Error (N/A)
    Light Source Error (N/A)
    Over Temperature (N/A)
    Submit (N/A)
    Issue Test Mail (N/A)
    1. Enter the address of the projector in the address bar of your browser and press Enter.
    2. X100 Control Web 1.png
    3. The main page of the Network Control will load:
      X100 Control Web 2.jpg
      NOTE: Accessing the Network Settings, Email Alert page, or Projector/LAN Firmware update page requires the Administrator’s password. The default password is 0000.
    4. This page allows you to make adjustments to the SNMP settings.
    5. If your projector is connected to a network which supports Simple Mail Transfer Protocol (SMTP), you can configure it to alert you via email on significant events.
    6. The Crestron (e-Control)® page displays the Crestron e-Control user interface.

    About Crestron e-Control®

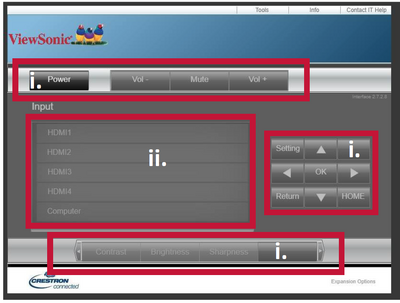

    The Crestron e-Control® page provides a variety of virtual keys to control the projector or adjust the projected pictures.

    X100 Control LAN 3.png
    1. These buttons function the same as the ones on the OSD Menus or remote control.
    2. To switch between input signals, click on the desired signal.
    NOTE:
    • The source list varies according to the connections available on the projector.
    • When you use the projector control panel or remote control to change the OSD Menu settings, it make take a while for the web browser to synchronize these changes with the projector.

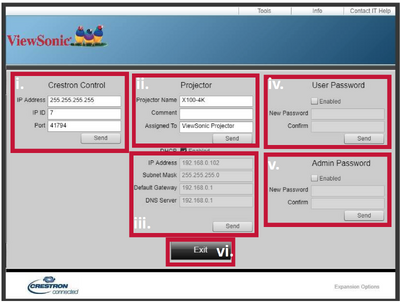

    The Tools page allows you to manage the projector, configure the LAN control settings, and secure access to remote network operations on the projector.

    X100 Control Web 4.png
    1. This section is only used with the Crestron Control System. Please contact Crestron or refer to its user manual for setup information.
    2. Name the projector, keep track of its location, and the person in charge of it.
    3. Adjust the LAN Control Settings.
    4. Once set, access to the remote network operation on the projector will be password protected.
    5. Once set, access to the Tools page will be password protected.
      NOTE:
      • To prevent errors, only input the English alphabet and digits on the Tools page.
      • After making the adjustments, press the Send button and the data will be saved for the projector.
    6. Press Exit to go back to the Remote Network Operation page.

    Please pay attention to the limitation of input length (including space and other punctuation keys) in the list below:

    Category Item Input Length Maximum Number of Characters
    Crestron Control IP Address 16
    IP ID 4
    Port 5
    Projector Projector Name 22
    Comment 32
    Assigned To 22
    Network Configuration DHCP (Enabled) (N/A)
    IP Address 16
    Subnet Mask 16
    Default Gateway 16
    DNS Server 16
    User Password Enabled (N/A)
    New Password 15
    Confirm 15
    Admin Password Enabled (N/A)
    New Password 15
    Confirm 15

    The Info page displays the information and status of the projector. For more information, visit: http://www.crestron.com.
