X100-4K Initial Setup
Jump to navigation
Jump to search
Choosing a Location - Projector Orientation
Personal preference and room layout will decide the installation location. Consider the following:
- Size and position of your screen.
- Location of a suitable power outlet.
- Location and distance between the projector and other equipment.
Front Table
Front Ceiling
Rear Table
Rear Ceiling
| Location | Description |
|---|---|
| Front Table | The projector is placed near the floor in front of the screen. |
| Front Ceiling | The projector is suspended upside-down from the ceiling in front of the screen. |
| Rear Table[1] | The projector is placed near the floor behind the screen. |
| Rear Ceiling[1] | The projector is suspended upside-down from the ceiling behind the screen. |

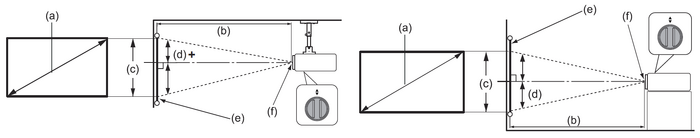

Projection Dimensions
- NOTE: (e) = Screen | (f) = Center of Lens
16:9 Image on a 16:9 Screen
| (a) Screen Size | (b) Projection Distance | (c) Image Height | (d) Vertical Offset | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Minimum | Maximum | ||||||||
| in. | cm | in. | cm | in. | cm | in. | cm | in. | cm |
| 40 | 101.6 | 41.84 | 106.3 | 50.29 | 127.5 | 19.61 | 49.8 | 12.75 | 32.4 |
| 60 | 152.4 | 62.75 | 159.4 | 75.3 | 191.3 | 29.42 | 74.7 | 19.12 | 48.6 |
| 70 | 177.8 | 73.21 | 186 | 87.85 | 223.2 | 34.32 | 87.2 | 22.31 | 56.7 |
| 80 | 203.2 | 83.67 | 212.5 | 100.41 | 255 | 39.22 | 99.6 | 25.49 | 64.8 |
| 90 | 228.6 | 94.13 | 239.1 | 113 | 286.9 | 44.12 | 112.1 | 28.68 | 72.8 |
| 100 | 254 | 104.59 | 265.7 | 125.51 | 318.8 | 49.03 | 124.5 | 31.87 | 80.9 |
| 120 | 304.8 | 125.51 | 318.8 | 150.61 | 382.5 | 58.83 | 149.4 | 38.24 | 97.1 |
| 150 | 381 | 156.88 | 398.5 | 188.26 | 478.2 | 73.54 | 186.8 | 47.8 | 121.4 |
| 200 | 508 | 209.18 | 531.3 | 251.01 | 637.6 | 98.05 | 249.1 | 63.73 | 161.9 |
These figures are for reference purposes only. Please refer to the actual projector for the precise dimensions.

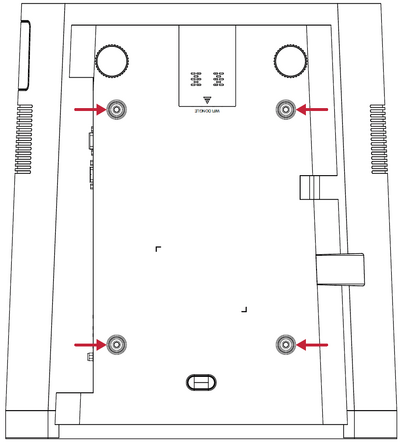

Mounting the Projector
- NOTE: If you buy a third party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate.
- To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount.
- Ensure the screws used to attach the mount to the projector meet the following specifications:
- Screw type: M6 x 8
- Maximum Screw Length: 8 mm
CAUTION
- Avoid installing the projector near a heat source or air conditioner.
- Keep at least a 10 cm (3.9 in.) gap between the ceiling and the bottom of the projector.
