Technical Specifications

Model No. P/N
VS17739 X100-4K
Item Category Specifications
Projector Type 0.47" 4K-UHD, LED
Display Size 40"~200"
Throw Distance 1.06~6.37m (100”±3% @ 2.65 m)
Lens F=1.8~1.825, f=12.62~15.13 mm
Optical Zoom 1.2x
Lamp Type RGBB LED
Light Source Life

(Normal)

up to 30,000 hours
Display Color 1.07 Billion Colors
Keystone -/+ 40 (Vertical)
Input Signal HDMI fh: 30K~97KHz, fv:24~120Hz
Resolution Native 3840 x 2160
Support VGA (640x480) to 4K (3840 x 2160)
Local Storage Total 16 GB
Available 12 GB
Input AUX(Audio-In) (3.5 mm) 1
HDMI 4 (HDMI 2.0, HDCP 1.4/2.2)
USB Type A 2 (USB 3.0 Reader x 1; USB 2.0 Reader x 1)
RJ45 Input 2
Wi-Fi Input 1 (5G)
Output Audio-Out (3.5 mm) 1
S/PDIF 1
Speaker 20W Cube x 2
USB Type-A (Power) 2 (USB 3.0, 5V/2A; USB 2.0, 5V/900mA)
Power Adapter[1] Input Voltage DC IN 100-240V, 50/60 Hz (auto switch)
Operating Conditions Temperature 0°C to 40°C (32°F to 104°F)
Humidity 0% to 90% (non-condensing)
Dimensons Physical

(W x H x D)

416 x 183 x 463 mm

(16.37” x 7.20” x 18.23”)

Weight Physical 7.7 kg (16.96 lbs)
Power Saving Modes On 200W (Typical)
Off < 0.5W (Standby)
  1. ↑ Please use the power adapter from ViewSonic® or an authorized source only.

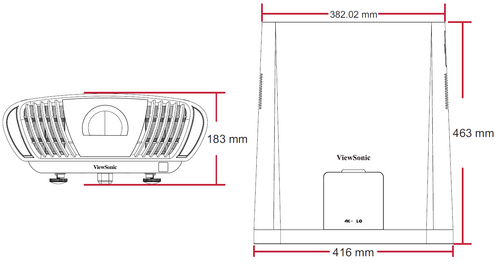

Projector Dimensions

416 mm (W) x 183 mm (H) x 463 mm(D)

Timing Chart

HDMI

Timing Resolution (dots) Refresh Rate (Hz)
SDTV (480i) 720 x 480 60
SDTV (480p) 720 x 480 60
SDTV (576i) 720 x 576 50
SDTV (576p) 720 x 576 50
HDTV (720p) 1280 x 720 50/60
HDTV (1080p) 1920 x 1080 24/25/30/50/60
HDTV (1080i) 1920 x 1080 50/60
UHDTV (4K) 3840 x 2160 24/25/30/50/60
VGA 640 x 480 59/67/72/75/85
720 x 400 720 x 400 70
SVGA 800 x 600 56/60/72/75/85/120
832 x 624 832 x 624 75
XGA 1024 x 768 60/70/75/85
1024 x 576 1024 x 576 60
XGA+ 1152 x 864 75
1152 x 870 1152 x 870 75
WXGA 1280 x 768 60/75/85
WXGA 1280 x 800 60/75/85
SVGA 1280 x 1024 60/75/85
1280 x 720 1280 x 720 120
1280 x 960 1280 x 960 60/85
HD 1360 x 768 60
WXGA+ 1440 x 900 60/75/85
1400 x 1050 1400 x 1050 60
1600 x 1200 1600 x 1200 60
WSXGA+ 1680 x 1050 60
WUXGA 1920 x 1200 60

IR Control Table

Function Address Code Inverse
Byte 1 Byte 2 Byte 3 Byte 4
Power On/Off 83 F4 17 E8
Home 83 F4 16 E9
Focus 83 F4 92 6D
Source 83 F4 40 BF
Setting 83 F4 30 CF
Up 83 F4 0B F4
Down 83 F4 0C F3
Left 83 F4 0E F1
Right 83 F4 0F F0
OK 83 F4 15 EA
Return 83 F4 28 D7
Mute 83 F4 14 EB
Volume + 83 F4 82 7D
Volume - 83 F4 83 7C
Audio Mode 83 F4 9E 61

LED Indicators

Light Status and Description
Power
Red Stand-by Mode (5 sec.) (<0.5W)
Blue Powering Up
Blue Normal Operation
