X100-4K Introduction

    From ViewSonic User Guide Database

    Features

    • Central and Wide lens shift range is excellent for home cinema projection. Project a 100” screen from 2.65 meters.
    • Compatible home automation system with LAN control smart technology. It’s easy to control your smart home equipment.
    • 12V trigger, Motorized Focus, and Screen Mirroring features.
    • 16 GB internal storage (Max. 12 GB available for user storage).
    • Various Color modes for different projection purposes.
    • Multi-language On-Screen Display (OSD) menus.

    Package Contents

    NOTE: The power cord and remote control included in your package may vary depending on your country. Please contact your local reseller for more information.

    Projector Overview

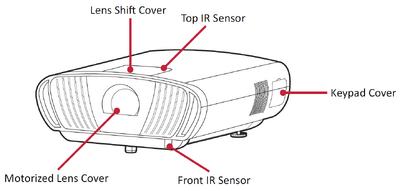

    Projector - Controls and Functions

    X100-4K Overview1.png

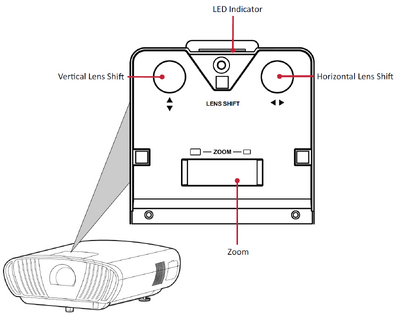

    Lens Shift Cover

    X100-4K Overview2.png

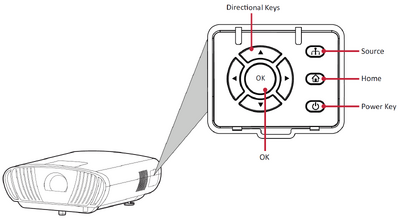

    Keypad Cover

    X100-4K Overview3.png

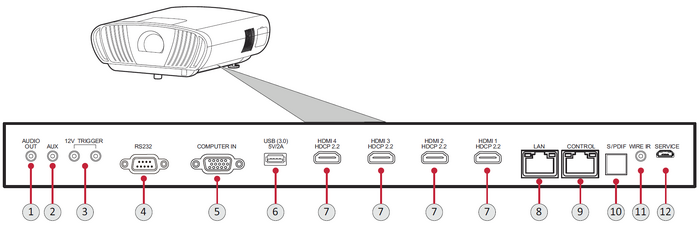

    I/O Ports

    X100 IO Ports.png
    Number Port Description
    1 AUDIO OUT (3.5 mm jack) Audio signal output socket
    2 AUX (3.5 mm jack) Audio signal input socket
    3 12V Trigger 12V DC output terminal
    4 RS-232 RS-232 control port
    5 COMPUTER IN VGA signal input port
    6 USB (5V/2A Out) USB 3.0 Type A port (USB Reader - FAT32)
    7 HDMI 1/2/3/4[1] HDMI port[2]
    8 LAN RJ45 LAN port
    9 CONTROL Compatible home automation system
    10 S/PDIF S/PDIF signal output socket
    11 WIRE IR Connection port for IR sensor extender
    12 Service For Firmware updates
    1. Supports HDCP 2.0/HDMI 2.2.
    2. iPhone/iPad users will need to buy an additional adapter. To avoid compatibility issues, please use Apple authorized accessories.

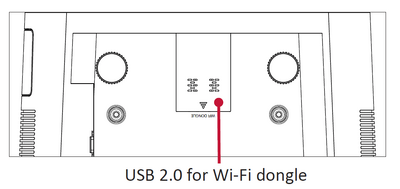

    X100 WiFi Dongle Location.png
