M2W On-Screen Display Menu Options

Input Source Selected - On-Screen Display (OSD) Menu Options

Image Setting Menu

Menu Option	Description
Color Mode	The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal. Brightest Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, i.e. well-lit rooms. TV Optimized for viewing sports in well-lit environments. Gaming Designed for playing video games. Movie Appropriate for colorful movies, video clips from digital cameras, or DVs through the PC input. Best for low-light environments. User 1/User 2 Recalls the customized user settings. NOTE: Only supports HDMI/USB-C signal input.
Brightness	The higher the value, the brighter the image. Lower values will result in a darker image.
Contrast	Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.
Color Temp	Select the color temperature setting. 6500K: Maintains normal white coloring. 7500K: A higher, cooler color temperature than 6500K. 9300K: The highest color temperature; makes the image appear the most bluish-white. User Color: Adjust red, green, and blue values as desired.
Tint	The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.
Saturation	Refers to the amount of that color in a video picture. Lower settings produce less saturated colors; in fact, a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.
Sharpness	A high value results in a sharper picture; a low value softens the picture.
Gamma	Reflects the relationship between input source and picture brightness.
Color Management	Only in permanent installations with controlled lighting levels such as: boardrooms, lecture halls, or home theaters should Color Management be considered. Color Management provides fine color control adjustment to allow for more accurate color reproduction, should you require it. If you have purchased a test disc, which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc., you can project any image from the disc on the screen and enter the Color Management menu to make adjustments.
Reset Current Color Settings	Return current color settings to their default values.

Advanced Settings Menu

Menu Option	Description
Aspect Ratio	The Aspect Ratio is the ratio of the image width to the image height. With the advent of digital signal processing, digital display devices, like this projector, can dynamically stretch and scale the image output to a different aspect than that of the image input signal. NOTE: Only supports HDMI/USB-C signal input. 4:3 Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV, and 4:3 aspect DVD movies, as it displays them without aspect alteration. 16:9 Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV. 16:10 Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio. This is most suitable for images which are already in a 16:10 aspect.
Zoom	Activate the zoom function.
Light Source Level	Select the suitable power consumption of the LED.
HDMI Settings	Range Select a suitable color range according to the color range setting of the connected output device. Full: Sets the color range from 0~255. Limited: Sets the color range from 15~235. Auto: Sets the projector to detect the range of the input signal automatically.
3D Settings	Enables you to enjoy 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images while wearing 3D glasses. 3D Sync Adjust and choose from: Automatic, Off, Frame Sequential, Frame Packing, Top-Bottom, Side-by-Side. 3D Sync Invert Allows for correction if the 3D image depth is inversed.
harmon/kardon	Adjust the audio settings.
Information	Shows Input Source and Resolution.

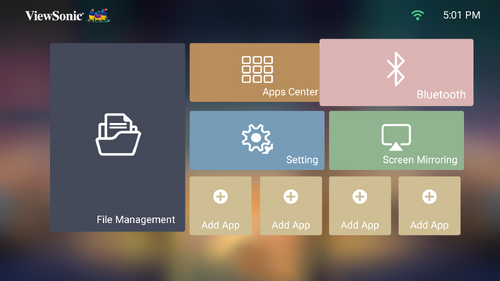

Home Screen - On-Screen Display (OSD) Menu Options

File Management

Provides a user interface to manage files and folders.

Apps Center

Access and view all the applications you have installed.

Bluetooth

The projector is equipped with Bluetooth that allows the user to connect their device wirelessly for audio playback.

Setting

Manage various categories such as: Network settings, Basic and Advanced settings, Date & Time, Firmware update, and system Information.

Basic Settings

Menu Option	Description
Language	Select your desired language.
Projector Position	Select the preferred projection position.
Keystone	Adjust trapezoidal screen image distortion. Auto Keystone Provides a rectangular screen image by automatically adjusting the keystone number when there is a trapezoidal screen image caused by the tilting of the projector. Enable: Automatically adjust the keystone number. Disable: Manually adjust the keystone number. Horizontal Keystone Keystone can be adjusted horizontally manually. Vertical Keystone Keystone can be adjusted vertically manually. 4 Corner Adjustment Adjust each corner individually for maximum projection flexibility.
Zoom	Activate the zoom function.
Focus	Adjust the focus of the screen image. Manual Focus Adjust the focus with the Left and Right buttons on the remote control. Auto Focus Choose from the following: Enable: Automatically adjust the focus instantly without the remote control. Disable: Manually adjust the focus. NOTE: If Auto Focus is Enabled, the projector will automatically focus the screen image when turned on or the position or angle of the projector is adjusted. Auto Focus will be the most accurate when the projected screen size is 50-75’’. For the remaining screen sizes, it is recommended to combine Auto Focus with Manual Focus. In the event Auto Focus fails two times successively, Manual Focus adjustment will pop up automatically.

Date & Time

Menu Option	Description
Automatic Date & Time	Users can synchronize the date and time automatically after connecting to the Internet. Enable Turn on synchronization. Disable Turn off synchronization.
Time Zone	Select your desired location.
Time Format	Select a different display time format. 12 Hours 12-hour clock. 24 Hours 24-hour clock.

Advanced Settings

Menu Option	Description
Power On Source	Allows the user to enter the desired source directly after turning on the projector.
Power On/Off Ring Tone	Enable or disable the power on/off ring tone.
Auto Power On	CEC This projector supports the CEC (Consumer Electronics Control) function for synchronized power on/off operation via HDMI connection. That is, if a device that also supports the CEC function is connected to the HDMI input of the projector, when the projector’s power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected deice is turned on, the projector’s power will be turned on automatically. NOTE: Ensure both the projector’s and the connected device’s CEC function are turned on.
Smart Energy	Auto Power Off The projector can turn off automatically after a set period of time once no input source is detected. Sleep Timer Turn off automatically after a set period of time. Power Saving Lower power consumption if no input source is detected after five (5) minutes. NOTE: The power consumption of the LED will be changed to 30% after no signal is detected for five (5) minutes.
harmon/kardon	Audio Mode Movie: Default audio mode. Music: Ideal for music playback. User: Allows the user to customize the audio equalizer. NOTE: In User mode, 100Hz, 500Hz, 1500Hz, 5000Hz, and 10000Hz can be selected. Audio Volume Adjust the volume from 0 to 50. Mute Mute or unmute the volume.
Light Source Level	Select the suitable power consumption of the LED. Full 100% Eco 70% NOTE: If using a USB-C connected power bank to charge the M2W, the light source level will only have Full (50%) and Eco (30%) options.

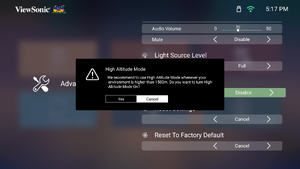

High Altitude Mode	It is recommended that you use High Altitude Mode when your environment is between 1,500-3,000 m above sea level, and a temperature between 5°C-25°C. NOTE: If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.
Reset Settings	Reset the Settings to default. NOTE: Language, High Altitude Mode, Projector Position, Network Settings, All installed Apps in the Apps Center, Add App, Bluetooth, Zoom, H/V Keystone, 4 Corner Adjustment, and Light Source Hours will remain unchanged.
Reset to Factory Default	Factory reset. NOTE: Light Source Hours will remain unchanged.

Screen Mirroring

Mirror your personal device’s screen through the projector.

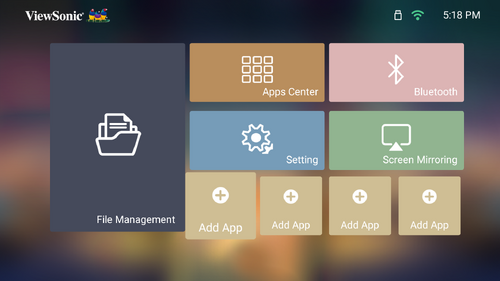

Add App

Select your favorite Apps and add them to the Home Screen.
