M2W Remote Control

Overview

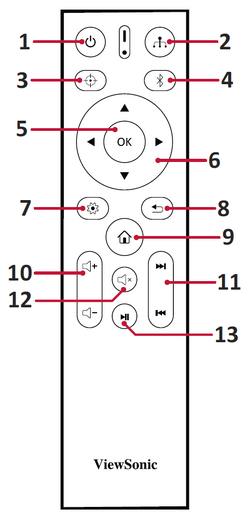

Remote Control

Number	Button	Description
1	Power	Turns the projector On or Off.
2	Source	Displays the input source selection bar.
3	Focus	Automatically focus the image. To manually adjust, press and hold the Focus button on the remote control for three (3) seconds.
4	Bluetooth	Launch Bluetooth search.
5	OK	Confirms the selection.
6	Up/Down/Left/Right	Navigates and selects the desired menu items and makes adjustments.
7	Setting	Displays the Setting menu.
8	Return	Returns to the previous screen.
9	Home	Access the Home screen.
10	Volume	Increase/Decrease the volume level.
11	Forwards/Backwards	Move content forwards/backwards.
12	Mute	Mute/unmute.
13	Play/Pause	Play/Pause content.

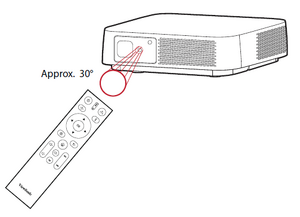

Effective Range

IR Receiver Location

To ensure proper function of the remote control follow the steps below:

1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).
2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.)

NOTE: Refer to the illustration for the location of the infrared (IR) remote control sensor(s).

Replacing the Batteries

1. Remove the battery cover from the bottom of the remote control by pressing the finger grip and sliding it across.
2. Remove any existing batteries (if necessary) and install two AAA batteries.
3. Replace the battery cover by aligning it with the base and pushing it back into position.

NOTE:

• Avoid leaving the remote control and batteries in excessive heat or a humid environment.
• Replace only with the same or equivalent type recommended by the battery manufacturer.
• If the battery is drained or if you will not be using the remote control for an extended period of time, remove the battery to avoid damage to the remote control.
• Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.
