M2W Introduction
Package Contents
M2W Projector
Remote Control
Power Cord
USB-C Cable
DC Power Adapter
Batteries
Soft Carrying Bag
Quick Start Guide
- NOTE: The power cord and video cables included in your package may vary depending on your country. Please contact your local reseller for more information.
Projector Overview

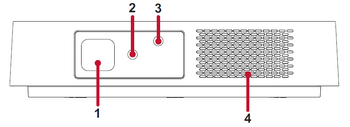

Front View

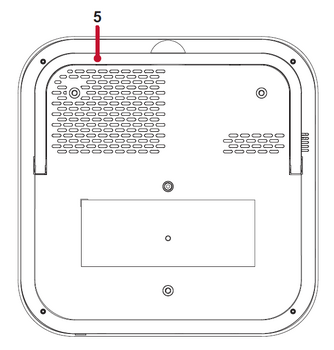

Bottom View
| Number | Item | Description |
|---|---|---|
| 1 | Lens | Projector Lens |
| 2 | IR Sensor | IR Sensor |
| 3 | Auto Focus Camera | Automatically adjusts the focus |
| 4 | harmon/kardon Speakers | harmon/kardon speakers |
| 5 | Adjustor Foot | Stepless adjustment foot |

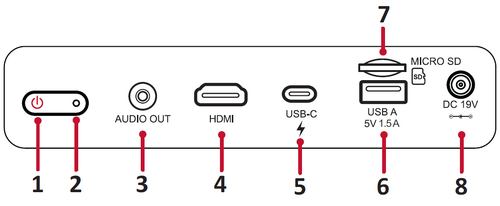

I/O Ports
| Number | Port | Description |
|---|---|---|
| 1 | Power Button | Power On/Off |
| 2 | LED Indicator | LED Indicator |
| 3 | Audio Out (3.5 mm jack) | 3.5 mm jack audio output socket |
| 4 | HDMI[1] | HDMI port[2] |
| 5 | USB-C[3] | USB-C port |
| 6 | USB A (5V/1.5A Out) | USB 2.0 Type A port (USB Reader - FAT32/NTFS) |
| 7 | MICRO SD | Micro SD socket (SDXC up to 256 GB - FAT32/NTFS) |
| 8 | DC IN | Power input socket |
