    Connecting to Power

    • DC Power (Power Outlet)

      DC Power (Power Outlet)

    • USB-C Power Bank

      USB-C Power Bank

    DC Power (Power Outlet)

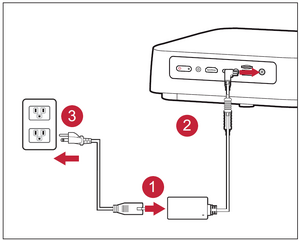

    1. Connect the power cord to the power adapter.
    2. Connect the power adapter to the DC IN jack at the rear of the projector.
    3. Connect the power cord plug to a power outlet.
    NOTE: When installing the projector, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible outlet near the unit. If a fault should occur during operation of the projector, use the disconnect device to switch off the power supply, or disconnect the power plug.

    USB-C Power Bank

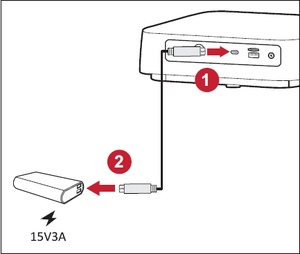

    1. Connect one end of the USB Type-C cable to the USB-C port of the projector.
    2. Connect the other end of the USB Type-C cable to the power bank.
    NOTE: The power bank should be 45W (15V/3A) at least, and support Power Delivery (PD) protocol output.

    Connecting to External Devices

    • HDMI Connection

      HDMI Connection

    • USB Connection

      USB Connection

    HDMI Connection

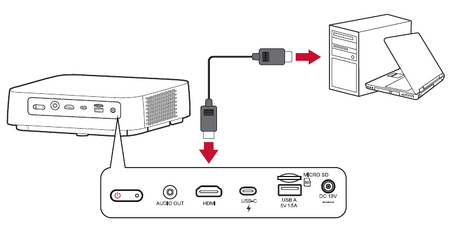

    Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI port (it supports HDCP 1.4/HDMI 1.4) of your projector.

    NOTE: iPhone/iPad users will need to use an additional adapter.

    USB Connection

    USB-C Connection

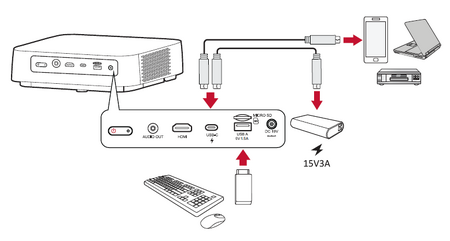

    Connect one end of a USB Type-C cable to the USB-C port of your device. Then connect the other end of the cable to the USB-C port of your projector.

    NOTE:
    • Ensure your USB Type-C device can support video transmission.
    • The M2W can also use a USB-C connected power bank to turn on the system. However, the brightness level will be limited to 50% and 30% when the Light Source Level is set as Full or Eco respectively.

    USB Type-A Connection
    Connect one end of a USB Type-A cable to the USB-A port of your device (if applicable). Then connect the other end of the cable to the USB A port of your projector.

    Additionally, you can connect a keyboard, a mouse, dongles, storage devices, etc. to the projector’s USB-A port.

    Wireless Screen Mirroring

    Please see Wireless Screen Mirroring

    Connecting to Audio

    Bluetooth Speaker

    The projector is equipped with Bluetooth that allows the user to connect the projector to their Bluetooth device wirelessly for audio playback.

    • Step 2 - Select Bluetooth Speaker

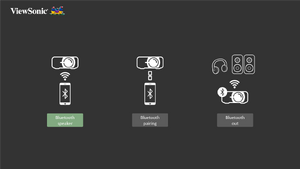

      Step 2 - Select Bluetooth Speaker

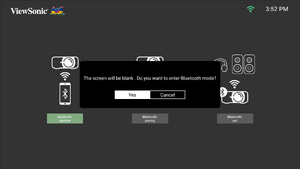

    • Step 3 - Enter Bluetooth mode

      Step 3 - Enter Bluetooth mode

    To connect and pair your device:

    1. Go to: Home > Bluetooth.
    2. Use the Left and Right directional buttons on the remote control to select Bluetooth Speaker or Bluetooth Pairing. Then press OK on the remote control.
    3. When the dialogue box appears, select Yes and press OK on the remote control to enter Bluetooth mode.
    4. A sound effect will be audible upon entering pairing mode.
    5. Upon successful connection, another sound effect will be audible.
    NOTE:
    • Once paired, if both the projector and your device are powered on they will automatically connect via Bluetooth.
    • The projector’s name will be labeled as “M2W”.
    • Only the Power and Return buttons can exit Bluetooth mode.

    Bluetooth Out

    Connect the projector to external headphones or speakers that support Bluetooth.

    • Step 2 - Select Bluetooth Out

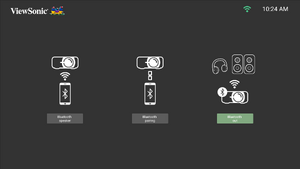

      Step 2 - Select Bluetooth Out

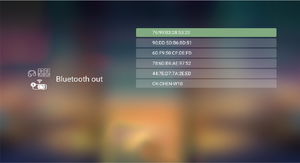

    • Step 3 - Search for nearby devices

      Step 3 - Search for nearby devices

    To connect and pair your device:

    1. Go to: Home > Bluetooth.
    2. Use the Left and Right directional buttons on the remote control to select the Bluetooth Out option.
    3. The projector will search for nearby Bluetooth devices. Select your device from the list and press OK on the remote control.

    Connecting to Networks

    Wi-Fi Connection

    To connect to a Wi-Fi network:

    1. Go to: Home > Setting > Network Settings > Wi-Fi
    2. Press Left or Right on the remote control to select Enable.
    3. Available Wi-Fi networks will then be displayed. Select one of the available Wi-Fi networks.
    4. If you connect to a secure Wi-Fi network, you must enter the password when prompted.

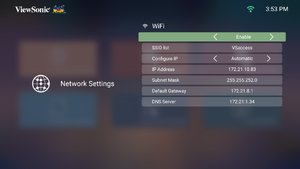

    • Step 2 - Enable Wi-Fi

      Step 2 - Enable Wi-Fi

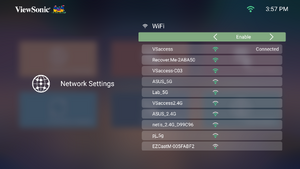

    • Step 3 - Select Network

      Step 3 - Select Network

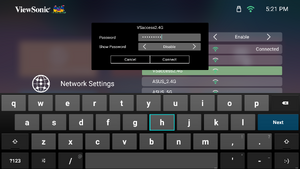

    • Step 4 - Enter credentials

      Step 4 - Enter credentials


    Custom SSID

    1. Go to: Home > Setting > Network Settings > Wi-Fi
    2. Press Left or Right on the remote control to select Enable.
    3. From the available Wi-Fi networks list select Others and press OK on the remote control.
    4. Enter the SSID and select the security level.
    5. Enter the password when prompted.
    • Step 3 - Select Others

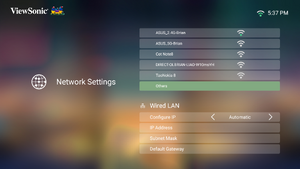

      Step 3 - Select Others

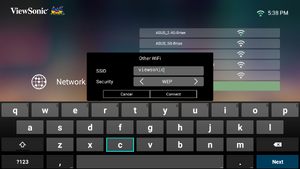

    • Step 4 - Enter SSID

      Step 4 - Enter SSID

    • Step 5 - Enter Password

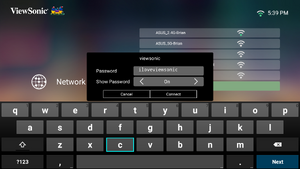

      Step 5 - Enter Password
