    Starting the Projector

    1. Ensure the projector’s power cord is properly connected to a power outlet.
    2. After plugging in the DC Power Adapter, the projector will turn on automatically.
    NOTE: The Status LED will be green during startup.

    First Time Activation

    If the projector is activated for the first time, you will need to select your Projection Orientation, Preferred Language, Network Settings, and Source Input. Follow the on-screen instructions using the OK and Up/Down/Left/Right buttons on the remote control. When the Finish screen appears, this indicates the projector is ready to use.

    Auto Focus

    The automatic focus adjustment will run for the first time activation.

    M2e Auto Focus.jpg
    NOTE: You may use the Left/Right buttons to focus the projection manually.

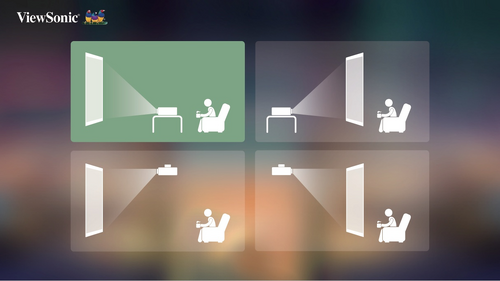

    Projection Orientation

    Select the preferred projection orientation and press OK to confirm the selection.

    M2 Projection Orientation.png

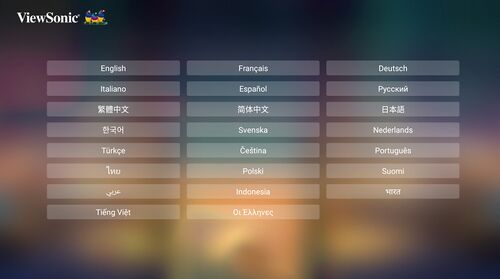

    Preferred Language

    Select the desired language and press OK to confirm the selection.

    M2 Preferred Language.jpg

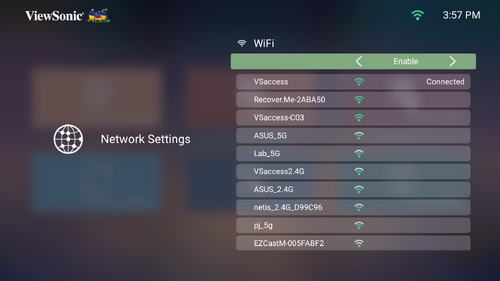

    Network Settings

    Select one of the available options.

    M2e WiFi Connection 2.png

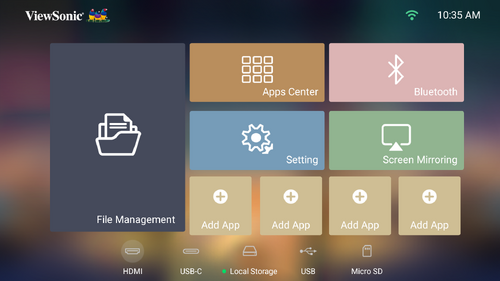

    Source Input

    Quickly access the Source Input menu by pressing the Down button on the remote control when at the Home Screen. Additionally, you can press the Source button on the remote control.

    M2e Source Input Home.png

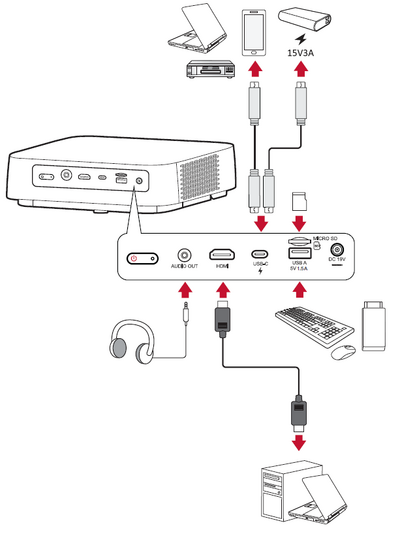

    Selecting an Input Source

    The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

    M2W Input Source.PNG

    The projector will automatically search for input sources. If multiple sources are connected, press the Source button on the remote control to select the desired input, or press the Down button when at the Home Screen until the source list is displayed.

    NOTE: Ensure the connected sources are also turned on.

    Adjusting the Projector's Height and Projection Angle

    The projector is equipped with one (1) adjuster foot. Adjusting the foot will change the projector’s height and the vertical projection angle. Carefully adjust the foot to fine tune the projected image’s position.

    M2e Height Adjust.png


    NOTE: If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image can become trapezoidal. However, the “Auto Vertical Keystone” function will correct the issue automatically.

    Shutting Down the Projector

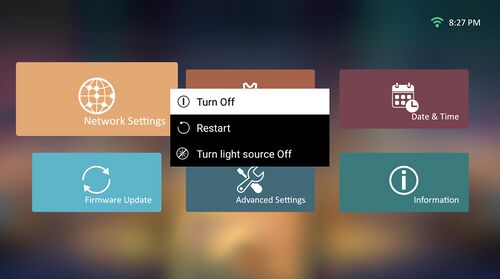

    1. Press the Power button on the projector or remote control and the following message will appear:
    2. M2 Shut Down.jpg
    3. Press the Up/Down buttons on the remote control to select Turn Off and press OK on the remote control.
    4. The Status LED will turn solid red once turned off.
    NOTE: When pressing Power on the remote control, you can choose from three (3) options: Turn Off, Restart, and Turn light source Off.
