Starting the Projector

M1 mini Plus Startup.png
  1. Ensure the projector is connected to a power source or that the battery has sufficient charge.
  2. Push the Power Switch to turn on the projector, and press the Power button on the remote control.

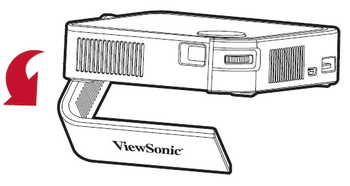

  3. Move the Smart Stand to your desired viewing angle.
M1 mini Plus Smartstand.png
NOTE: When not in use, please push the Power Switch to Off. If only using the Power button on the remote control to power off, the projector will enter standby mode and the embedded battery will still consume some power.

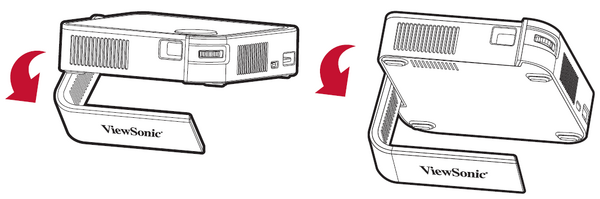

Adjusting the Projector's Height and Projection Angle

The projector is equipped with one (1) Smart Stand. Adjusting the stand will change the projector’s height and the vertical projection angle. Carefully adjust the stand to fine tune the projected image’s position.

M1 mini Plus Height Adjust.png
NOTE:
  • If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image can become trapezoidal. However, the “Auto Vertical Keystone” function will correct the issue automatically.
  • It is not recommended to use the Smart Stand at 90° degrees.

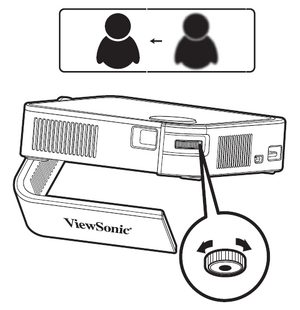

Adjusting the Focus

To adjust the image focus of the on-screen image, slowly move the focus ring forwards or backwards.

M1 mini Plus Focus.png

Shutting Down the Projector

  1. Push the Power Switch on the projector or press the Power button on the remote control.

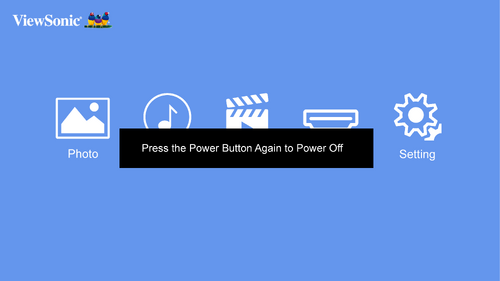

  2. By pressing the Power button on the remote control, the following message will appear:
  3. M1 mini Shut Down.png
  4. Push the Power Switch or press the Power button on the remote control again to turn off the projector. To cancel, press any other button on the remote control.
NOTE: When not in use, please push the Power Switch to Off. If only using the Power button on the remote control to power off, the projector will enter standby mode and the embedded battery will still consume some power.
