M1 mini Introduction
Features
- Short throw lens design allows for a projected 39” screen size from only 1 meter away.
- Auto V. keystone to correct a distorted image automatically.
- Excellent audio performance by JBL.
- Instant on/off and great colors.
- Swappable color top plates and flexible angle adjustment.
- Multi-language On-Screen Display (OSD) menus.
- Embedded battery for easy outdoor projection.
- User-friendly UI design for easy navigation.
- LED light source with excellent light source life (30,000 hours).
- Color modes for every occasion.
- NOTE: The apparent brightness of the projected image will vary depending on the ambient lighting conditions, selected input signal contrast/brightness settings, and projection distance.
Package Contents
M1 mini Projector
Remote Control
Quick Start Guide
Swappable Top Plate
Lanyard
Micro USB Cable
CR2032 Battery

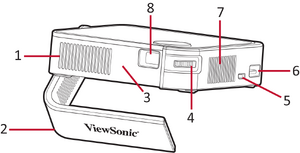

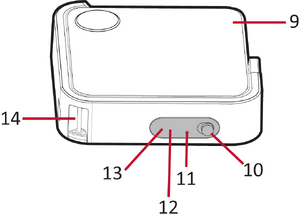

Projector Overview
| Number | Item |
|---|---|
| 1 | Vent |
| 2 | Smart Stand |
| 3 | IR Receiver |
| 4 | Focus Ring |
| 5 | DC IN (Micro USB Port) |
| 6 | USB Type A Port |
| 7 | Speaker |
| 8 | Lens |
| 9 | Top Plate |
| 10 | Power Switch |
| 11 | Reset Button[1] |
| 12 | LED Indicator |
| 13 | IR Receiver |
| 14 | Lanyard Attachment Point |
| 15 | Power Switch |
| 16 | HDMI Port |
- ↑ In the event of a system crash, use the Reset Button to restart the projector.
