M10 Connecting Power and Devices

Connecting to Power

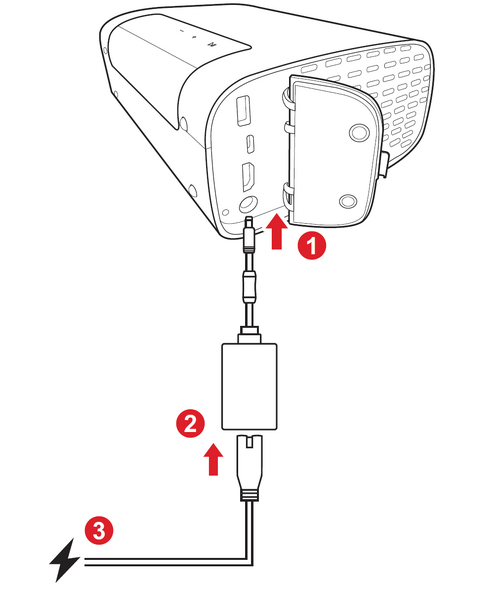

DC Power (Power Outlet)

Connect the power cord to the power adapter.
Connect the power adapter to the DC IN jack at the side of the projector.
Plug the power cord plug into a power outlet.

Note: When installing the projector, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible outlet near the unit. If a fault should occur during operation of the projector, use the disconnect device to switch off the power supply, or disconnect the power plug.

Connecting to External Devices

HDMI Connection

Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI port of the projector.

USB Connection

USB Type A Connection

To enjoy photos, music, and movies, simply plug in a USB flash drive to the USB Type A port.

USB Type C Connection

Connect one end of a USB Type C cable to the USB Type C port of your device. Then connect the other end of the cable to the USB-C port of the projector.

NOTE:

Ensure your USB Type C device can support video transmission.
The connected device can also be charged (5V/2A).

Bluetooth Connection

Bluetooth Speaker

The projector is equipped with Bluetooth that allows the user to connect the projector to their Bluetooth device wirelessly for audio playback.

To connect and pair your device:

Go to: Home > Bluetooth.

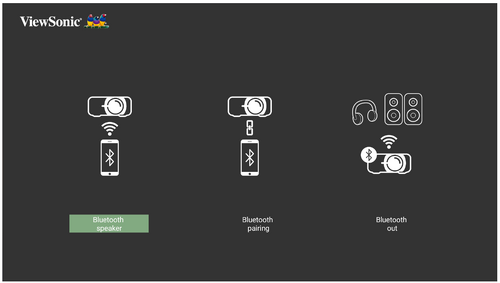

Use the Left and Right directional buttons on the remote control to select Bluetooth Speaker or Bluetooth Pairing. Then press OK on the remote control.

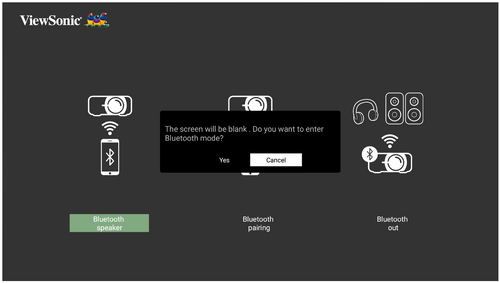

When the dialogue box appears, select Yes and press OK on the remote control to enter Bluetooth mode.

A sound effect will be audible upon entering pairing mode.
Upon successful connection, another sound effect will be audible.

NOTE:

The projector’s name will be labeled as “M10”.
Only the Power and Return buttons can exit Bluetooth mode.

Bluetooth Out

Connect the projector to external headphones or speakers that support Bluetooth.

To connect and pair your device:

Go to: Home > Bluetooth.

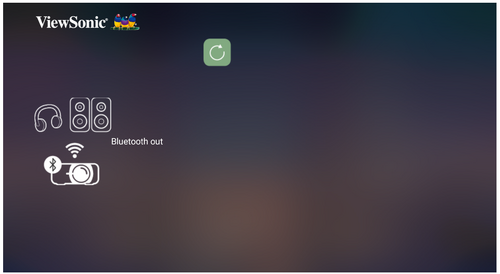

Use the Left and Right directional buttons on the remote control to select the Bluetooth Out option.

The projector will search for nearby Bluetooth devices. Select your device from the list and press OK on the remote control.

Note: Once paired, if both the projector and your device are powered on they will automatically connect via Bluetooth.

Connecting to Networks

Wi-Fi Connection

With built-in Wi-Fi, you can easily connect to wireless internet networks.

To connect to a Wi-Fi network:

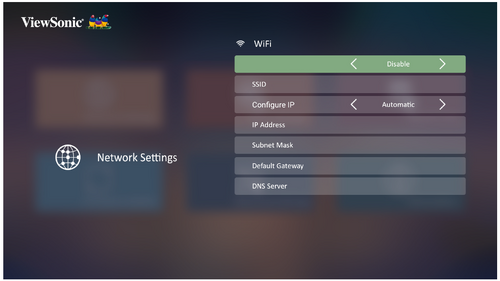

Go to: Home > Settings > Network Settings > Wi-Fi.
Press Left or Right on the remote control to select Enable.

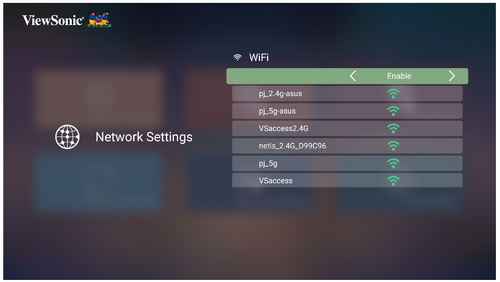

Available Wi-Fi networks will then be displayed. Select one of the available Wi-Fi networks.

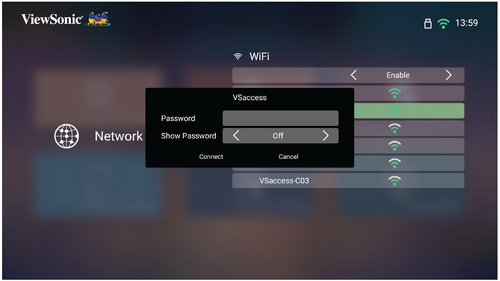

If you connect to a secure Wi-Fi network, you must enter the password when prompted.

Custom SSID

Go to: Home > Settings > Network Settings > Wi-Fi.
Press Left or Right on the remote control to select Enable.

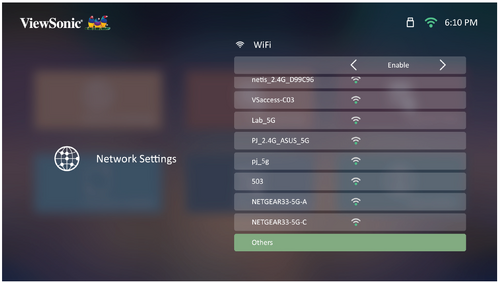

From the available Wi-Fi networks list select Others and press OK on the remote control.

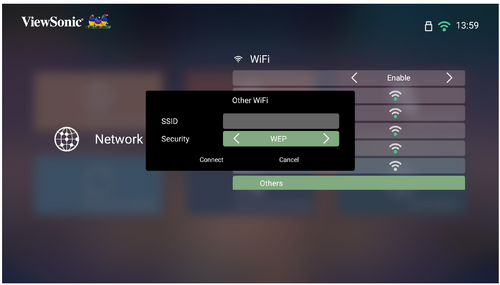

Enter the SSID and select the security level.

Enter the password when prompted.

Wireless Screen Mirroring

Please see Wireless Screen Mirroring
