From ViewSonic Documentation

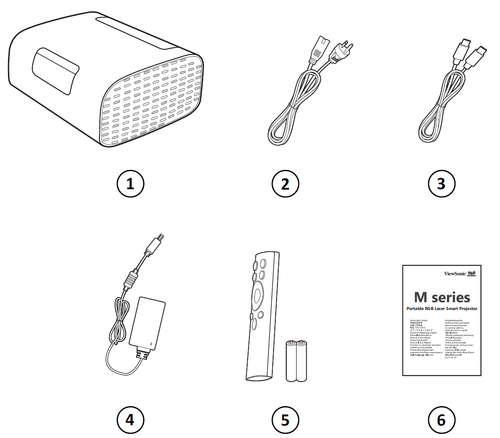

Package Contents
| Number
|
Description
|
| 1
|
Projector
|
| 2
|
Power Cord
|
| 3
|
USB Type C Cable
|
| 4
|
Power Adapter
|
| 5
|
Remote Control with Batteries
|
| 6
|
Quick Start Guide
|

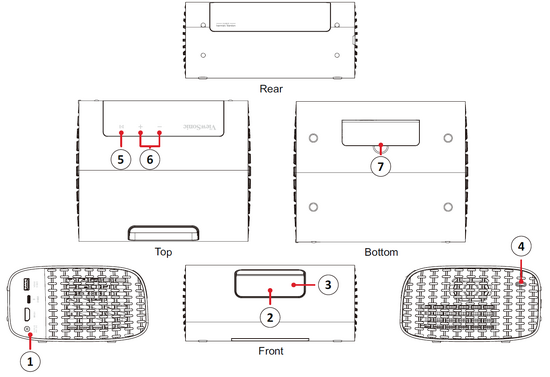

Projector Overview
| Number
|
Description
|
| 1
|
I/O Ports
|
| 2
|
Lens
|
| 3
|
Auto Focus Sensor
|
| 4
|
Power Button
|
| 5
|
Play/Pause
|
| 6
|
Volume Control
|
| 7
|
Adjustable Foot
|

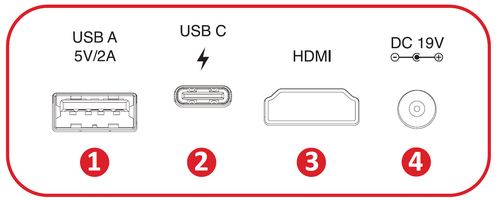

I/O Ports
| Number
|
Description
|
| 1
|
USB Type A
|
| 2
|
USB Type C[1]
|
| 3
|
HDMI[2][3]
|
| 4
|
DC IN
|
- ↑ Please use the supplied USB Type C cable, and make sure your USB Type C device can support video transmission.
- ↑ Supports HDMI 2.0/HDCP2.2
- ↑ iPhone/iPad users will need to buy an additional adapter. To avoid compatibility issues, please use Apple authorized accessories.
