    Overview

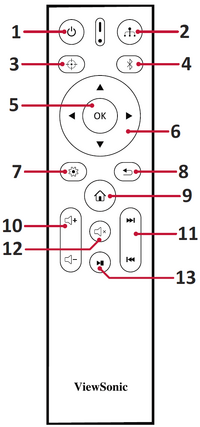

    Remote Control
    Number Button Description
    1 Power Turns the projector On or Off.
    2 Source Displays the input source selection bar.
    3 Focus Automatically focus the image.

    Press and hold for three (3) seconds to manually adjust the focus.

    4 Bluetooth Launch Bluetooth search.
    5 OK Confirms the selection.
    6 Up / Down / Left / Right Navigates and selects the desired menu items and make adjustments.
    7 Setting Displays the Setting menu.
    8 Return Returns to the previous screen.
    9 Home Access the Home screen.
    10 Volume Increase/Decrease the volume level.
    11 Forwards / Backwards Move content forwards/backwards.
    12 Mute Mute/Unmute.
    13 Play / Pause Play/Pause content.

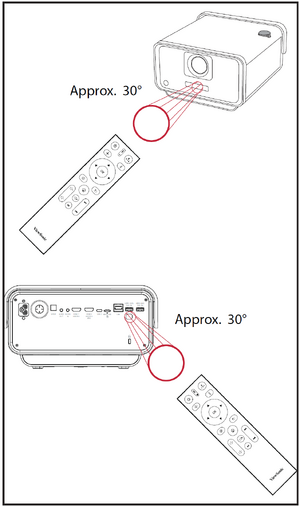

    Effective Range

    IR Receiver Location

    To ensure proper function of the remote control follow the steps below:

    1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).
    2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.)
    NOTE: Refer to the illustration for the location of the infrared (IR) remote control sensor(s).

    Replacing the Batteries

    1. Remove the battery cover from the bottom of the remote control by pressing the finger grip and sliding it across.
    2. Remove any existing batteries (if necessary) and install two AAA batteries.
    NOTE: Observe the battery’s polarities as indicated.
    1. Replace the battery cover by aligning it with the base and pushing it back into position.
    NOTE:
    • Avoid leaving the remote control and batteries in excessive heat or a humid environment.
    • Replace only with the same or equivalent type recommended by the battery manufacturer.
    • If the battery is drained or if you will not be using the remote control for an extended period of time, remove the battery to avoid damage to the remote control.
    • Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.
