X11-4K Specifications
Technical Specifications
| Model No. | P/N |
|---|---|
| VS18846 | X11-4K |
| Item | Category | Specifications |
|---|---|---|
| Projector | Type | 0.47" 4K-UHD, LED |
| Display Size | 30"~200" | |
| Throw Distance | 0.5-3.5 m (100”±3%@1.77 m) | |
| Lens | F=1.8, f=8.5 mm | |
| Optical Zoom | Fixed | |
| Lamp Type | RGBB LED | |
| Light Source Life
(Normal) |
up to 30,000 hours | |
| Display Color | 1.07 Billion Colors | |
| Keystone | -/+ 40 (Horizotonal & Vertical) | |
| Input Signal | HDMI | fh: 15K~135kHz, fv:23~120Hz |
| Resolution | Native | 3840 x 2160 |
| Support | VGA (640x480) to 4K (3840 x 2160) | |
| Local Storage | Total | 16 GB |
| Available | 12 GB | |
| Input | Audio In (3.5 mm) | 1 |
| Audio In (Bluetooth) | 1 (BT 4.2) | |
| HDMI | 2 (HDMI 2.0, HDCP 1.4/2.2) | |
| SD Card | Micro SD (Supports up to 256 GB, SDXC) | |
| USB Type-C | 1 (5V/2A) | |
| USB Type-A | 2 (USB 2.0 Reader x 2) | |
| RJ45 Input | 1 | |
| Wi-Fi Input | 1 (5G) | |
| Output | Audio-Out (3.5 mm) | 2 |
| Audio-Out (Bluetooth) | 1 (BT 4.2) | |
| S/PDIF | 1 | |
| Speaker | 8W Cube x 2 | |
| USB Type-A (Power) | 2 (USB 2.0, 5V/1.5A) | |
| Power Adapter[1] | Input Voltage | AC 100-240V, 50/60 Hz (auto switch) |
| Operating Conditions | Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0% to 90% (non-condensing) | |
| Dimensons | Physical
(W x H x D) |
261 x 271 x 146 mm
(10.28” x 10.67” x 5.75”) |
| Weight | Physical | 4.5 kg (9.92 lbs) |
| Power Saving Modes | On | 115W (Typical) |
| Off | < 0.5W (Standby) |
- ↑ Please use the power adapter from ViewSonic® or an authorized source only.

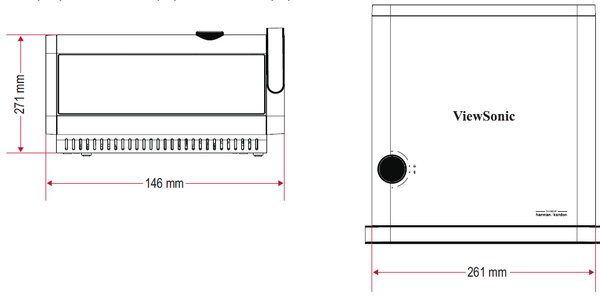

Projector Dimensions
261 mm (W) x 271 mm (H) x 146 mm(D)
Timing Chart
HDMI 1/HDMI 2/USB-C PC Timing
| Timing | Resolution (dots) | Refresh Rate (Hz) |
|---|---|---|
| SDTV (480i) | 720 x 480 | 60 |
| SDTV (480p) | 720 x 480 | 60 |
| SDTV (576i) | 720 x 576 | 50 |
| SDTV (576p) | 720 x 576 | 50 |
| HDTV (720p) | 1280 x 720 | 50/60 |
| HDTV (1080p) | 1920 x 1080 | 24/25/30/50/60 |
| HDTV (1080i) | 1920 x 1080 | 50/60 |
| UHDTV (4K) | 3840 x 2160 | 24/25/30/50/60 |
| VGA | 640 x 480 | 59/67/72/75/85 |
| 720 x 400 | 720 x 400 | 70 |
| SVGA | 800 x 600 | 56/60/72/75/85/120 |
| 832 x 624 | 832 x 624 | 75 |
| XGA | 1024 x 768 | 60/70/75/85 |
| 1024 x 576 | 1024 x 576 | 60 |
| XGA+ | 1152 x 864 | 75 |
| 1152 x 870 | 1152 x 870 | 75 |
| WXGA | 1280 x 768 | 60/75/85 |
| WXGA | 1280 x 800 | 60/75/85 |
| SVGA | 1280 x 1024 | 60/75/85 |
| 1280 x 720 | 1280 x 720 | 120 |
| 1280 x 960 | 1280 x 960 | 60/85 |
| HD | 1360 x 768 | 60 |
| WXGA+ | 1440 x 900 | 60/75/85 |
| 1400 x 1050 | 1400 x 1050 | 60 |
| 1600 x 1200 | 1600 x 1200 | 60 |
| WSXGA+ | 1680 x 1050 | 60 |
| WUXGA | 1920 x 1200 | 60 |
HDMI 1/HDMI 2/USB-C Video Timing
| Signal | Resolution | Aspect Ratio | Refresh Rate (Hz) |
|---|---|---|---|
| VGA | 640 x 480 | 04:03 | 60 |
| SVGA | 800 x 600 | 04:03 | 60 |
| XGA | 1024 x 768 | 04:03 | 60 |
| WXGA | 1280 x 768 | 15:09 | 60 |
| 1280 x 800 | 16:10 | 60 | |
| 1360 x 768 | 16:09 | 60 | |
| Quad-VGA | 1280 x 960 | 04:03 | 60 |
| SXGA | 1280 x 1024 | 05:04 | 60 |
| SXGA+ | 1400 x 1050 | 04:03 | 60 |
| WXGA+ | 1440 x 900 | 16:10 | 60 |
| WSXGA+ | 1680 x 1050 | 16:10 | 60 |
| 4K2K | 3840 x 2160 | 16:09 | 24/25/30/50/60 |
| HDTV (1080p) | 1920 x 1080 | 16:09 | 50/60 |
| HDTV (1080i) | 1920 x 1080 | 16:09 | 50/60 |
| HDTV (720p) | 1280 x 720 | 16:09 | 50/60 |
| SDTV (480p) | 720 x 480 | 4:3/16:9 | 60 |
| SDTV (576p) | 720 x 576 | 4:3/16:9 | 50 |
| SDTV (480i) | 720 x 480 | 4:3/16:9 | 60 |
| SDTV (576i) | 720 x 576 | 4:3/16:9 | 50 |
IR Control Table
| Function | Address | Code | Inverse | |
|---|---|---|---|---|
| Byte 1 | Byte 2 | Byte 3 | Byte 4 | |
| Up | 83 | F4 | 0B | F4 |
| Down | 83 | F4 | 0C | F3 |
| Left | 83 | F4 | 0E | F1 |
| Right | 83 | F4 | 0F | F0 |
| Mute | 83 | F4 | 14 | EB |
| Enter/OK | 83 | F4 | 15 | EA |
| Home | 83 | F4 | 16 | E9 |
| Play/Pause | 83 | F4 | 1A | E5 |
| Exit/Return | 83 | F4 | 28 | D7 |
| Menu/Setting | 83 | F4 | 30 | CF |
| Source | 83 | F4 | 40 | BF |
| Power On/Off | 83 | F4 | 17 | E8 |
| Focus | 83 | F4 | 92 | 6D |
| Bluetooth | 83 | F4 | A2 | 5D |
| Previous | 83 | F4 | A7 | 58 |
| Next | 83 | F4 | A8 | 57 |
| Volume + | 83 | F4 | 82 | 7D |
| Volume - | 83 | F4 | 83 | 7C |
3D Support Timing
| HDMI 3D (BlueRay 3D with info frame) | ||||
|---|---|---|---|---|
| Signal | Resolution (dots) | Aspect Ratio | Refresh Rate (Hz) | Support |
| Frame Packing | ||||
| 1080p | 1920 x 1080 | 16:9 | 23.98/24 | Yes |
| 720p | 1280 x 720 | 16:9 | 50/59.94/60 | Yes |
| Side by Side | ||||
| 1080i | 1920 x 1080 | 16:9 | 50/59.94/60 | Yes |
| Top and Bottom | ||||
| 1080p | 1920 x 1080 | 16:9 | 23.98/24 | Yes |
| 720p | 1280 x 720 | 16:9 | 50/59.94/60 | Yes |
| 3D (HDMI/USB C) Manual Setting | ||||
| Signal | Resolution (dots) | Aspect Ratio | Refresh Rate (Hz) | Support |
| SVGA | 800 x 600 | 4:3 | 60*/120* | Yes |
| XGA | 1024 x 768 | 4:3 | 60*/120* | Yes |
| HD | 1280 x 720 | 16:9 | 60*/120* | Yes |
| WXGA | 1280 x 800 | 16:9 | 60*/120* | Yes |
| HDTV (1080p) | 1920 x 1080 | 16:9 | 60 | Yes |
| Note: * 60Hz signals are supported for side by side, top and bottom, and frame sequential. ** 120Hz signals are supported for frame sequential only. | ||||
