X10-4K Remote Control

    From ViewSonic User Guide Database

    Overview

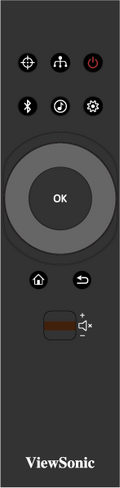

    Remote Control
    Button Icon Description
    Power X10 Power Icon.png Turns the projector On or Off.
    Source X10 Source Icon.png Displays the input source selection bar.
    Focus X10 Focus Icon.png Automatically focus the image.

    To manually adjust, press and hold the Focus button on the remote control for three (3) seconds.

    Setting X10 Setting Icon.png Displays the Settings menu.
    Audio Mode X10 Audio Icon.png Displays the speaker settings.
    Bluetooth X10 BT Icon.png View Bluetooth options.
    Up/Down/Left/Right X10 Wheel Icon.png Navigates and selects the desired menu items and makes adjustments.
    Shuttle Wheel Left/Right
    OK X10 Ok Icon.png Confirms the selection.
    Return X10 Return Icon.png Returns to the previous screen.
    Home X10 Home Icon.png Access the Home menu.
    Volume Control X10 Volume Icon.png Increases/decreases the volume level or mutes/unmutes it.

    Effective Range

    IR Receiver Location

    To ensure proper function of the remote control follow the steps below:

    1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).
    2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.)
    NOTE: Refer to the illustration for the location of the infrared (IR) remote control sensor(s).

    Replacing the Batteries

    1. Remove the battery cover from the bottom of the remote control by pressing the finger grip and sliding it across.
    2. Remove any existing batteries (if necessary) and install two AAA batteries.
    3. Replace the battery cover by aligning it with the base and pushing it back into position.
    X10 Remote Battery.png
    NOTE:
    • Avoid leaving the remote control and batteries in excessive heat or a humid environment.
    • Replace only with the same or equivalent type recommended by the battery manufacturer.
    • If the battery is drained or if you will not be using the remote control for an extended period of time, remove the battery to avoid damage to the remote control.
    • Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.
