Technical Specifications

Model No. P/N
VS17612 X10-4K
Item Category Specifications
Projector Type 0.47" 4K-UHD, LED
Display Size 30"~200"
Brightness 2,400 LED Lumens
Throw Distance 0.5~3.5m (100”±3%@1.77 m)
Lens F=1.8, f=8.5mm
Optical Zoom Fixed
Lamp Type RGBB LED
Light Source Life

(Normal)

up to 30,000 hours
Display Color 1.07 Billion Colors
Keystone -/+ 40 (Vertical)
Input Signal HDMI fh: 30K~97KHz, fv:24~85Hz
Resolution Native 3840 x 2160
Support VGA (640x480) to 4K (3840 x 2160)
Local Storage Total 16 GB
Available 12 GB
Input Audio-In (3.5 mm) 1
HDMI 2 (HDMI 2.0, HDCP 1.4/2.2)
SD Card Micro SD (Supports up to 64 GB, SDXC)
USB Type-C 1 (5V/2A)
USB Type-A 2 (USB 3.0 Reader x 1; USB 2.0 Reader x 1)
RJ45 Input 1
Wi-Fi Input 1 (5G)
Bluetooth Input 1 (BT 4.0/Audio-In)
Output Audio-Out (3.5 mm) 1
Audio-Out (Bluetooth) 1 (BT 4.0)
S/PDIF 1
Speaker 8W Cube x 2
USB Type-A (Power) 2 (USB 3.0, 5V/2A; USB 2.0, 5V/1.5A)
Power Adapter[1] Input Voltage AC 100-240V, 50/60 Hz (auto switch)
Operating Conditions Temperature 0°C to 40°C (32°F to 104°F)
Humidity 0% to 90% (non-condensing)
Dimensons Physical

(W x H x D)

261 x 271 x 166 mm

(10.3” x 10.7” x 6.5”)

Weight Physical 4.1 kg (9 lbs)
Power Saving Modes On 140W (Typical)
Off < 0.5W (Standby)
  1. Please use the power adapter from ViewSonic® or an authorized source only.

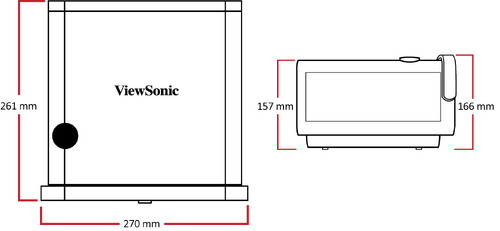

Projector Dimensions

261 mm (W) x 271 mm (H) x 166 mm(D)

X10-4K Dimensions.png

Timing Chart

HDMI/USB-C

Timing Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Dot Clock Frequency (MHz)
480i 720(1440) x 480 15.73 59.94 27
480p 720 x 480 31.47 59.94 27
576i 720(1440) x 576 15.63 50 27
576p 720 x 576 31.25 50 27
720/50p 1280 x 720 37.5 50 74.25
720/60p 1280 x 720 45 60 74.25
1080/24p 1920 x 1080 27 24 74.25
1080/25p 1920 x 1080 28.13 25 74.25
1080/30p 1920 x 1080 33.75 30 74.25
1080/50i 1920 x 1080 28.13 50 74.25
1080/60i 1920 x 1080 33.75 60 74.25
1080/50p 1920 x 1080 56.25 50 148.5
1080/60p 1920 x 1080 67.5 60 148.5
4K/24p 3840 x 2160 24
4K/25p 3840 x 2160 25
4K/30p 3840 x 2160 30
4K/50p 3840 x 2160 50
4K/60p 3840 x 2160 60

HDMI PC

Resolution Refresh Rate (Hz) Horizontal Frequency (KHz) Dot Clock Frequency (MHz)
640 x 480 59.94 31.469 25.175
72.809 37.861 31.5
75 37.5 31.5
85.008 43.269 36
720 x 400 70.087 31.469 28.3221
800 x 600 56.25 35.156 36
60.317 37.879 40
72.188 48.077 50
75 46.875 49.5
85.061 53.674 56.25
119.854 77.425 83
1024 x 768 60.004 48.363 65
70.069 56.476 75
75.029 60.023 78.75
84.997 68.667 94.5
1152 x 864 75 67.5 108
1280 x 768 60 47.396 68.25
74.893 60.289 102.25
84.837 68.633 117.5
1280 x 800 59.81 49.702 83.5
74.934 62.795 106.5
84.88 71.554 122.5
1280 x 960 60 60 108
85.002 85.938 148.5
1280 x 1024 60.02 63.981 108
75.025 79.976 135
85.024 91.146 157.5
1360 x 768 60.015 47.712 85.5
1400 x 1050 59.978 65.317 121.75
1440 x 900 60 55.469 88.75
74.984 70.635 136.75
84.842 80.43 157
1600 x 1200 60 75 162
1680 x 1050 59.954 65.29 146.25
1920 x 1200 59.95 74.038 154
640 x 480 @ 67Hz 66.667 35 30.24
832 x 624 @ 75Hz 74.546 49.722 57.28
1024 x 576 @ 60Hz 60 35.82 46.996
1024 x 768 @ 75Hz 75.02 60.241 80
1152 x 870 @ 75Hz 75.06 68.68 100

IR Control Table

Function Address Code Inverse
Byte 1 Byte 2 Byte 3 Byte 4
Power On/Off 83 F4 17 E8
Home 83 F4 16 E9
Focus 83 F4 92 6D
Source 83 F4 40 BF
Setting 83 F4 30 CF
Up 83 F4 0B F4
Down 83 F4 0C F3
Left 83 F4 0E F1
Right 83 F4 0F F0
OK 83 F4 15 EA
Bluetooth 83 F4 A2 5D
Return 83 F4 28 D7
Mute 83 F4 14 EB
Volume + 83 F4 82 7D
Volume - 83 F4 83 7C
Audio Mode 83 F4 9E 61

LED Indicators

Light Status and Description
Power Icon.png BT Icon.png
Power
Red Off Stand-by Mode
Green Off Powering Up
Green Off Normal Operation
Green Off Burn in Off (for Factory)
Bluetooth
Green Blue Flashing

1 time each second

Bluetooth connection in stand-by mode
Green Blue Flashing

2 times each second

Waiting for pairing
Green Blue Bluetooth Speaker or Audio-In
