X10-4K Introduction
Features
- Short throw lens design allows for a projected 100” screen size from only 1.77 meters away.
- Auto V. keystone to correct a distorted image automatically.
- Bluetooth speaker, Auto Focus, and Screen Mirroring features.
- USB-C for video transmission and power supply.
- Eye protection feature in the event objects get too close to the light source (50 cm or 100 cm).
- 16 GB internal storage (Max. 12 GB available for user storage).
- Various Color modes for different projection purposes.
- Multi-language On-Screen Display (OSD) menus.
Package Contents
X10-4K Projector
Remote Control
Quick Start Guide
Power Cord
USB-C Cable
HDMI Cable
Wi-Fi Dongle
Batteries
- NOTE: The power cord and video cables included in your package may vary depending on your country. Please contact your local reseller for more information.

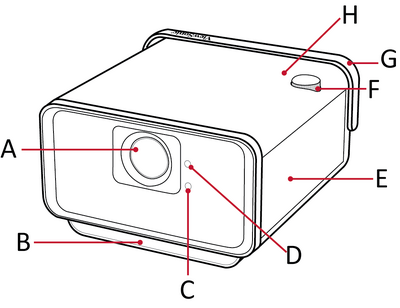

Projector Overview
| Letter | Item |
|---|---|
| A | Projection Lens |
| B | Eye Protection Sensor |
| C | IR Sensor |
| D | Auto Focus Camera |
| E | Speaker |
| F | Power Key & Volume Knob |
| G | Handle |
| H | LED Indicator |

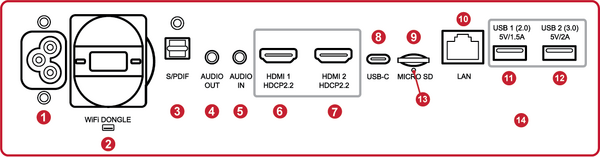

I/O Ports
| Number | Port | Description |
|---|---|---|
| 1 | AC Power Cord Inlet | AC Power Cord inlet |
| 2 | Wi-Fi Dongle | Wi-Fi dongle socket |
| 3 | S/PDIF | S/PDIF signal output socket |
| 4 | Audio Out (3.5 mm jack) | Audio signal output socket |
| 5 | Audio In (3.5 mm jack) | Audio signal input socket for Bluetooth mode |
| 6 | HDMI 1[1] | HDMI port[2] |
| 7 | HDMI 2[1] | HDMI port[2] |
| 8 | USB-C[3] | USB-C port |
| 9 | Micro SD | Micro SD socket (SDXC up to 64 GB - FAT32/NTFS) |
| 10 | LAN | RJ45 LAN port |
| 11 | USB 1 (5V/1.5A Out) | USB 2.0 Type A port (USB Reader - FAT32/NTFS) |
| 12 | USB 2 (5V/2A Out) | USB 3.0 Type A port (USB Reader - FAT32/NTFS) |
| 13 | Reset Button | Reset button for restarting the projector[4] |
| 14 | IR Sensor | IR Sensor for remote control |
- ↑ 1.0 1.1 Supports HDCP 2.0/HDMI 2.2.
- ↑ 2.0 2.1 iPhone/iPad users will need to buy an additional adapter. To avoid compatibility issues, please use Apple authorized accessories.
- ↑ Please use the supplied USB-C cable, and ensure your USB-C device can support video transmission.
- ↑ Insert a paper clip into the Reset button to restart the projector if the system freezes.
