X10-4K Initial Setup
Jump to navigation
Jump to search
Choosing a Location - Projector Orientation
Personal preference and room layout will decide the installation location. Consider the following:
- Size and position of your screen.
- Location of a suitable power outlet.
- Location and distance between the projector and other equipment.
Location | Description |
---|---|
Front Table | The projector is placed near the floor in front of the screen. |
Front Ceiling | The projector is suspended upside-down from the ceiling in front of the screen. |
Rear Table[1] | The projector is placed near the floor behind the screen. |
Rear Ceiling[1] | The projector is suspended upside-down from the ceiling behind the screen. |
Projection Dimensions
- NOTE: (e) = Screen | (f) = Center of Lens
16:9 Image on a 16:9 Screen
(a) Screen Size | (b) Projection Distance | (c) Image Height | Image Width | ||||||
---|---|---|---|---|---|---|---|---|---|
Minimum | Maximum | ||||||||
in. | cm | in. | m | in. | m | in. | cm | in. | mm |
30 | 76.2 | 20.9 | 0.53 | 20.9 | 0.53 | 14.7 | 37.36 | 26.15 | 664 |
40 | 101.6 | 27.9 | 0.71 | 27.9 | 0.71 | 19.6 | 49.81 | 34.86 | 886 |
50 | 127 | 34.8 | 0.88 | 34.8 | 0.88 | 24.5 | 62.26 | 43.58 | 1107 |
60 | 152.4 | 41.8 | 1.06 | 41.8 | 1.06 | 29.4 | 74.72 | 52.29 | 1328 |
70 | 177.8 | 48.8 | 1.24 | 48.8 | 1.24 | 34.3 | 87.17 | 61.01 | 1550 |
80 | 203.2 | 55.7 | 1.42 | 55.7 | 1.42 | 39.2 | 99.62 | 69.73 | 1771 |
90 | 228.6 | 62.7 | 1.59 | 62.7 | 1.59 | 44.1 | 112.07 | 78.44 | 1992 |
100 | 254 | 69.7 | 1.77 | 69.7 | 1.77 | 49 | 124.53 | 87.16 | 2214 |
110 | 279.4 | 76.7 | 1.95 | 76.7 | 1.95 | 53.9 | 136.98 | 95.87 | 2435 |
120 | 304.8 | 83.6 | 2.12 | 83.6 | 2.12 | 58.8 | 149.43 | 104.59 | 2657 |
130 | 330.2 | 90.6 | 2.3 | 90.6 | 2.3 | 63.7 | 161.88 | 113.3 | 2878 |
140 | 355.6 | 97.6 | 2.48 | 97.6 | 2.48 | 68.6 | 174.34 | 122.02 | 3099 |
150 | 381 | 104.5 | 2.66 | 104.5 | 2.66 | 73.5 | 186.79 | 130.74 | 3321 |
160 | 406.4 | 111.5 | 2.83 | 111.5 | 2.83 | 78.4 | 199.24 | 139.45 | 3542 |
200 | 508 | 139.4 | 3.54 | 139.4 | 3.54 | 98.1 | 249.05 | 174.32 | 4428 |
There is a 3% tolerance among these numbers due to optical component variations. It is recommended to physically test the projection size and distance before permanently installing the projector.

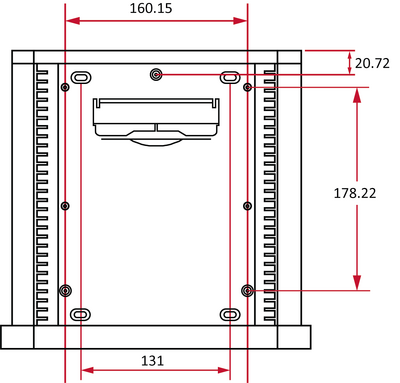

Mounting the Projector
- NOTE: If you buy a third party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate.
- To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount.
- Ensure the screws used to attach the mount to the projector meet the following specifications:
- Screw type: M4 x 8
- Maximum Screw Length: 8 mm
CAUTION
- Avoid installing the projector near a heat source.
- Keep at least a 10 cm (3.9 in.) gap between the ceiling and the bottom of the projector.
