    Connecting to Power

    DC Power (Power Outlet)

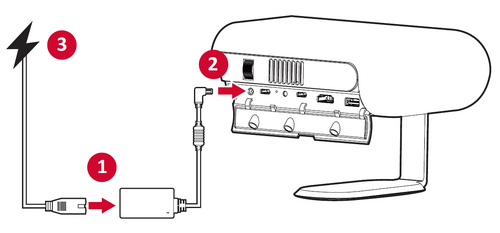

    M1 Pro DC Power Connect.png
    1. Connect the power cord to the power adapter.
    2. Connect the power adapter to the DC IN jack at the side of the projector.
    3. Connect the power cord plug to a power outlet. When connected, the status LED will turn red.
    NOTE: Charge the projector for two (2) hours via the power adapter before using it in battery mode for the first time.

    IMPORTANT

    • Use only the bundled power adapter to change the battery pack and supply power to your LED projector.
    • Ensure that your LED projector is connected to the power adapter before turning it on for the first time. We strongly recommend that you use a grounded wall socket while using your LED projector in power adapter mode.
    • The socket outlet must be easily accessible and near your LED projector.
    • To disconnect your LED projector from its main power supply, unplug your LED projector from the power socket.

    Power On by Power Bank Function

    The projector can be powered by a power bank.

    M1 Pro Power Bank.png

    To power the projector:

    1. Connect one end of the USB Type C cable to the USB-C port of the projector.
    2. Connect the other end of the USB Type C cable to the power bank.
    NOTE:
    • The power bank should be 45W (15V/3A) at least, and support Power Delivery (PD) protocol output. Additionally, at 15V/3A the projector can be powered on and charge simultaneously.
    • Due to the IC protection mechanism, the USB-C charging function may stop briefly then continue later on.

    Using the Battery

    The battery level icon will show at the top right of the Home Screen. As the battery’s power level runs low, the screen will show a “low battery message”.

    Battery Usage Time Information

    Charging About 2 hours (Power Off)
    Usage Hours up to 4.4 hours (Battery Saving)
    up to 2 hours (Eco)
    up to 1.3 hours (Full)
    Battery Level Indicator (Charging) During Charging: Flashing White LED light
    Full Charge: Solid White LED light

    Connecting to External Devices

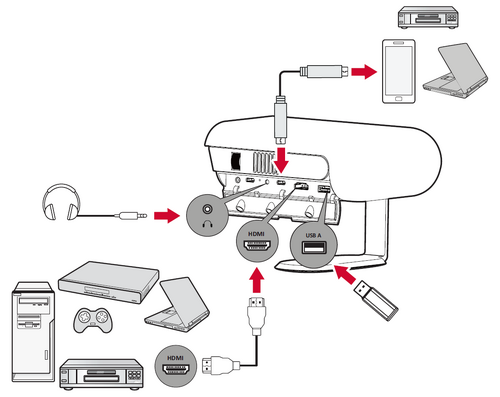

    M1 Pro External Connections.png

    HDMI Connection

    Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI port (supports HDCP 1.4/HDMI 1.4) of your projector.

    USB Connection

    USB Type A Connection
    To enjoy photos, music, and movies, simply plug in a USB flash drive to the USB Type A port.

    USB Type C Connection
    Connect one end of a USB Type C cable to the USB-C port of your device. Then connect the other end of the cable to the USB-C port of your projector.

    NOTE:
    • Ensure your USB Type C device can support video transmission.
    • The connected device can also be charged (5V/2A).

    Audio Connection

    You can connect to various external sound delivery devices via the Audio Out port.

    Wireless Screen Mirroring

    Please see Wireless Screen Mirroring

    Bluetooth Connection

    Bluetooth Speaker

    The projector is equipped with Bluetooth that allows the user to connect the projector to their Bluetooth device wirelessly for audio playback.

    To connect and pair your device:

    1. Go to: Home > Bluetooth.
    2. Use the Left and Right directional buttons on the remote control to select Bluetooth Speaker or Bluetooth Pairing. Then press OK on the remote control.

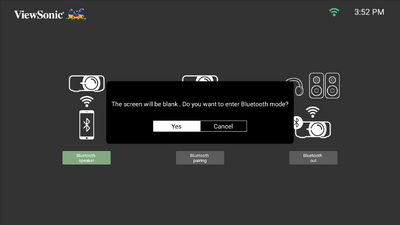

    3. When the dialogue box appears, select Yes and press OK on the remote control to enter Bluetooth mode.
    4. A sound effect will be audible upon entering pairing mode.
    5. Upon successful connection, another sound effect will be audible.
    NOTE:
    • The projector’s name will be labeled as “M1-Pro”.
    • Only the Power and Return buttons can exit Bluetooth mode.

    Bluetooth Out

    Connect the projector to external headphones or speakers that support Bluetooth.

    To connect and pair your device:

    1. Go to: Home > Bluetooth.

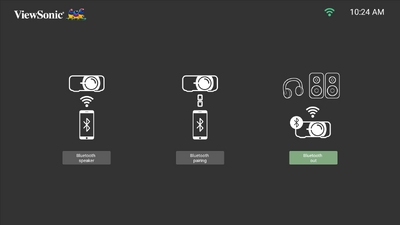

    2. Use the Left and Right directional buttons on the remote control to select the Bluetooth Out option.

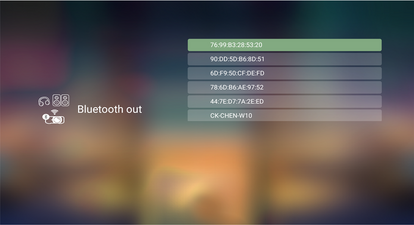

    3. The projector will search for nearby Bluetooth devices. Select your device from the list and press OK on the remote control.
    NOTE: Once paired, if both the projector and your device are powered on they will automatically connect via Bluetooth.

    Connecting to Networks

    Wi-Fi Connection

    To connect to a Wi-Fi network:

    1. Go to: Home > Setting > Network Settings > Wi-Fi
    2. Press Left or Right on the remote control to select Enable.
    3. Available Wi-Fi networks will then be displayed. Select one of the available Wi-Fi networks.
    4. If you connect to a secure Wi-Fi network, you must enter the password when prompted.


    Custom SSID

    1. Go to: Home > Setting > Network Settings > Wi-Fi
    2. Press Left or Right on the remote control to select Enable.
    3. From the available Wi-Fi networks list select Others and press OK on the remote control.
    4. Enter the SSID and select the security level.
    5. Enter the password when prompted.
