LX700-4K Remote Control

    From ViewSonic User Guide Database

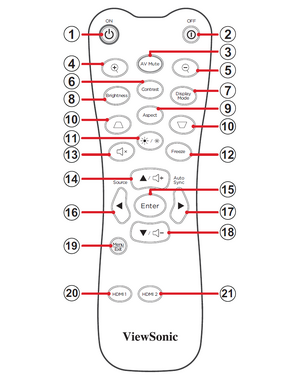

    Remote Control
    Number Button Description
    1 Power ON Turns the projector ON
    2 Power OFF Turns the projector OFF
    3 AV Mute Hides the screen picture and volume mute.
    4 Zoom In Increases the projected image size.
    5 Zoom Out Reduces the projected image size.
    6 Contrast Displays the contrast selection bar.
    7 Display Mode Displays the display mode selection bar.
    8 Brightness Displays the brightness selection bar.
    9 Aspect Displays the aspect ratio selection bar.
    10 Keystone Manually correct distorted images.
    11 Brightness Mode Displays the brightness mode selection bar.
    12 Freeze Freeze the projected image.
    13 Mute Mute/unmute.
    14 ▲/Volume Increase
    • Navigate upwards.
    • Increase the volume level.
    15 Enter Confirms the selection.
    16 ◄/Source
    • Navigate to the left.
    • Displays the input source selection bar.
    17 ►/Auto Sync
    • Navigate to the right.
    • Automatically determines the best picture timings for the displayed image.
    18 ▼/Volume Decrease
    • Navigate downwards.
    • Decrease the volume level.
    19 Menu/Exit
    • Turns the On-Screen Display (OSD) Menu On or Off.
    • Go back to a previous OSD Menu.
    • Exit and Save menu settings.
    20 HDMI 1 Select the HDMI 1 input source.
    21 HDMI 2 Select the HDMI 2 input source.

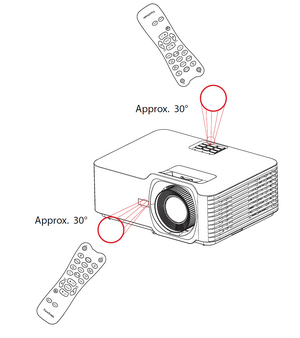

    Remote Control - Receiver Range

    IR Receiver Location

    To ensure proper function of the remote control follow the steps below:

    1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).
    2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.).
    3. NOTE: Refer to the illustration for the location of the infrared (IR) remote control sensor(s).

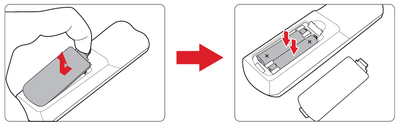

    Replacing the Batteries

    1. Remove the battery cover from the bottom of the remote control by pressing the finger grip and sliding it across.
    2. Remove any existing batteries (if necessary) and install two AAA batteries.
    3. NOTE: Observe the battery’s polarities as indicated.
    4. Replace the battery cover by aligning it with the base and pushing it back into position.
    5. Replacing the Batteries
      • Avoid leaving the remote control and batteries in excessive heat or a humid environment.
      • Replace only with the same or equivalent type recommended by the battery manufacturer.
      • If the battery is drained or if you will not be using the remote control for an extended period of time, remove the battery to avoid damage to the remote control.
      • Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.
