LX700-4K Introduction

    From ViewSonic User Guide Database

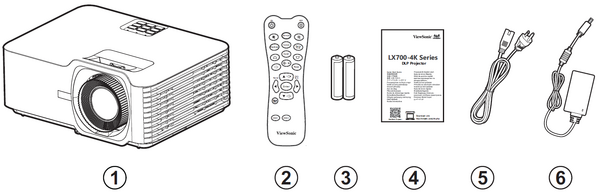

    Package Contents

    Package Contents
    Number Description
    1 Projector
    2 Remote Control
    3 Batteries
    4 Quick Start Guide
    5 Power Cord
    6 Power Adapter

    Projector Overview

    Projector Overview
    Number Description
    1 Keypad
    2 Focus Ring
    3 Zoom Ring
    4 Front IR
    5 Top IR
    6 DC IN
    7 Lens
    8 I/O Ports
    9 Vent (inlet)
    10 Vent (outlet)
    11 Lens Shift
    NOTE: Do not block projector intake and exhaust vents.

    I/O Ports

    I/O Ports
    Number Port Description
    1 HDMI 1[1] HDIM port.
    2 HDMI 2[1] HDMI port[2].
    3 RS-232 RS-232 control port.
    4 USB (5V/1.5A Out)


    USB Type A port for power and service.
    5 12V Trigger 12V DC output terminal (500mA Out).
    6 AUDIO OUT Audio signal output socket.
    7 DC IN DC IN socket.
    1. 1.0 1.1 Supports HDCP 2.2
    2. Supports eARC.

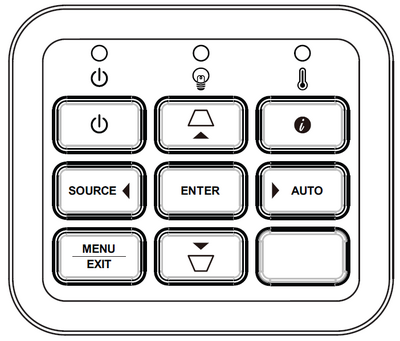

    Keypad Overview
    Icon Button Description
    Power Power Toggles the projector between standby mode and Power On.
    Keystone Keystone Manually corrects distorted images resulting from an angled projection.
    Navigation Navigation Selects the desired menu items and makes adjustments when the On-Screen Display (OSD) Menu is activated.
    Menu/Exit Menu/Exit Opens/exits the On-Screen Display (OSD) Menu.
    Source Source Displays the input source selection bar.
    Information Information Displays the INFORMATION menu.
    Enter Enter Enacts the selected On-Screen Display (OSD) Menu item when the OSD Menu is activated.
    Auto Auto Automatically determines the best picture timings for the displayed image.

    Indicator Lights

    Indicator Light Description
    Power Indicator Power indicator light
    Light Source Indicator Light Source indicator light
    Temperature Indicator Temperature indicator light
