LX700-4K Initial Setup

Choosing a Location - Projector Orientation

Personal preference and room layout will decide the installation location. Consider the following:

The projector is designed to be installed in one of the following locations:

Location	Description
Desk Front	The projector is placed near the floor in front of the screen.
Ceiling Front	The projector is suspended upside-down from the ceiling in front of the screen.
Desk Rear^[1]	The projector is placed near the floor behind the screen.
Ceiling Rear^[1]	The projector is suspended upside-down from the ceiling behind the screen.

Projection Dimensions

NOTE: (e) = Screen | (f) = Center of Lens

(a) Screen Size		(b) Projection Distance				(c) Image Height		(d) Vertical Offset
(a) Screen Size		min.		max.		(c) Image Height		(d) Vertical Offset
in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
30	762	27.72	704	37.91	963	14.71	374	2.74	69
40	1016	36.95	939	50.55	1284	19.61	498	3.65	93
50	1270	46.19	1173	63.19	1605	24.51	623	4.56	116
60	1524	55.43	1408	75.83	1926	29.42	747	5.47	139
70	1778	64.67	1643	88.46	2247	34.32	872	6.38	162
80	2032	73.91	1877	101.10	2568	39.22	996	7.30	185
90	2286	83.15	2112	113.74	2889	44.12	1121	8.21	208
100	2540	92.39	2347	126.38	3210	49.03	1245	9.12	232
110	2794	101.63	2581	139.02	3531	53.93	1370	10.03	255
120	3048	110.86	2816	151.65	3852	58.83	1494	10.94	278
130	3302	120.10	3051	164.29	4173	63.73	1619	11.85	301
140	3556	129.34	3285	176.93	4494	68.64	1743	12.77	324
150	3810	138.58	3520	189.57	4815	73.54	1868	13.68	347
200	5080	184.77	4693	252.76	6420	98.05	2491	18.24	463
250	6350	230.97	5867	315.95	8025	122.57	3113	22.80	579
300	7620	277.16	7040	379.14	9630	147.08	3736	27.36	695

NOTE:

These figures are for reference purposes only. Please refer to the actual projector for the precise dimensions.
It is recommended that if you intend to permanently install the projector to physically test the projection size and distance using the actual projector before you permanently install it.

NOTE: (e) = Screen | (f) = Center of Lens

(a) Screen Size		(b) Projection Distance				(c) Image Height		(d) Vertical Offset
(a) Screen Size		min.		max.		(c) Image Height		(d) Vertical Offset
in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
30	762	25.44	646	34.80	884	13.50	343	2.51	64
40	1016	33.92	862	46.40	1179	80.00	457	3.35	85
50	1270	42.40	1077	58.00	1473	22.50	572	4.19	106
60	1524	50.88	1292	69.60	1768	27.00	686	5.02	128
70	1778	59.36	1508	81.20	2062	31.50	800	5.86	149
80	2032	67.84	1723	92.80	2357	36.00	914	6.70	170
90	2286	76.32	1939	104.40	2652	40.50	1029	7.53	191
100	2540	84.40	2154	116.00	2946	45.00	1143	8.37	213
110	2794	93.28	2369	127.60	3241	49.50	1257	9.21	234
120	3048	101.76	2585	139.20	3536	54.00	1372	10.04	255
130	3302	110.24	2800	150.80	3830	58.50	1486	10.88	276
140	3556	118.72	3015	162.40	4125	63.00	1600	11.72	298
150	3810	127.20	3231	174.00	4420	67.50	1715	12.56	319
200	5080	169.60	4308	232.00	5893	90.00	2286	16.74	425
250	6350	212.00	5385	290.00	7366	112.50	2858	20.93	531
300	7620	254.40	6462	348.00	8839	135.00	3429	25.11	638

NOTE:

These figures are for reference purposes only. Please refer to the actual projector for the precise dimensions.
It is recommended that if you intend to permanently install the projector to physically test the projection size and distance using the actual projector before you permanently install it.

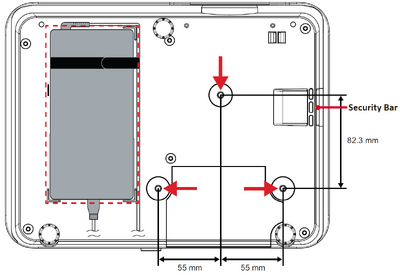

NOTE: If you buy a third party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate.

To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount.
Ensure the screws used to attach the mount to the projector meet the following specifications:

CAUTION

Avoid installing the projector near a heat source or air conditioner.
Keep at least a 10 cm (3.9 in.) gap between the ceiling and the bottom of the projector.

To help prevent the projector from being stolen, use a security slot locking device to secure the projector to a fixed object.
