LX700-4K Connecting Power and Devices

Connecting to Power

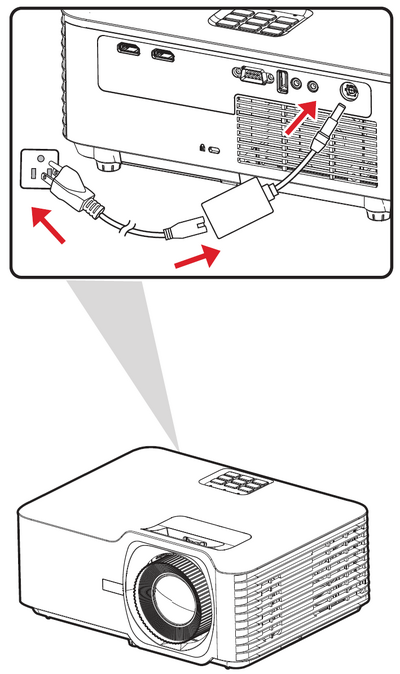

Connect the power cord to the power adapter. Connect the power adapter to the DC IN jack at the rear of the projector. Plug the power cord into a power outlet.

NOTE: When installing the projector, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible outlet near the unit. If a fault should occur during operation of the projector, use the disconnect device to switch off the power supply, or disconnect the power plug.

Connecting to External Devices

HDMI Connection

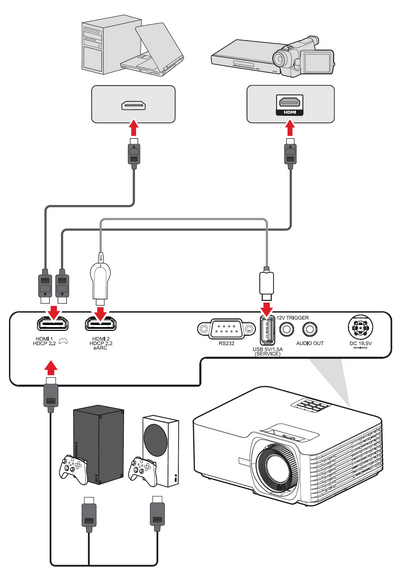

Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI 1/2 port (each support HDMI 2.0/HDCP 2.2) of your projector.

NOTE: The HDMI 2 port supports eARC.

Audio Connection

You can connect to various external sound delivery devices via the AUDIO OUT and HDMI 2 ports.

NOTE: The HDMI 2 port supports eARC. It can deliver sound to external devices when connected.

USB Connection

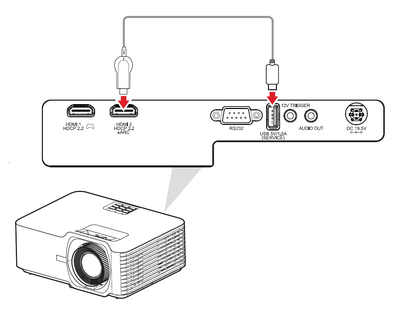

USB Type A Connection

The USB port is for supplying power (e.g., dongles) and service needs.

NOTE: The USB port does not supply power when the projector is in standby mode.

RS-232 Connection

When you use a RS-232 serial port cable to connect the projector to an external computer certain functions can be controlled remotely by the PC, including Power On/Off, Volume adjustment, Input select, Brightness, and more.
