LDM163-181 Remote Control

    From ViewSonic User Guide Database

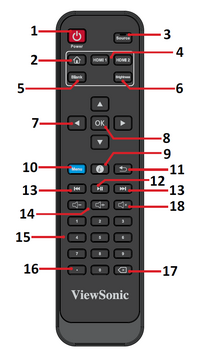

    Remote Control Overview

    Remote Control
    Number Description
    1 Power On/Off
    2 Back to Home Screen
    3 Input source selection
    4 Change to HDMI 1/2 input source
    5 Switch to a blank, black screen
    6 Adjust the brightness level
    7 Directional buttons
    8 Confirm the selection
    9 Enter the Information page
    10 Enter the Settings menu
    11 Return to previous
    12 Play/Pause content
    13 Move content forwards/backwards
    14 Increase/decrease the volume level
    15 Numeric input buttons
    16 Input key for a dot (.)
    17 Delete key for text input
    18 Mute/Unmute

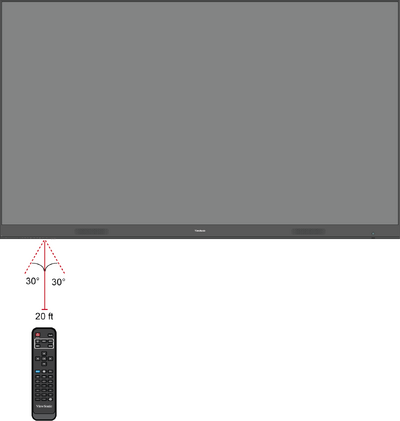

    Remote Control Receiver Range

    The operating range of the remote control is shown here. It has an effective range of 20 feet (6 meters), 30° degrees left and right. Ensure there is nothing obstructing the remote control’s signal to the receiver.

    Direct View Remote Range.png

    Inserting Remote Control Batteries

    The remote control is powered by two 1.5v "AAA" batteries.

    To insert batteries into the remote control:

    1. Remove the cover on the rear of the remote control.
    2. Insert two “AAA” batteries, ensuring the “+” symbol on the battery matches the “+” on the battery post.
    3. Replace the cover by aligning it with the slot on the remote control and snapping the latch shut.
    Warning: There is a risk of explosion if batteries are installed with incorrect polarity.
    NOTE:
    • It is recommended that you do not mix battery types.
    • Avoid exposure to heat or steam.
    • Do not allow water or other liquids to splash on the remote control. If the remote control becomes wet, wipe it dry immediately.
    • Always dispose of old batteries in an environmentally friendly way. Contact your local government for more information on how to dispose of batteries safely.
    Locking the Remote Control
    When the administrator does not want others to control the remote control, it can be locked by pressing 1169+OK on the remote control.
