LDM163-181 On-Screen Display Menu

    From ViewSonic User Guide Database

    On-Screen Display (OSD) Menu Operation

    Use the On-Screen Display (OSD) Menu to adjust various settings.

    NOTE: The OSD Menu is only available when there is an input source, e.g. HDMI.

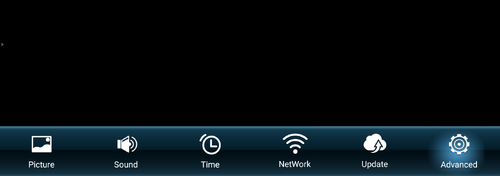

    LD163-181 OSD Menu.png

    To open and operate the OSD Menu:

    1. Press the MENU button on the remote control.
    2. Press ▼/▲/◄/► on the remote control to select menu items or adjust values.
    3. Press OK to confirm your selection.
    4. Press the RETURN button to go back to the previous menu level.
    5. Press the MENU button to exit the OSD Menu.

    On-Screen Display (OSD) Menu Tree


    Sub-menu Menu Option
    Picture Mode Mode Standard
    Vivid
    Soft
    User
    Brightness (-/+, 0~100)
    Advanced Color Temp Standard
    Cool
    Warm
    Noise Reduction Off
    Low
    Middle
    High
    PC Mode PC
    Video
    Auto
    Picture Reset

    Sound

    Sub-menu Menu Option
    Sound Mode Sound Mode Standard
    News
    Music
    Movie
    Sports
    User
    EQ_120Hz (-/+, 0~100)
    EQ_500Hz (-/+, 0~100)
    EQ_1.5KHz (-/+, 0~100)
    EQ_5KHz (-/+, 0~100)
    EQ_10KHz (-/+, 0~100)
    Advanced Balance (-/+, -50~50)
    Audio Reset

    Time

    Sub-menu Menu Option
    Time Setup Time Setting Date Picker
    Shutdown Time Repeat Off
    Once
    Every day
    Work day
    Time
    Power ON Time Repeat Off
    Once
    Every day
    Work day
    Time
    Source HDMI 1
    HDMI 2
    Sleep Timer Off/1/10/20/30/60/90/120/180/240 min
    Power Saving Off/1/3/5/10 min
    Time Sync Network Time
    Off
    Time Zone Shanghai Ulaanbaatar
    Calcutta Damascus
    Harare Sydney
    Karachi Paris
    Brazzaville Rome
    Beirut London
    Jerusalem Dubai
    Tehran Tokyo
    Baghdad US-PT

    NetWork

    Sub-menu Menu Option
    Ethernet Setting Ethernet Switch Off
    On
    Connection Mode DHCP IP
    Static IP
    Network Status
    WiFi Setting WiFi Switch Off
    On
    WiFi List Scan WiFi List
    Add WiFi network
    Network Status

    Update

    Sub-menu Menu Option
    Local Update SD Card

    Advanced

    Sub-menu Menu Option
    Language Menu Language English
    Français
    Español
    Deutsch
    Русский
    Dutch
    繁體中文
    简体中文
    Turkish
    Arabic
    Restore Restore Setting
    Restore Default
    About System CPU
    GPU
    Memory
    Device Space
    OS Version
    Software Version

    On-Screen Display (OSD) Menu Options

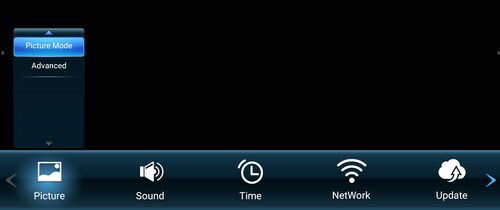

    LD163-181 Picture Menu.jpg
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Picture menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    NOTE: Some sub-menu options may have another sub-menu layer.
    Menu Option Description
    Picture Mode
    LD163-181 Picture Picture Mode.jpg

    Standard
    For normal indoor ambient light intensity.

    Vivid
    Higher brightness level. For bright, indoor areas.

    Soft
    For dark environments. Lower brightness level.

    User
    Custom user setting.

    Brightness
    Adjust the black levels of the screen image.

    Advanced
    LD163-181 Picture Advanced.jpg

    Color Temp

    • Standard: Default standard.
    • Cool: Set the color temperature to 7500K.
    • Warm: Set the color temperature to 5000K.

    Noise Reduction
    Reduce image noise and distortion. Not available for HDMI input.

    PC Mode

    • Auto: Automatically detect input source.
    • PC: Set the input source to PC.
    • Video: Set the input source to Video.

    Picture Reset
    Restore the settings to default.

    Sound

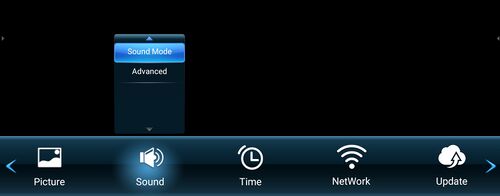

    LD163-181 Sound Menu.jpg
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Sound menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    NOTE: Some sub-menu options may have another sub-menu layer.
    Menu Option Description
    Sound Mode
    LD163-181 Sound Sound Mode.jpg

    Standard
    Balanced sound quality and effects. Ensures a natural sound presentation.

    News
    Reduce the bass and treble, improve voice clarity.

    Music
    Vibrant treble and stronger bass.

    Movie
    Enhance the sense of space.

    Sports
    Enhanced focus on dialogue and speech.

    User
    Customize the audio equalizer.

    Advanced

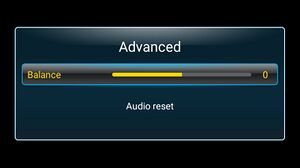

    LD163-181 Sound Advanced.jpg

    Balance
    Adjust the audio balance from -50~50.

    Audio Reset
    Restore the settings to default.

    Time

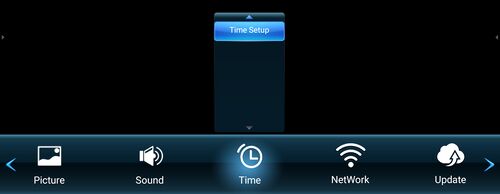

    LD163-181 Time Menu.jpg
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Time menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    NOTE: Some sub-menu options may have another sub-menu layer.
    Menu Option Description

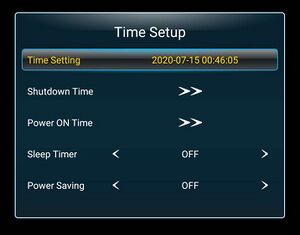

    Time Setting
    LD163-181 Time Time Setting.jpg

    Set the time and date.

    Shutdown Time
    LD163-181 Time Shutdown Time.jpg

    Schedule a shutdown time and frequency.

    Power ON Time

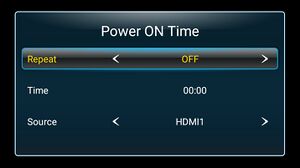

    LD163-181 Time Power On Time.jpg

    Schedule a power on time and frequency, and tie to the input source.

    Sleep Timer

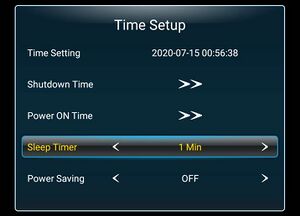

    LD163-181 Time Sleep Timer.jpg

    Set a specific time for the display to enter stand-by mode.

    Power Saving
    LD163-181 Time Power Saving.jpg

    Set a specific time for the display to enter stand-by mode after no input source is detected.

    Time Sync
    LD163-181 Time Time Sync.jpg

    Toggle network synchronization On or Off.

    Time Zone
    LD163-181 Time Time Zone.jpg

    Select the appropriate time zone for your area.

    NetWork

    LD163-181 Network Menu.jpg
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the NetWork menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    NOTE: Some sub-menu options may have another sub-menu layer.
    Menu Option Description
    Ethernet Setting
    LD163-181 Network Ethernet Setting.jpg

    Ethernet Switch
    Toggle the wired network connection On or Off.

    Connection Mode
    Select the network connection method, DHCP IP or Static IP.

    LD163-181 Network Static IP.jpg
    NOTE: If Manual IP is selected, you need to configure the IP, Netmask, Gateway, and DNS.

    Network Status
    View the network connection status.

    WiFi Setting
    LD163-181 Network WiFi Setting.jpg

    WiFi Switch
    Toggle the WiFi connection On or Off.

    WiFi List
    View the available Wi-Fi networks, or add manually.

    Network Status
    View the network connection status.
    LD163-181 Network WiFi Status.jpg

    Update

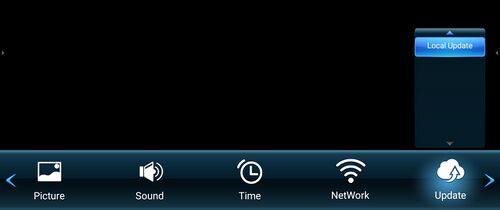

    LD163-181 Update Menu.jpg
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Update menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-men.
    Menu Option Description
    Local Update Update the display by using the update file on an SD Card or USB flash drive.

    Advanced

    LD163-181 Advanced Menu.jpg
    1. Press MENU on the remote control to display the OSD Menu.
    2. Then press OK or use ▼/▲/◄/► on the remote control to select the Advanced menu.
    3. Press ▼/▲ to select the menu option. Then press OK to display its sub-menu, or press ◄/► to adjust/select the setting.
    NOTE: Some sub-menu options may have another sub-menu layer.
    Menu Option Description
    Language
    LD163-181 Advanced Language.jpg

    Menu Language
    Set the OSD Menu language.

    Restore

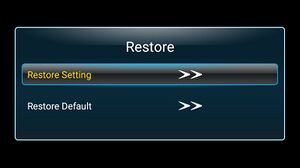

    LD163-181 Advanced Restore.jpg

    Restore Setting
    Reset the OSD settings.

    Restore Default
    Restore to factory default settings.

    Note: All settings will be reset to default, including any additional APPs installed by the user.
    About System
    LD163-181 Advanced About System.jpg

    View system information such as: CPU core count, GPU core count, Memory used, Storage Space remaining, OS version, and Software version.
