LDM163-181 Introduction

    From ViewSonic User Guide Database

    Package Contents

    Item Quantity Note
    Cabinet Sections
    LD163-181 Cabinet Sections.svg
    6 sections total One (1) left, four (4) Middle, and one (1) Right.
    System Control Box
    (Left and Right sides)
    LD163-181 System Control Box.svg
    2 sides
    Quick Start Guide
    LD163-181 QSG.png
    1
    LED Modules
    LD163-181 LED Modules.svg
    144 modules The quantity of spare LED modules will vary by country.
    Remote Control
    Direct View Remote Control No Number Update.png
    1
    Screws
    LD163-181 Screws.svg
    20 x M6x10mm (1)
    32 x M6x50mm Expansion (2)
    32 x TA6x30mm (3)
    24 x M6x16mm (4)
    15 x KM3x6mm (5)
    Hex Tool
    LD163-181 Hex Tool.svg
    1
    System Control Box Covers
    (Left, Middle, and Right sides)
    LD163-181 Box Covers.svg
    3
    Wall Mounting Brackets
    LD163-181 Wall Mount Brackets.svg
    4
    Vacuum Suction Tool
    LD163-181 Vacuum Tool.svg
    1
    Anti-Static Glove
    LD163-181 Gloves.svg
    2 pairs
    USB-A to USB-B Cable (5m)
    LD163-181 USB Cable.svg
    1

    NOTE:
    • This product is packed in an air transport box.
    • Due to the size and weight, it is recommended that two or more people handle it.
    • The base stand is an optional accessory and will be sold separately.

    Product Overview

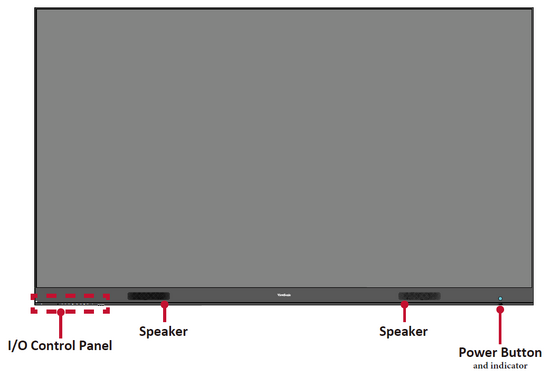

    Front Panel

    LD163-181 Front Overview.png

    Rear Panel

    LD163-181 Rear Overview.png

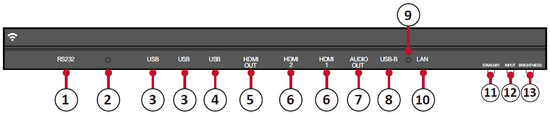

    I/O Control Panel

    LD163-181 IO.png
    Number Port Description
    1 RS-232 Serial control port.
    2 Ambient Light Sensor Detects ambient light and adjusts brightness levels automatically.
    3 USB 2.0 USB Reader (5V/0.5A)
    4 USB 3.0 USB Reader (5V/1A)
    5 HDMI Out Extend content out to another display device.
    6 HDMI In High definition input; connect to PC with HDMI output, set-top box, or other video device.
    7 Audio Out Audio output to an external speaker.
    8 USB-B Maintenance port for external PC connection.
    9 IR Receiver Receiver for the Remote Control.
    10 LAN Standard RJ45 (10M/100M/1000M) Internet connection interface.
    11 Stand-by Press to enter Stand-by mode.
    12 Input Select Press to cycle through available input sources.
    13 Brightness Press to cycle through brightness levels.
    Locking the Control Panel
    When the administrator does not want others to use the control panel, it can be locked by pressing 1168+OK on the remote control.
