LDM163-181 Connecting Devices

    From ViewSonic User Guide Database

    Connecting to External Devices

    HDMI IN Connection

    Media Player Connection

    Connect an HDMI cable from your external device to an HDMI IN port on the LED display.

    LD163-181 Connect Media Player.png

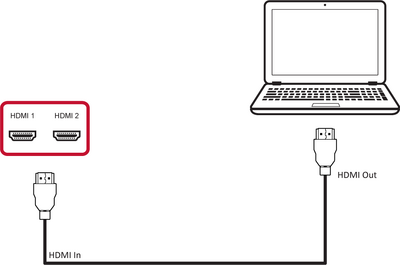

    PC Connection

    Connect an HDMI cable from your PC to an HDMI IN port on the LED display.

    LD163-181 Connect HDMI PC.png

    Audio Connection

    Connect an audio cable from your external audio device to the Audio Out port on the LED display.

    LD163-181 Connect Audio.png

    Video Output Connection

    To output video via an external display device, connect an HDMI cable to the HDMI IN port of your external display device, and the other end to the HDMI OUT port of your LED display.

    LD163-181 Connect HDMI Out.png

    USB and Networking Connections

    Just like any PC, it is easy to connect various USB devices and other peripherals to your LED display.

    USB (Type A/Type B)

    • USB Type A
    Plug the USB device, cable, or storage drive into the USB Type A port.
    LD163-181 Connect USBA.png

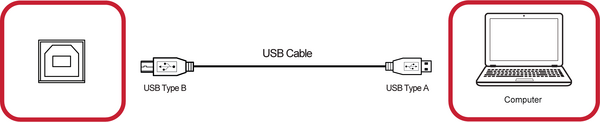

    • USB Type B
    Connect your PC with the LED display for debugging purposes via the USB Type B port on the LED display.
    LD163-181 Connect USBB.png

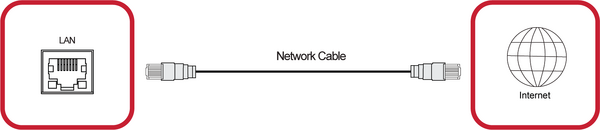

    Networking and Modem Cables

    Plug the network cable into the LAN port.

    LD163-181 Connect LAN.png

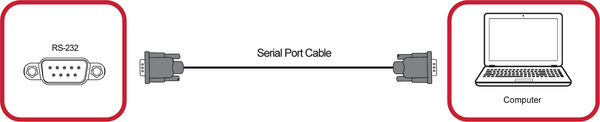

    RS-232 Connection

    When you use a RS-232 serial cable to connect your LED display to an external computer and control system certain functions can be controlled remotely such as: Power On/Off, Volume adjustment, Input select, Brightness, and more.

    LD163-181 Connect RS232.png
