IFP110 Connecting Devices

    From ViewSonic User Guide Database

    Connecting to Power

    Connecting to Power

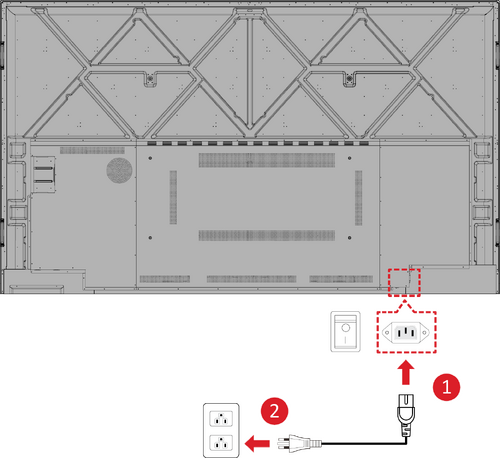

    1. Connect the power cord to the AC IN jack at the rear of the device.
    2. Plug the power cord plug into a power outlet.

    Connecting External Devices and Touch Connection

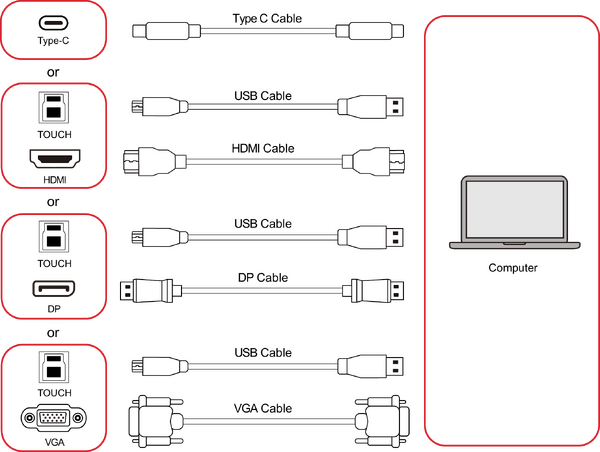

    Connecting External Devices

    USB Type C Connection

    To connect via Type C:
    Connect a Type C cable from your external device to a Type C port on the ViewBoard.

    HDMI Connection

    To connect via HDMI:

    1. Connect an HDMI cable from your external device to the FRONT HDMI/HDMI 1/HDMI 2 port on the ViewBoard.
    2. Connect a USB Type B to A to the external device from the appropriate TOUCH port of the ViewBoard.
    3. Note: The TOUCH 1 port is for the HDMI 1 and DP ports. The TOUCH 2 port is for the HDMI 2 and VGA ports. The TOUCH 3 port is for the FRONT HDMI port.

    DisplayPort Connection

    To connect via DisplayPort:

    1. Connect a DisplayPort cable from your external device to the DP port on the ViewBoard.
    2. Connect a USB Type B to A cable to the external device from the TOUCH 1 port of the ViewBoard.
    3. Note: The TOUCH 1 port is for the HDMI 1 and DP ports. The TOUCH 2 port is for the HDMI 2 and VGA ports. The TOUCH 3 port is for the FRONT HDMI port.

    VGA Connection

    To connect via VGA:

    1. Connect a VGA cable from your external device to the VGA port on the ViewBoard.
    2. Connect a USB Type B to A to the external device from the TOUCH 2 port of the ViewBoard.
    3. Note: The TOUCH 1 port is for the HDMI 1 and DP ports. The TOUCH 2 port is for the HDMI 2 and VGA ports. The TOUCH 3 port is for the FRONT HDMI port.

    RS-232 Connection

    RS-232 Connection

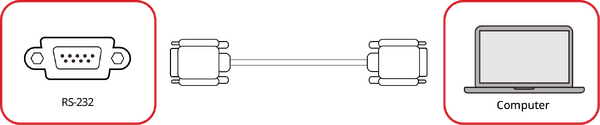

    When you use a RS-232 serial port cable to connect your display to an external computer or control system, certain functions can be controlled remotely such as: power on/off, volume adjustment, input select, brightness, and more.

    USB Connections

    Just like any PC, it is easy to connect various USB devices and other peripherals to your ViewBoard.

    USB Type A

    USB Type A Connection

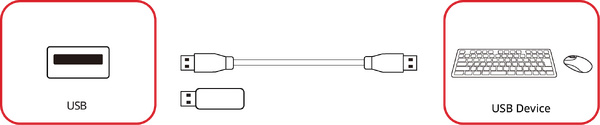

    Plug the USB device or storage drive into a USB Type A port of the ViewBoard.

    USB Type C

    USB Type C Connection

    Plug the USB device or storage drive into a USB Type C port of the ViewBoard.

    Network Connection

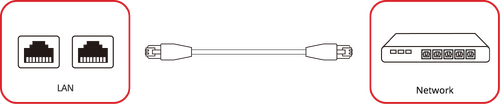

    LAN Connection

    To connect to a local network, connect an Ethernet cable to your network, then connect the other end to a LAN port of the ViewBoard.

    Media Connection

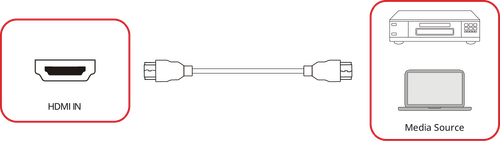

    Media Connection

    To connect to a media source:

    1. Connect an HDMI cable to a HDMI port on your ViewBoard and peripheral device.
    2. Plug in the power cord of your ViewBoard, and turn on the power supply switch.
    3. Press the Power    button on the ViewBoard to turn the screen on.
    4. Press the INPUT button on the remote control and switch to the HDMI input source.

    Audio Connections

    The ViewBoard supports Audio In, Audio Out, and SPDIF.

    Audio In

    Audio In Connection

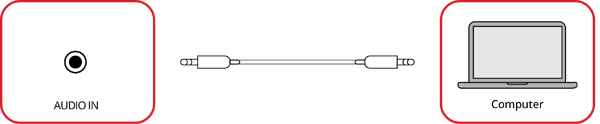

    To play audio from your external device through the ViewBoard’s speakers, connect one end of an audio cable to your external device, and the other end to the ViewBoard’s AUDIO IN port.

    Audio Out

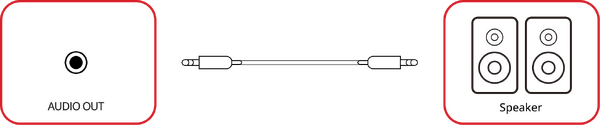

    Audio Out Connection

    To play audio from the ViewBoard through an external speaker, connect one end of an audio cable to the external speaker, and the other end to the ViewBoard’s AUDIO OUT port.

    SPDIF Connection

    SPDIF Connection

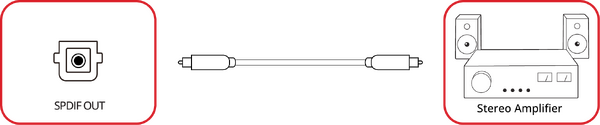

    To connect to an external sound system:

    1. Connect an optical cable from the SPDIF port to your sound system’s optical connector.
    2. Plug in the power cord of your ViewBoard, and turn on the power supply switch.
    3. Press the Power    button on the ViewBoard to turn the screen on.

    Video Output Connection (HDMI Out)

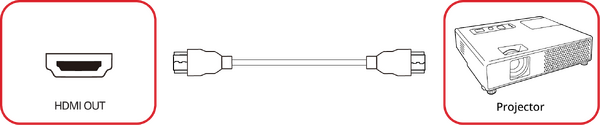

    Video Output Connection

    To output video via a display device:

    1. Connect an HDMI cable to the HDMI IN port of your display device, and the other end to the HDMI OUT port of your ViewBoard.
    2. Plug in the power cord of the ViewBoard, and turn on the power supply switch.
    3. Press the Power    button on the ViewBoard to turn the screen on.
    4. Press the INPUT button on the remote control and switch to the HDMI IN input source.

    Optional Connections

    The ViewBoard comes with an OPS Slot as well as a Wi-Fi Slot for optional add-ons such as a slot-in PC (e.g., VPC-35) or Wi-Fi card (e.g., VB-WIFI-005).

    Slot-in PC (OPS Slot) Installation

    1. Remove the OPS Slot cover of the display.

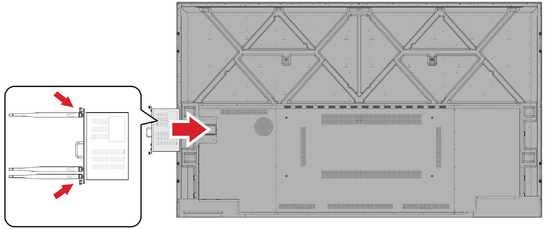

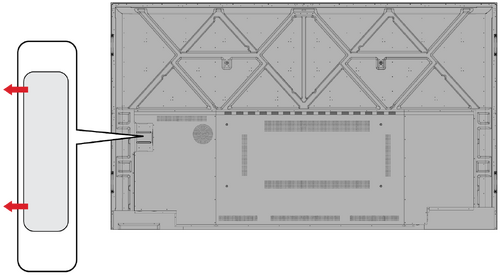

    2. Installing a slot-in PC
    3. Carefully insert the slot-in PC into the OPS Slot of the display.
    4. Installing a slot-in PC
    5. Secure the slot-in PC to the display.

    Wi-Fi Card (Wi-Fi Slot) Installation

    1. Remove the Wi-Fi Slot cover of the display.

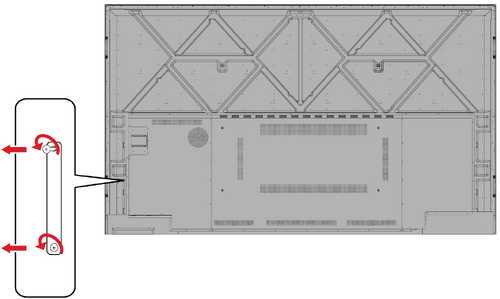

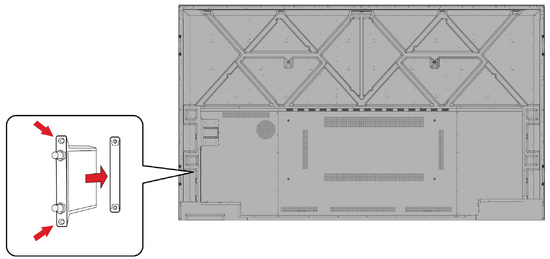

    2. Installing a slot-in Wi-Fi card
    3. Carefully insert the slot-in Wi-Fi card into the Wi-Fi Slot of the display.
    4. Installing a slot-in Wi-Fi card
    5. Secure the slot-in Wi-Fi card to the display.
