IFP110 Introduction
Introduction
Remote Control
Using Gestures
Connecting Devices
Using the ViewBoard
On-Screen Display Menu
ViewBoard Settings
Pre-installed Applications
RS-232 Protocols
Specifications
Regulatory and Service Information
Safety Precautions
Troubleshooting
Maintenance


Package Contents

Note: The cable(s) included in your package may vary depending on your country. Please contact your local reseller for more information.
Package Contents
  • AAA Battery
  • Camera Plate
  • Clamp x 5
  • Compliance Statement
  • HDMI Cable (3 m)
  • Power Cord (3 m)
  • Quick Start Guide
  • Replacement Pen Nib x 4
  • Retractable Stylus
  • RS-232 Adapter
  • Screw x 10
  • Touch Pen x 2
  • USB Touch Cable (3 m)
  • Remote Control

Wall Mount Kit Specifications (VESA)

Please follow the instructions in the wall mount installation guide to install your wall mount. If attaching to other building materials, please contact your nearest dealer.

Wall Mount Kit Specifications
Model VESA Spec.
(A x B) 		Standard Screw
(C x D) 		Screw Quantity
IFP110 1000 x 800 mm M8 x 20 mm 6
Note: Do not use screws that are longer than the standard dimension, as they may cause damage to the inside of the display.

Product Overview

Front/Rear View

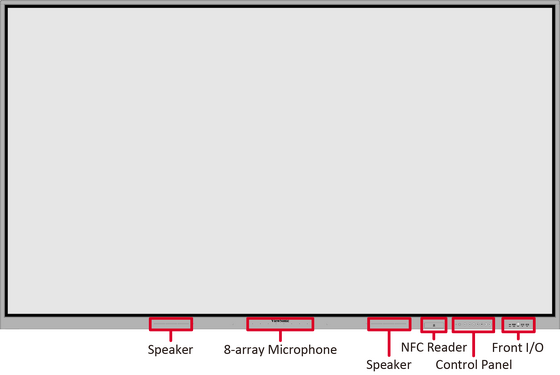

  • Front View
    Front View

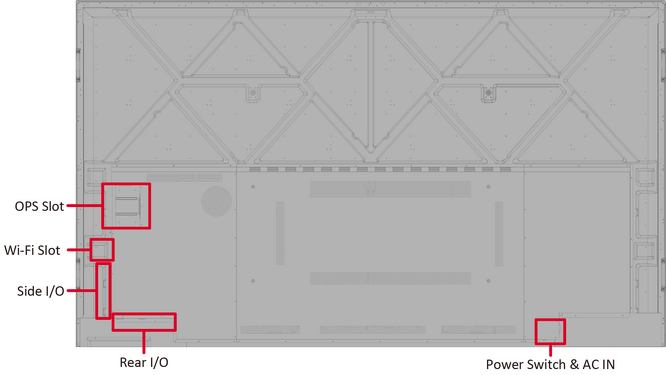

  • Rear View
    Rear View

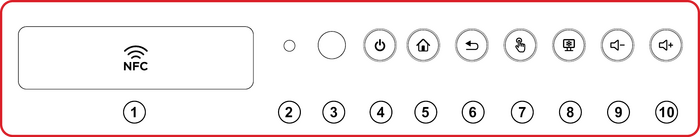

Control Panel

Control Panel
Number Item Description
1
NFC Icon
 NFC reader.
2
Light Sensor Icon
 Ambient light sensor.
3
IR receiver
 Remote control IR receiver.
4
Power On/Off Icon
  • Power indicator light
  • Press to turn ON the display.
  • Once on, press again to turn on or off the backlight only.
  • Once on, press and hold to turn off the display.
5
ViewBoard Home Icon
 Return to the ViewBoard's main interface.
6
Return Icon
 Return to the previous interface level (i.e., go back to a previous screen).
7
Touch Screen Icon
 Disable/Enable the touch screen function.
8
Freeze Screen Icon
 Freeze the current image on the screen
9
Volume Down Icon
 Decrease the volume level
10
Volume Up Icon
 Increase the volume level

I/O Panels

  • Front View
    Front View
  • Rear View
    Rear View

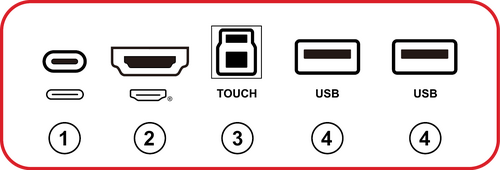

Front I/O

Front I/O Panel
Number Port Description
1 USB Type C Icon
(FRONT TYPE C)
  • USB Type C input
  • USB 3.0 standard
  • Supports DP v. 1.2 with audio, video, and touch
  • Supports LAN by 10M/100M
  • Supports power charge up to 65W. Power charge supported: 5V/3A, 9V/3A, 15V/3A, 20V/3.25A
2 HDMI Icon
(FRONT HDMI)
  • HDMI input
  • Connect to a computer with HDMI output, set-top box, or other video device
  • Supports 4K display; HDMI v. 2.0; CEC
3 TOUCH[1]
(TOUCH 3)
  • USB Type B
  • Touch signal output to external computer
  • After connection (with an external computer), the device connected to the USB port can directly be used by the external computer
4 USB
  • USB Type A input
  • USB 3.0 standard
  • Connect USB devices such as hard disks, keyboard, mouse, etc.
  • Automatically switches between the external computer and ViewBoard
  • Supports: 5V/0.9A (x2)

Notes

  1. ↑ Pairs with the FRONT HDMI  HDMI Icon port next to it.

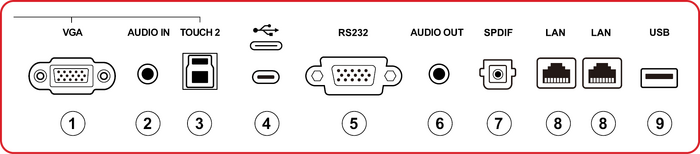

Rear I/O

Rear I/O Panel
Number Port Description
1 VGA External computer video input
2 AUDIO IN External computer audio input
3 TOUCH 2[1]
  • USB Type B
  • Touch signal output to external computer
  • After connection (with an external computer), the device connected to the USB port can directly be used by the external computer
4 USB Type C Icon
(Type C 3)
  • USB Type C
  • For data read/write only
  • USB 3.0 standard
  • Supports: 5V/0.9A
5 RS232 Serial interface; used for mutual transfer of data between devices
6 AUDIO OUT Audio output to an external speaker/headset
7 SPDIF Multichannel sound via optical signals.
8 LAN Standard RJ45 (10M/100M/1000M) Internet connection interface. Features hub support for network sharing.
9 USB
  • USB Type A input
  • USB 2.0 standard
  • Microphone for external device use
  • Supports: 5V/0.5A

Notes

  1. ↑ Pairs with the VGA and HDMI 2 port.

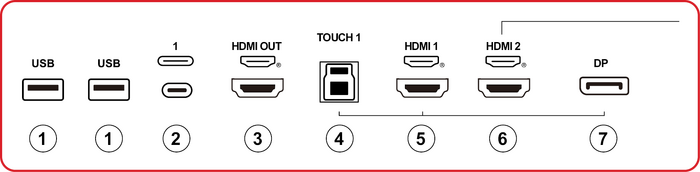

Side I/O

Side I/O Panel
Number Port Description
1 USB
  • USB Type A input
  • USB 3.0 standard
  • Connect USB devices such as hard disks, keyboard, mouse, etc.
  • Automatically switches between the external computer and ViewBoard
  • Supports: 5V/0.9A (x2)
2 USB Type C Icon
(Type C 1)
  • USB Type C input
  • USB 3.0 standard
  • Supports DP v. 1.2 with audio, video, and touch
  • Supports power charge up to 100W. Power charge supported: 5V/3A, 9V/3A, 15V/3A, 20V/3.25A, 20V/5A
3 HDMI OUT[1] Connect to devices with HDMI input function. Supports 1080p and 4K@60Hz.
4 TOUCH 1[2]
  • USB Type B
  • Touch signal output to external computer
  • After connection (with an external computer), the device connected to the USB port can directly be used by the external computer
5 HDMI 1
  • HDMI input
  • Connect to a computer with HDMI output, set-top box, or other video device
  • Supports 4K display; HDMI v. 2.1; CEC; ARC
6 HDMI 2
  • HDMI input
  • Connect to a computer with HDMI output, set-top box, or other video device
  • Supports 4K display; HDMI v. 2.0; CEC; ARC
7 DP
  • DisplayPort input, v. 1.2
  • Supports 4K display

Notes

  1. ↑ Supported by select models.
  2. ↑ Pairs with the DP and HDMI 1 port.

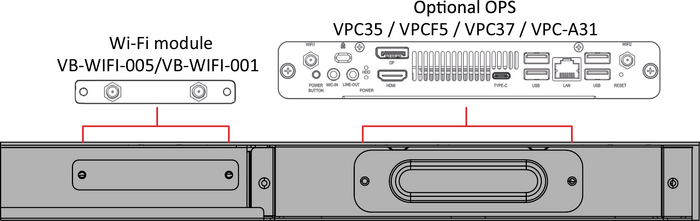

OPS and Wi-Fi Slot

Note: OPS output: 18V/5A.
the position of OPS and Wi-Fi Slot
