IFP110 Embedded Applications

    From ViewSonic User Guide Database

    myViewBoard Display

    Wirelessly mirror screens to a larger display.

    MVB Display.png

    To share a screen to a ViewBoard with myViewBoard Display:

    1. Open myViewBoard Display on the ViewBoard you want to share your screen to.
    2. On the device you want to share the screen from, go to: https://myviewboard.com/display.
    3. Enter the Display Code and One Time Password for the ViewBoard you wish to share to.
    Note: Note that the password refreshes every 30 seconds.

    myViewBoard Manager

    Remotely manage multiple installations of ViewSonic devices.

    MVB Manager.png

    Once devices are set up and have myViewBoard Manager installed, they can be added to the entity and managed remotely from the Manager web application.

    Note: Only available to Entity Admins from myviewboard.com after signing in.

    Add a Device
    On the device to manage:

    1. Download and install myViewBoard Manager.
    2. Open myViewBoard Manager and note the 6-digit PIN displayed.

    In the myViewBoard Manager web application on myviewboard.com:

    1. Click Add Device.
    2. Input the 6-digit PIN obtained earlier.
    3. Name the device (if applicable).
    4. Click Add.
    Note: To learn more about myViewBoard Manager, visit: https://wiki.myviewboard.com/MyViewBoard_Manager.

    myViewBoard Whiteboard

    A digital whiteboarding application.

    Note: To learn more about myViewBoard Whiteboard, visit: https://wiki.myviewboard.com/Whiteboard_for_Android.
    MVB Whiteboard.png
    Floating Toolbar
    Item Description
    Whiteboard Icon Floating Toolbar Move Toolbar.svg
    Move Move the Floating Toolbar.
    Whiteboard Icon Floating Toolbar Present Mode.svg
    Present Mode Switch between presentation and preparation modes.
    Whiteboard Icon Floating Toolbar Paste from Clipboard.svg
    Paste from Clipboard Insert the current clipboard content onto the canvas.
    Whiteboard Icon Floating Toolbar Previous Page.svg
    Previous Page Go to the previous page (if the canvas has multiple pages).
    Whiteboard Icon Floating Toolbar Next Page.svg
    Next Page Go to the next page (if the canvas has multiple pages).
    Whiteboard Icon Floating Toolbar New Page.svg
    New Page Add a new canvas.
    Whiteboard Icon Floating Toolbar Pages in Whiteboard.svg
    Pages in Whiteboard Create, select, rearrange, copy and delete pages.
    Main Toolbar
    Item Description
    Whiteboard Icon Screen Capture.svg
    Screen Capture Screenshot, video, and audio recording.
    Whiteboard Icon Move Toolbar.svg
    Move Select and hold to move the toolbar to the left side, right side, or bottom of the screen.
    Whiteboard Icon File.svg
    File Open, save, export, and print whiteboard files.
    Whiteboard Icon Magic Box.svg
    Magic Box Import resources (image, video, audio, etc.) to the whiteboard.
    Whiteboard Icon Embedded Browser.svg
    Embedded Browser Open the built-in browser to access internet resources, which can be dragged onto the canvas.
    Whiteboard Icon Infinite Canvas.svg
    Infinite Canvas Drag to move the canvas. Use two hands to zoom in/zoom out. Select again for an overview.
    Whiteboard Icon Selection.svg
    Selection Select objects, text, and other elements on the canvas.
    Whiteboard Icon Pen.svg
    Pen Writing tools and customization options.
    Whiteboard Icon Eraser.svg
    Eraser Erase objects or clear the page.
    Whiteboard Icon Shapes and Lines.svg
    Shapes and Lines Draw shapes, arrows, and add tables.
    Whiteboard Icon Text and Handwriting.svg
    Text and Handwriting Add a text box.
    Whiteboard Icon Undo.svg
    Undo Undo the previous action.
    Whiteboard Icon Redo.svg
    Redo Redo the previous action.
    Background Management
    Item Description
    Whiteboard Icon Background Management Sign in.svg
    Sign In Sign in to a myViewBoard account.
    Whiteboard Icon Background Management Background Management.svg
    Background Management Change the canvas background.
    Whiteboard Icon Background Management FollowMe Setting.svg
    FollowMe Setting Display custom images uploaded to a cloud storage account.
    Whiteboard Icon Background Management Color Palette.svg
    Color Palette Choose from solid or gradient colors as the background.
    Whiteboard Icon Background Management Pre-Installed.svg
    Pre-installed Choose backgrounds that come pre-installed with Whiteboard.
    Whiteboard Icon Background Management MVB Originals.svg
    myViewBoard Originals Display original content created by myViewBoard.
    Whiteboard Icon Background Management Local Harddrive.svg
    Local Hard Drive Use images from the local hard drive.

    vCast

    Working with ViewBoard® Cast software (vCast, vCast Pro, and vCastSender), the vCast application will allow the ViewBoard to receive laptop screens (Windows/Mac/Chrome) and mobile (iOS/Android) users’ screens, photos, videos, annotations, and camera(s) that are using the vCastSender application.

    ViewBoard Cast (vCast)
    Note:
    • ViewBoard® Cast software, laptops, and mobile devices can connect to both the same subnet and cross subnet by entering the on-screen PIN code.
    • Connected devices will show up under Device List on the same subnet connection.
    • If the device does not show up under Device List, users will need to key-in the on-screen PIN code.

    Network Information

    • Ports:
    TCP 56789, 25123, 8121 & 8000 (Controlling message port & client device audio transfer)
    TCP 8600 (BYOM)
    TCP 53000 (Request share screen)
    TCP 52020 (Reverse control)
    TCP 52025 (Reverse control for ViewBoard Cast Button)
    TCP 52030 (Status sync)
    TCP 52040 (Moderator mode)
    UDP 48689, 25123 (Device searching and broadcast & client device audio transfer)
    UDP 5353 (Multicast search device protocol)
    • Port and DNS Activation:
    Port: 443
    DNS: https://vcastactivate.viewsonic.com
    • OTA Service:
    Server Port: TCP443
    Server FQDN Name: https://vcastupdate.viewsonic.com

    Display Group Settings

    To adjust the Display Group Settings, select the Display Group icon (VCastPro DG Icon.svg) located in the lower-right corner of the screen.

    vCast Display Group
    1. Toggle the "Turn On/Off Display Group" ON to enable the Display Group feature.
    2. vCast Display Group
      Note: Other preinstalled ViewBoard Cast devices in the same network will be listed.
    3. Select the devices you want to join the display group and select OK to save the settings.
    4. vCast Display Group
      Note:
      • If the devices you want to group are not listed, you can enter their respective IP address or connecting PIN code.
      • The Display Group maximum device limit is six devices.
    5. If you frequently connect to the same device, you can select the Star icon (VCastPro Star Icon.svg) next to the device to add it to your frequently connected devices list, "My List of Devices in Group", for easier Display Group setup and management.
    6. vCast Display Group

    Synchronized Group Screen All the Time

    When the “Synchronized group screen all the time” function is toggled ON, it will display a synchronized group screen continuously. If it is toggled OFF, it will work on vCast mirroring only.

    vCast Display Group
    Note: Select the devices to group first, then toggle the "Synchronized group screen all the time” function ON to avoid interruption.

    Share a Screen to the Display Group (One to Many Casting)

    After confirming the above settings, you can share your screen to the main display, then the grouped client devices will be synced up to your screen.

    vCast Display Group

    Moderator Mode

    Moderator Mode allows the moderator to take control of the devices connected to the ViewBoard. To enter Moderator Mode, select the Moderator Mode icon (VCast Pro MM Icon.svg) located in the lower-right corner of the screen.

    vCast Moderator Mode

    When enabled, the moderator can view a list of all connected screens in the left floating window and can preview each participant’s screen and then select any of participant’s screen and cast to the ViewBoard’s main screen for presentation. The moderator can also control each participant’s screen, annotate on the ViewBoard, and remove unwanted participants by selecting the close icon (X).

    vCast Moderator Mode

    Broadcast

    When enabled, the ViewBoard’s screen will be broadcasted to all of the participant’s connected screens simultaneously. The participants can only view the presentation contents until the moderator disables the Broadcast function.

    vCast Broadcast

    Multiple Screen Sharing

    By default, vCast is set to allow multiple screen sharing, but can also be set to single screen sharing. To do this, the moderator can select the Multiple Screen Sharing icon to switch to single screen sharing.

    Preview Screen

    By default, vCast is set to let the moderator preview the participant’s screen contents prior to sharing to the ViewBoard. Selecting the Preview Screen icon, the Moderator can switch to see the participant’s name only.

    Touch

    By default, participants can use touch for collaboration after connecting. The moderator can enable/disable the touch function of a participant by selecting the Touch icon in their window.

    Note:
    • Moderator Mode is supported on all vCastSender and AirPlay devices, but mobile devices are limited to a "preview" function. Additionally, mobile Android devices cannot cast sound out.
    • When you cast your Windows/Mac/Chrome screen to a ViewBoard, the selected full screen unit will not be broadcasted back to your device to avoid repetitive screen casting.
    • The active presenter can touch each of the participant's screens to remotely control casting devices.
    • The number of multi-screen presenters on-screen depends on your Windows CPU processor performance and router specifications.

    Casting from Windows, MacBook, and Chrome Devices

    IFP52 vCast Sender 1-1.png
    1. Ensure the client device (e.g., laptop) is connected to the same network as the ViewBoard.
    2. Note: The network name can be found under Room Network.
      VCast Computer 1.png
    3. On the client device, visit the address that is shown on the ViewBoard to download and install the vCastSender application.
    4. After installing, launch the vCastSender application.
    5. To connect to the ViewBoard, input the PIN code and click OK.
    6. Note: The PIN code can be found as highlighted below:
      VCast Computer 2.png
    7. Additionally, you can connect to the ViewBoard or display by clicking Device List then the Device Name listed.
    8. VCast Computer 3.png
      Note: The Device Name can be found as highlighted below:
      VCast Computer 4.png

    Casting from Android Devices

    VCast Mobile Update 1.png
    1. Ensure the client device (e.g., Android phone or tablet) is connected to the same network as the ViewBoard.
    2. Note: The network name can be found under Room Network.
      VCast Computer 1.png
    3. On the Android client device, scan the QR code shown on the ViewBoard to directly download the vCastSender application, or download the application from the Google Play Store.
    4. VCast Sender 3.png
    5. After installing, launch the vCastSender application.
    6. To connect to the display, input the PIN code and select OK.
    7. Note: The PIN code can be found as highlighted below:
      VCast Computer 2.png
    8. You can also connect to the ViewBoard by clicking Device List then the Device Name listed.
    9. VCast Sender Device List Scan.png
      Note: The Device Name can be found as highlighted below:
      VCast Computer 4.png
    10. Additionally, you can connect to the ViewBoard by selecting Scan then placing the on-screen QR code into the box to automatically connect.
    11. VCast Computer 5.png

    Casting from Apple iOS Devices

    Apple AirPlay® is compatible with vCast for screen mirroring and content streaming under the same subnet environment only. An “AirPlay Password” will be generated on-screen for connection when using AirPlay to cast to a ViewBoard.

    VCast Apple Main.png
    1. Ensure the client device (e.g., iPhone or iPad) is connected to the same network as the ViewBoard.
    2. Note: The network name can be found under Room Network.
      VCast Computer 1.png
    3. On the iOS client device, directly open AirPlay and select the Device Name of the ViewBoard to connect.
    4. Note: The Device Name can be found as highlighted below:
      VCast Computer 4.png
    5. Input the generated on-screen AirPlay Password on the client device to connect.
    6. VCast Sender 4.png
      Note: In a cross subnet environment, please download and connect with the vCastSender iOS application from the Apple App Store.
    7. You can also connect to the ViewBoard by selecting Scan then placing the on-screen QR code into the box to automatically connect.
    8. VCast Computer 5.png

    Connecting to a Display from a Mobile Device

    Once connected, select Receive. The ViewBoard or selected display screen will appear on the mobile device with an on-screen toolbar. Users can interact with the ViewBoard or display with annotations, file sharing, etc.

    VCast Mobile 1.png
    Item Description
    VCast Icon Toggle.svg
    Toggle Hide or display the toolbar.
    VCast Icon Home.svg
    Home Return to the Home interface.
    VCast Icon Return.svg
    Return Return to the previous operation.
    VCast Icon Folder.svg
    Folder View or open the mobile device's files.
    VCast Icon Share.svg
    Share Cast the mobile device's screen to the connected ViewBoard or display.
    VCast Icon Touch.svg
    Touch Remotely control the connected ViewBoard or display.
    VCast Icon Annotate.svg
    Annotate Make annotations, and adjust the pen color.
    VCast Icon Clear.svg
    Clear Clear everything on screen.
    VCast Icon Camera.svg
    Camera Send camera images to the connected ViewBoard or display.

    Casting with Chromecast

    vCast supports native Chromecast screen sharing via the Chrome browser casting when the Chromecast feature is enabled.

    Note:
    • Miracast does not support password protection or multiple-screen casting.
    • Miracast sharing is only available over Wi-Fi.
    • Miracast will automatically turn off after being idle for one hour.
    1. Ensure the client device (e.g., laptop) is connected to the same network as the ViewBoard.
      Note: The network name can be found under Room Network.
      VCast Computer 1.png
    2. Ensure the Chromecast Enable checkbox is selected in the vCast settings.

      VCast Chromecast Enable

    3. Please follow the below steps to cast:

      For Window devices:

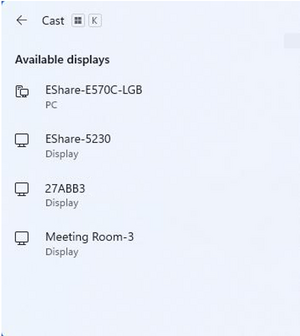

      1. On the Windows device, press Win + K and select the display to cast to.
        a list of displays for casting

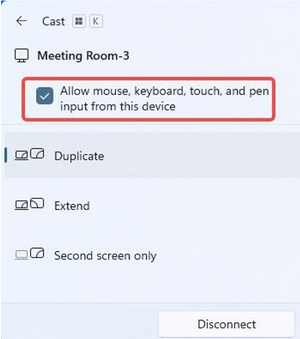

      2. Select the checkbox “Allow mouse, keyboard, touch, and pen input from the device” to enable the touch feedback feature.
        the checkbox to enable the touch feedback feature

      For Android devices:

      On the Android device, directly select Cast/Smart View/Wireless Projection then select the display to cast to.
