IFP50-3 Embedded Player

Embedded Player Settings

When the ViewBoard is in the Embedded Player input source, press MENU on the remote control or tap the setting icon next to the input source in the On-Screen Display (OSD) Menu’s Input Settings to enter the Settings menu.

Wireless & Network

Check current network connection status, set up and manage Wi-Fi, Ethernet, Bluetooth, and VPN, and establish a Wireless hotspot.

NOTE:

Wi-Fi, Wireless hotspot and Bluetooth settings will appear when LB-WIFI-001(optional) has been installed.
Ethernet will disable automatically when Wi-Fi is enabled. Wi-Fi will disable automatically when Ethernet is enabled. Wi-Fi will disable when Wireless hotspot is enabled.
The device cannot connect to the Internet when Wireless hotspot is enabled.

Wi-Fi

Setup and manage wireless access points.

Tap the toggle button to turn Wi-Fi On or Off.
Once On, you can: Add a Network, view Saved Networks, Refresh the network list, or view Advanced settings.
In Advanced settings, you can toggle Network notifications On or Off and view Network card info.

Ethernet

Set the local network and proxy.

Tap the drop down menu to connect/disconnect the Ethernet.
You can adjust Local network and Proxy settings as well.
Tap Advanced to view Network card info and toggle Network auto reconnect.

Wireless Hotspot

Set and share your internet connection with other devices.

Tap the toggle button to turn Wireless hotspot On or Off.

Error creating thumbnail: File with dimensions greater than 12.5 MP

Tap Set up to set the Network name, Security, and Password.

VPN

Setup and manage Virtual Private Networks.

Error creating thumbnail: File with dimensions greater than 12.5 MP

To create a VPN profile:

Go to: Settings > Wireless & Network > VPN and tap Add VPN.
Key in the Name.
Select the VPN Type.
Choose to enable/disable PPP encryption (MPPE) and/or show Advanced options.

Share

SAMBA

The SAMBA Service provides file sharing via LAN. When the SAMBA Service is enabled, the user can explore the ViewBoard file system with a PC or mobile equipment.

To access, go to: Settings > Share > SAMBA.
Tap the toggle button to enable the SAMBA Service, then set a password if needed.
Ensure the ViewBoard and client equipment are connected to the same network.
Log in to the ViewBoard with the client equipment. Input the ViewBoard’s IP address.
Key in the user name and password, then select OK (if necessary).
After a successful log in, the ViewBoard files will be available.

Display

Adjust the Wallpaper, Theme, Display ID, Protection, and HDMI Out settings.

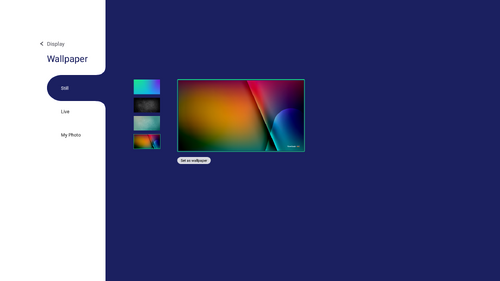

Wallpaper

Users can change their wallpaper with default images (both still and live), or use their own by tapping My Photo and selecting the image file.

Protection

Toggle HDCP & Copyright and Burn-in Protection Interval On/Off, and set a Password for Screen Lock.

Error creating thumbnail: File with dimensions greater than 12.5 MP

HDMI Out

Adjust the HDMI Out Resolution setting.

Error creating thumbnail: File with dimensions greater than 12.5 MP

Preference

View and adjust Touch, Language, Keyboard & Input Method, Date & Time, Boot Mode & Advanced Setting, Start up & Shut down, and Toolbar Setting settings.

Touch

Adjust Touch Settings and toggle Touch Sounds and Windows Ink On/Off.

Error creating thumbnail: File with dimensions greater than 12.5 MP

Language

Choose the preferred language from the available languages.

Keyboard & Input Method

Enable/disable the visual keyboard and/or change the default input method.

Error creating thumbnail: File with dimensions greater than 12.5 MP

Date & Time

Set the system time and format.

Error creating thumbnail: File with dimensions greater than 12.5 MP

Boot Mode & Advanced Setting

Adjust the preferred boot up mode and set/reset a password.

Startup & Shutdown

Set the Startup Input, Standby Mode, EnergyStar Mode, Black Screen After Startup, Power off Reminder timer and Schedule settings.

Toolbar Setting

Adjust the Side toolbar setting.

Error creating thumbnail: File with dimensions greater than 12.5 MP
