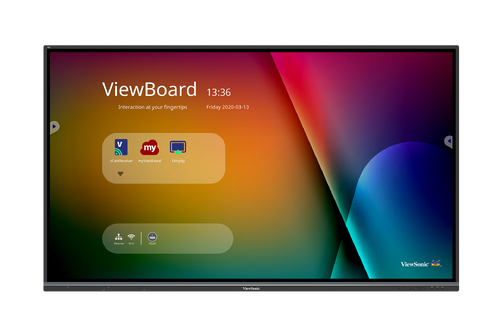

IFP50-3 Specifications
Technical Specifications
Model No. | P/N |
---|---|
VS18105 | IFP5550-3 |
IFP5550-3A | |
IFP5550-3B | |
VS18106 | IFP6550-3 |
IFP6550-3A | |
IFP6550-3B | |
VS17117 | IFP7550-3 |
IFP7550-3A | |
IFP7550-3B | |
VS17118 | IFP8650-3 |
IFP8650-3A | |
IFP8650-3B | |
VS17853 | IFP9850-3 |
Item | Category | Specifications | |||
---|---|---|---|---|---|
Model | P/N. | IFP5550-3 IFP5550-3A IFP5550-3B |
IFP6550-3 IFP6550-3A IFP6550-3B |
IFP7550-3 IFP7550-3A IFP7550-3B |
IFP8650-3 IFP8650-3A IFP8650-3B |
No. | VS18105 | VS18106 | VS17117 | VS17118 | |
Screen Size | 54.5" | 65.5" | 74.5" | 85.5" | |
Input Signal | 3 x HDMI 1 x VGA 1 x Audio In 1 x LAN (RJ45) 4 x USB Type A (3.0) 3 x USB Type A (2.0) | ||||
Output Signal | 1 x Audio Out 1 x SPDIF 2 x USB Type B | ||||
Speaker Output | 10W x 2, 15W Subwoofer x 1 | ||||
RS-232 | RS-232 Communication | ||||
Power | Voltage | 100V-240V AC 50/60Hz | |||
Operating Conditions | Temperature | 32° F to 104° F (0° C to 40° C) | |||
Humidity | 10%~90% non-condensing | ||||
Altitude | ≤ 2,000 m | ||||
Storage Conditions | Temperature | -4° F to 140° F (-20° C to 60° C) | |||
Humidity | 10%~90% non-condensing | ||||
Altitude | ≤ 2,000 m | ||||
Dimensions | Physical (mm) | 1268 x 773 x 85 |
1488 x 897 x 90 |
1710 x 1020 x 90 |
1958 x 1160 x 90 |
Weight | Physical (kg) | 26.4 | 40 | 52.3 | 68 |
Power Consumption | On | 80W | 108W | 138W | 162W |
Off | <0.5W | <0.5W | <0.5W | <0.5W |
Display Modes
VGA Mode
Resolution | Refresh Rate (@) |
---|---|
640 x 480 | 60Hz, 72Hz, 75Hz |
720 x 400 | 70Hz |
800 x 600 | 56Hz, 60Hz, 72Hz, 75Hz |
832 x 624 | 75Hz |
1024 x 768 | 60Hz, 70Hz, 75Hz |
1152 x 864 | 60Hz, 75Hz |
1152 x 870 | 75Hz |
1280 x 768 | 60Hz, 75Hz |
1280 x 960 | 60Hz |
1280 x 1024 | 60Hz, 75Hz |
1360 x 768 | 60Hz |
1366 x 768 | 60Hz |
1400 x 1050 | 60Hz, 75Hz |
1440 x 900 | 60Hz, 75Hz |
1600 x 1200 | 60Hz |
1680 x 1050 | 60Hz |
1920 x 1080 | 60Hz |
1920 x 1200 | 60Hz |
HDMI Mode
Resolution | Refresh Rate (@) |
---|---|
640 x 480 | 60Hz, 72Hz, 75Hz |
720 x 400 | 70Hz |
800 x 600 | 56Hz, 60Hz, 72Hz, 75Hz |
1024 x 768 | 60Hz, 70Hz, 75Hz |
1280 x 800 | 60Hz |
1280 x 1024 | 60Hz |
1360 x 768 | 60Hz |
1440 x 900 | 60Hz |
1680 x 1050 | 60Hz |
1920 x 1080 | 60Hz |
3840 x 2160 | 30Hz, 60Hz |
480i | 60Hz |
480p | 59Hz, 60Hz |
576i | 50Hz |
576p | 50Hz |
720p | 50Hz, 60Hz |
1080i | 50Hz, 60Hz |
1080p | 50Hz, 60Hz |
