IFP50-3 Remote Control

    From ViewSonic User Guide Database

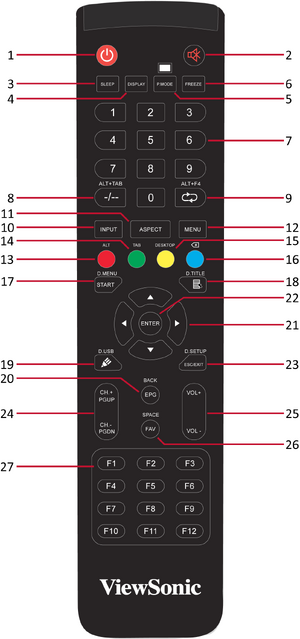

    Remote Control Overview

    Remote Control
    Number Description
    1 Power On/Off
    2 Mute/Unmute
    3 Sleep Mode
    4 For Non-Android sources; display current input source information
    5 Blank Screen
    6 Freeze Screen
    7 Numeric Input Buttons
    8 Slot-in computer space bar, Alt+Tab
    9 Slot-in computer, close program window
    10 Input source selection
    11 Back to slot-in system main interface
    12 For Android, access Settings; for other sources, access Touch Menu settings
    13 Screen capture
    14 PC [Tab] button
    15 Switch to slot-in PC desktop
    16 PC [Backspace] button
    17 PC [Windows] button
    18 PC [Menu] button
    19 Writing software setup
    20 Return button
    21 Scroll up, down, left, or right
    22 Confirm selection/state
    23 Shortcut button to exit dialogue boxes
    24 CH+: PC previous page | CH-: PC next page
    25 Increase/decrease volume
    26 PC [Space] button
    27 Built-in computer F1~F12 function button

    Remote Control Effective Range

    The working range of the remote control is shown here. It has an effective range of 8 meters, 30° degrees left and right. Ensure there is nothing obstructing the remote control’s signal to the receiver.

    Effective Range of the Remote Control

    Replacing the Batteries of the Remote Control

    1. Remove the cover on the rear of the remote control.
    2. Insert two “AAA” batteries, ensuring the “+” symbol on the battery matches the “+” on the battery post.
    3. Replace the cover by aligning it with the slot on the remote control and snapping the latch shut.
    Replacing the Batteries of the Remote Control
    There is a risk of explosion if batteries are replaced with the incorrect type.
    NOTE:
    • Avoid leaving the remote control and batteries in excessive heat or a humid environment.
    • Replace only with the same or equivalent type recommended by the battery manufacturer.
    • Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.
