IFP50-3 Connecting Devices

    From ViewSonic User Guide Database

    Connecting External Devices and Touch Connection

    Connecting External Devices

    HDMI Connection

    To connect via HDMI:

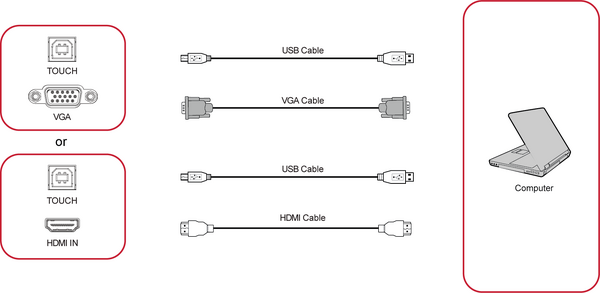

    1. Connect an HDMI cable from your external device to the HDMI IN port on the ViewBoard.
    2. Connect a USB cable to the external device from the TOUCH 1 port of the ViewBoard.

    VGA Connection

    To connect via VGA:

    1. Connect a VGA cable from your external device to the VGA port on the ViewBoard.
    2. Connect a USB cable to the external device from the TOUCH 2 port of the ViewBoard.

    RS-232 Connection

    RS-232 Connection

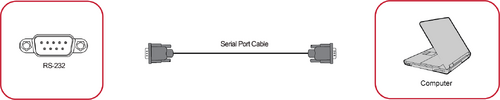

    When you use a RS-232 serial port cable to connect your display to an external computer certain functions can be controlled remotely by the PC, including Power On/Off, Volume adjustment, Input select, Brightness, and more.

    USB and Networking Connections

    Just like any PC, it is easy to connect various USB devices and other peripherals to your ViewBoard.

    USB Peripherals

    USB Connection

    Plug the USB device cable into the USB port.

    Networking Connection

    Network Connection

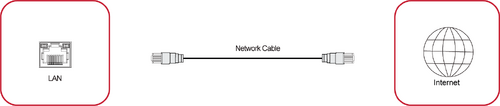

    Plug the network cable into the LAN port.

    Media Player Connection

    Media Player Connection

    To connect a media player:

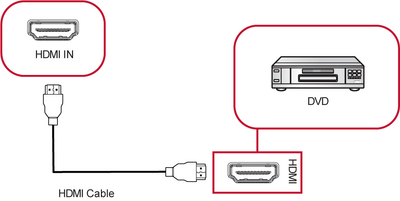

    1. Connect the HDMI cable to the HDMI ports on your ViewBoard and peripheral device.
    2. Plug in the power cord of your ViewBoard, and turn on the power supply switch.
    3. Press the Power button on the right-hand side of the ViewBoard to turn the screen on.
    4. Press the INPUT button on the remote control and switch to the “HDMI” input source.

    SPDIF Connection

    SPDIF Connection

    To connect to an external sound system:

    1. Connect an optical cable from the SPDIF port to your sound system’s optical connector.
    2. Plug in the power cord of your ViewBoard, and turn on the rear-panel power supply switch.
    3. Press the Power button on the right-hand side of the ViewBoard to turn the screen on.
