X1000-4K Connecting Power and Devices

Connecting to Power

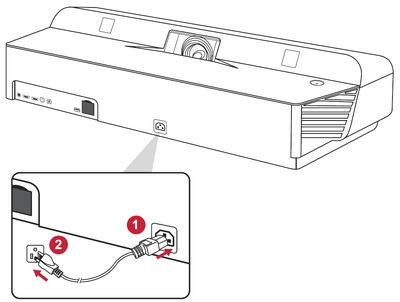

Connect the power cord to the AC IN jack at the rear of the projector.
Plug the power cord into a power outlet.

NOTE: When installing the projector, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible outlet near the unit. If a fault should occur during operation of the projector, use the disconnect device to switch off the power supply, or disconnect the power plug.

Connecting to External Devices

HDMI Connection

Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI 1/2/3 port (each support HDCP 2.0/HDMI 2.2) of your projector.

NOTE: iPhone/iPad users will need to use an additional adapter.

Audio Connection

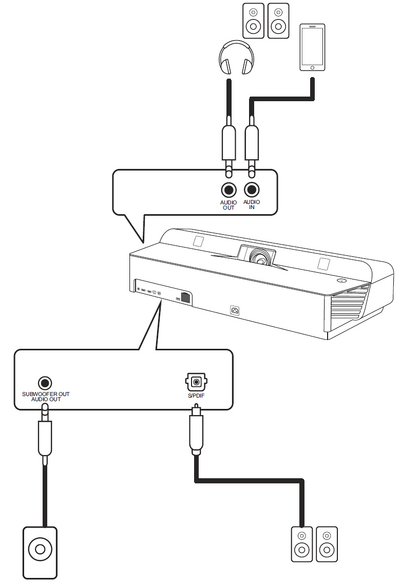

You can connect to various external sound delivery devices via the Audio Out, Audio In, Subwoofer Out, and S/PDIF ports.

To play music with Audio In: select Bluetooth > Bluetooth Speaker
To use Subwoofer Out: select Settings > Advanced Setting > harman/kardon > Internal Speaker > Enable
To play music with Audio Out: select Settings > Advanced Setting > harman/kardon > Internal Speaker > Disable

NOTE: Audio In is available for Bluetooth input only.

USB and Network Connection

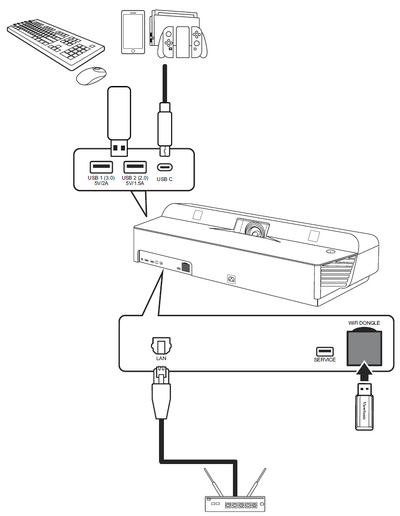

Just like any PC, it is easy to connect various USB devices, dongles, and networking devices.

USB-C Connection
Connect one end of a USB Type-C cable to the USB-C port of your device. Then connect the other end of the cable to the USB-C port of your projector.

NOTE: Ensure your USB Type-C device can support video transmission.

USB Type-A Connection
Connect a keyboard, a mouse, dongles, storage devices, etc. to the projector’s USB Type-A port.

Network Connection
Plug the network cable into the LAN port, or insert the Wi-Fi dongle for a wireless connection.

Wireless Screen Mirroring

Please see Wireless Screen Mirroring

Connecting to Networks

Wi-Fi Connection

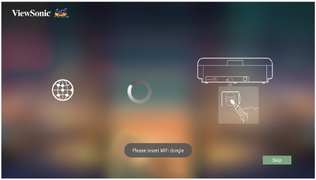

Step 1 - Insert the dongle

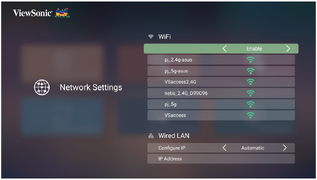

Step 3 - Select Enable

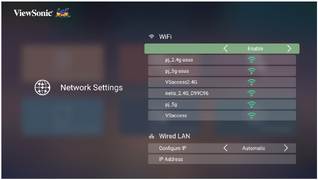

Step 4 - Select Wi-Fi network

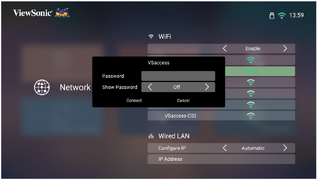

Step 5 - Enter a password if needed

To connect to a Wi-Fi network:

Insert the Wi-Fi dongle into the projector’s Wi-Fi dongle socket.
Go to: Home > Settings > Network Settings > Wi-Fi
Press Left or Right on the remote control to select Enable.
Available Wi-Fi networks will then be displayed. Select one of the available Wi-Fi networks.
If you connect to a secure Wi-Fi network, you must enter the password when prompted.

Custom SSID

Ensure the Wi-Fi dongle is plugged into the projector’s Wi-Fi dongle socket.
Go to: Home > Settings > Network Settings > Wi-Fi
Press Left or Right on the remote control to select Enable.
From the available Wi-Fi networks list select Others and press OK on the remote control.
Enter the SSID and select the security level.
Enter the password when prompted.

NOTE: It is recommended to let the system configure the network settings automatically by choosing Automatic for Configure IP.

Step 4 - Select Others
Step 5 - Enter SSID
Step 6 - Enter Password

Wired LAN Connection

You can easily connect to wired Internet networks and customize the connection as well.

Plug the RJ45 cable into the LAN port of the projector, then ensure the other end is plugged into your wired Internet source.
Go to: Home > Settings > Network Settings > Wired LAN Control
You can Configure the IP automatically or manually. Choosing Manual will allow access to IP Address, Subnet Mask, Default Gateway, and DNS Server.

NOTE: It is recommended to let the system configure the network settings automatically by choosing Automatic for Configure IP.

Bluetooth Connection

Bluetooth Speaker

Step 2 - Select Bluetooth Speaker or Bluetooth Pairing
Step 3 - Select Yes

The projector is equipped with Bluetooth that allows the user to connect their device wirelessly for audio playback.

To connect and pair your device:

Go to: Home > Bluetooth.
Use the Left and Right directional buttons on the remote control to select Bluetooth Speaker or Bluetooth Pairing. Then press OK on the remote control.
When the below dialogue box appears, select Yes and press OK on the remote control to enter Bluetooth mode.
A sound effect will be audible upon entering pairing mode.
Upon successful connection, another sound effect will be audible.

NOTE:

Once paired, if both the projector and your device are powered on they will automatically connect via Bluetooth.

The projector’s name will be labeled as “X1000-4K”.

Only the Power and Return buttons can exit Bluetooth mode.

Bluetooth Out

Step 2 - Bluetooth Out
Step 3 - Select Bluetooth Out

Connect the projector to external headphones or speakers that support Bluetooth.

To connect and pair your device:

Go to: Home > Bluetooth.
Use the Left and Right directional buttons on the remote control to select the Bluetooth Out option.
The projector will search for nearby Bluetooth devices. Select your device from the list and press OK on the remote control.
