Choosing a Location - Projector Orientation

Personal preference and room layout will decide the installation location. Consider the following:

  • Size and position of your screen.
  • Location of a suitable power outlet.
  • Location and distance between the projector and other equipment.
  • Front Table
    Front Table
  • Front Ceiling
    Front Ceiling
  • Rear Table
    Rear Table
  • Rear Ceiling
    Rear Ceiling
Location Description
Front Table The projector is placed near the floor in front of the screen.
Front Ceiling The projector is suspended upside-down from the ceiling in front of the screen.
Rear Table[1] The projector is placed near the floor behind the screen.
Rear Ceiling[1] The projector is suspended upside-down from the ceiling behind the screen.
  1. ↑ 1.0 1.1 A rear projection screen is required.

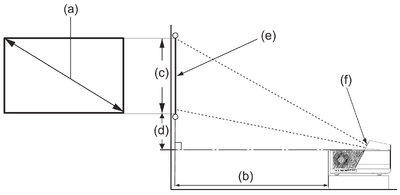

Projection Dimensions

NOTE:
  • (e) = Screen | (f) = Center of Lens
  • The distance from the center of the lens to the rear of the projector is 17.35 cm (6.83”).

16:9 Image on a 16:9 Screen

(a) Screen Size (b) Projection Distance (c) Image Height (d) Vertical Offset
in. mm in. mm in. mm in. mm
60 1524 62.6 1590 29.42 747 2.94 75
70 1778 84.2 2140 34.32 872 3.43 87
80 2032 105.9 2690 39.22 996 3.92 100
90 2286 127.8 3250 44.12 1121 4.41 112
100 2540 149.2 3790 49.03 1245 4.9 125
120 3048 193.3 4910 58.83 1494 5.88 149
130 3302 214.8 5460 64.73 1619 6.37 162
150 3810 258.5 6570 73.54 1868 7.35 187
These figures are for reference purposes only. Please refer to the actual projector for the precise dimensions.


Allow at least 50 cm (20”) of clearance around the projector for proper ventilation and to prevent overheating.

Mounting the Projector

NOTE: If you buy a third party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate.
  1. To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount.
  2. Ensure the screws used to attach the mount to the projector meet the following specifications:
  • Screw type: M6 x 10
  • Maximum Screw Length: 10 mm

CAUTION
  • Avoid installing the projector near a heat source or air conditioner.
  • Keep at least a 10 cm (3.9 in.) gap between the ceiling and the bottom of the projector.
