    Starting the Projector

    1. Ensure the projector’s power cord is properly connected to a power outlet.
    2. Press the Power button to turn on the projector.
    NOTE: The Status LED will be blue during startup.

    First Time Activation

    If the projector is activated for the first time, you will need to select your Preferred Language, Projection Orientation, Network Settings, and Source Input. Follow the on-screen instructions using the OK and Up/Down/Left/Right buttons on the remote control. When the Finish screen appears, this indicates the projector is ready to use.

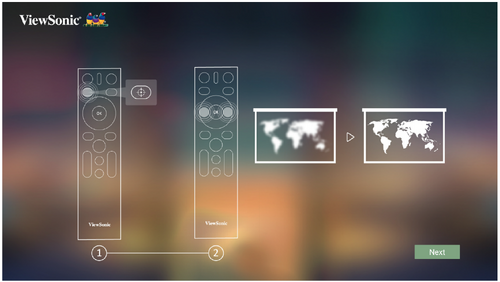

    Image Focus

    Select the Focus button and press Right or Left to adjust the image until it is clear.

    X1000 Image Focus.png

    Preferred Language

    Select the desired language and press OK to confirm the selection.

    X100 Preferred Language.jpg

    Projection Orientation

    Select the preferred projection orientation and press OK to confirm the selection.

    X100 Projection Orientation.png

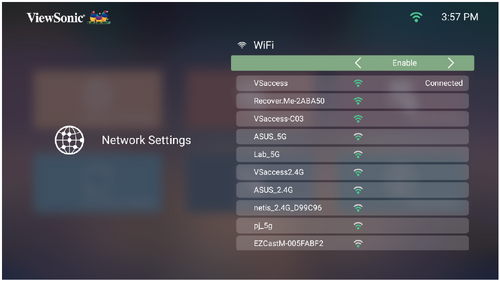

    Network Settings

    Select one of the available options.

    X1000 Network Settings.png

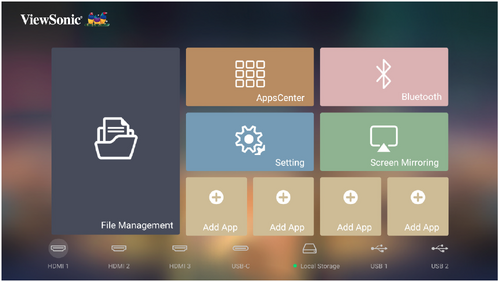

    Source Input

    Quickly access the Source Input menu by pressing the Down button on the remote control when at the Home Screen. Additionally, you can press the Source button on the remote control.

    X1000 Source Input.png

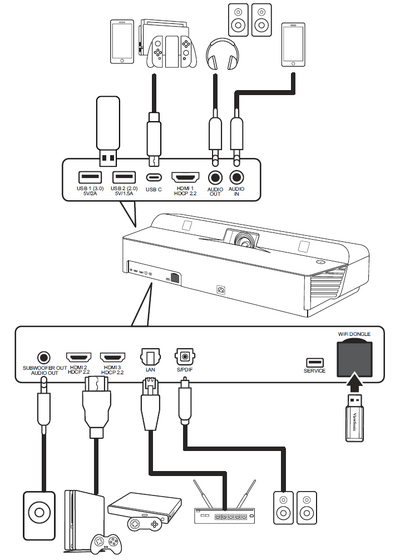

    Selecting an Input Source

    The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

    X1000 Input Source.png

    The projector will automatically search for input sources. If multiple sources are connected, press the Source button on the remote control to select the desired input, or press the Down button when at the Home Screen until the source list is displayed.

    NOTE: Ensure the connected sources are also turned on.

    Adjusting the Projected Image

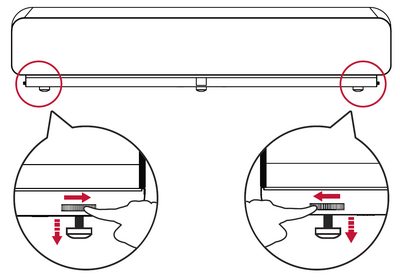

    Adjusting the Projector's Height and Projection Angle

    The projector is equipped with two (2) adjuster feet. Adjusting the feet will change the projector’s height and the vertical projection angle.

    X1000 Height Adjust.png

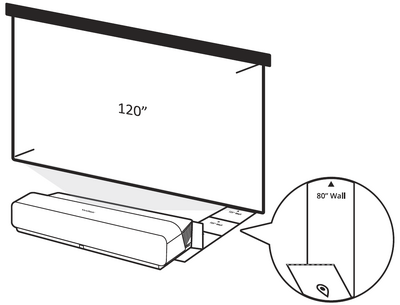

    Setting Up the Desired Image Size

    The included Distance Card can be used to determine the desired image size.

    X1000 Distance Adjust.png

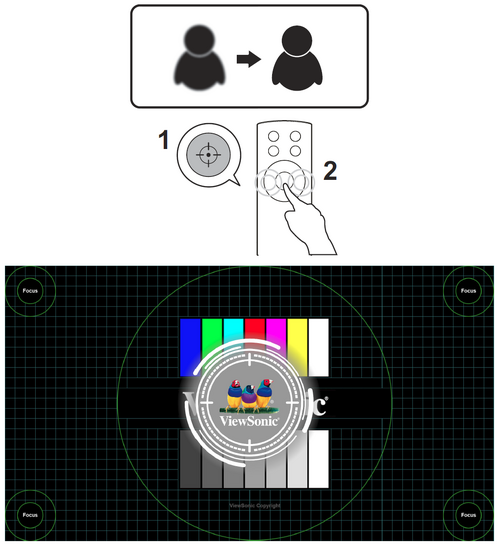

    Fine-Tuning the Image Clarity

    You can improve the clarity of the image by pressing the Focus button, then using the Left and Right buttons on the remote control.

    X1000 Clarity Adjust.png

    Shutting Down the Projector

    1. Press the Power button on the projector or remote control and the following message will appear:
      2. X1000 Shutdown.png
    2. Press the Up/Down buttons on the remote control to select Turn Off and press OK on the remote control.
    3. The Status LED will turn solid red once turned off.
    NOTE: When pressing Power on the remote control, you can choose from four (4) options: Turn Off, Restart, Bluetooth, and Turn light source Off.
