X1000-4K Introduction

    From ViewSonic User Guide Database

    Features

    • Ultra short throw lens is excellent for home projection. Project a 100” screen from 0.379 meters (Back I/O side to wall).
    • 16 GB internal storage (Max. 12 GB available for user storage).
    • Various Color modes for different projection purposes.
    • Multi-language On-Screen Display (OSD) menus.

    Package Contents

    NOTE: The power cord and remote control included in your package may vary depending on your country. Please contact your local reseller for more information.

    Projector Overview

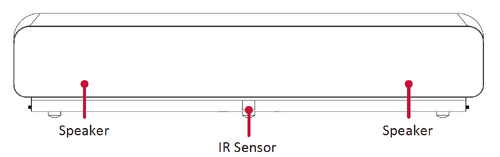

    Front

    X1000-4K Overview Front.png

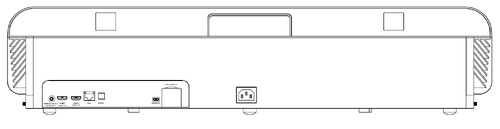

    Rear

    X1000-4K Overview Rear.png

    Sides

    X1000-4K Overview Side.png

    Top

    X1000-4K Overview Top.png

    I/O Ports

    Side I/O

    X1000 IO Ports Side.png
    Number Port Description
    1 USB (5V/2A Out) USB 3.0 Type-A port (USB Reader - FAT32/NTFS[1])
    2 USB (5V/1.5A Out) USB 2.0 Type-A port (USB Reader - FAT32/NTFS[1])
    3 USB-C USB Type-C port
    4 HDMI 1[2] HDMI port[3]
    5 AUDIO OUT (3.5 mm jack) Audio signal output socket
    6 AUDIO IN (3.5 mm jack) Audio signal input socket
    1. 1.0 1.1 USB reader supports FAT32/NTFS format.
    2. Supports HDCP 2.0/HDMI 2.2.
    3. iPhone/iPad users will need to buy an additional adapter. To avoid compatibility issues, please use Apple authorized accessories.

    Rear I/O

    X1000 IO Ports Rear.png
    Number Port Description
    7 AUDIO OUT / SUBWOOFER OUT (3.5 mm jack) Audio signal output socket
    8 HDMI 2[1] HDMI port[2]
    9 HDMI 3[1] HDMI port[2]
    10 LAN RJ45 LAN port
    11 S/PDIF S/PDIF signal output socket
    12 Service For Firmware updates
    13 Wi-Fi Dongle USB 2.0 for Wi-Fi Dongle
    14 AC IN AC IN socket
    1. 1.0 1.1 Supports HDCP 2.2/HDMI 2.0.
    2. 2.0 2.1 iPhone/iPad users will need to buy an additional adapter. To avoid compatibility issues, please use Apple authorized accessories.
