    Connecting to Power

    1. Connect the power cord to the AC IN jack at the rear of the device.
    2. Connect the power cord plug to a power outlet.
    VP2786-4K Connect Power.png
    Connecting to Power

    Connecting External Devices

    Note: To connect the monitor to an external device (PC, laptop…etc.), please use one of the included video cables for your application and connect it to both terminals.
    VP2786-4K Connect HDMI.png
    VP2786-4K Connect DP.png
    VP2786-4K Connect USB.png
    VP2786-4K Connect Audio.png
    HDMI Connection DisplayPort Connection USB Connection Audio Connection

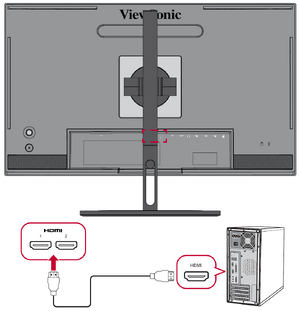

    HDMI

    Connect one end of an HDMI cable to the HDMI port of your monitor. Then connect the other end of the cable to the HDMI port of your computer.

    NOTE: The monitor is equipped with two HDMI 2.0 ports.

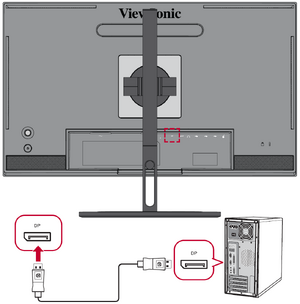

    DisplayPort

    Connect one end of a DisplayPort cable to the DisplayPort port. Then connect the other end of the cable to the DisplayPort or mini DP port of your computer.

    NOTE: To connect the monitor to the Thunderbolt port (v. 1&2) on your Mac, connect the mini DP end of the “mini DP to DisplayPort cable” to the Thunderbolt output of your Mac. Then connect the other end of the cable to the DisplayPort port of the monitor.

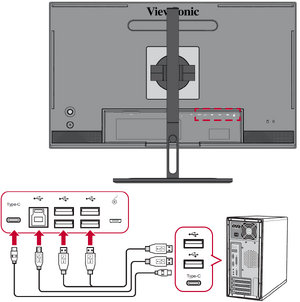

    USB

    Connect one end of a USB cable to a USB port of the monitor. Then connect the other end of the cable to a USB port of your computer.

    USB Number Description
    Type A Four (4) Connection for your Type A peripheral device(s). (e.g., storage device).
    NOTE: To use some peripherals, please ensure your computer is also connected to the monitor’s USB Type B port.
    Type B One (1) Connect the USB Type B male cable (square with 2 cut corners) to this port, and then connect the other end of the cable to the USB downstream port of your computer.
    Type C One (1) Make sure your Type C output device and cable support video signal transmission.
    Micro USB One (1) For use with the ColorPro™ Wheel.
    NOTE: It is not necessary to connect to all three types of USB ports at the same time. The user’s personal usage scenario will determine which, if any, USB ports are used.

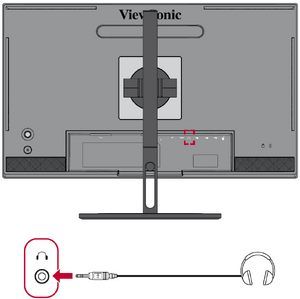

    Audio Connection

    Plug the audio jack of the ear-/headphones into the Audio Out port of the monitor. Additionally, you can connect the monitor to a sound bar using an audio cable.

    NOTE: The monitor is also equipped with dual speakers.

    Connecting the ColorPro™ Wheel

    Connect the USB Type A and Micro USB cable of the ColorPro™ Wheel to the USB Type A and Micro USB port of the monitor.

    VP2776 ColorPro Wheel Connect.png
