    VG2756a-2K On-Screen Display Menu Options
    Introduction
    Initial Setup
    Connecting to Power and Devices
    Adjusting the Viewing Angle
    Quick Menu
    Hot Keys
    On-Screen Display Menu Operation
    On-Screen Display Menu Tree
    On-Screen Display Menu Options
    Specifications
    Regulatory and Service Information
    Safety Precautions
    Glossary
    Troubleshooting
    Maintenance

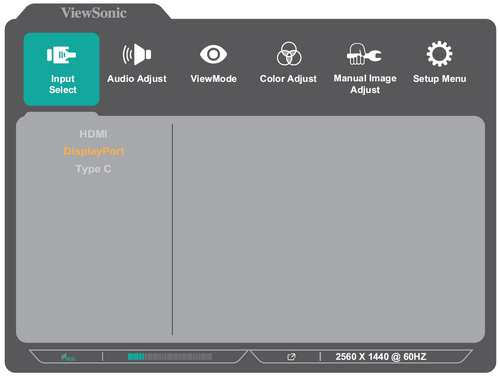

    Input Select

    Input Select
    1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
    2. Press the 1 (ViewMode) or 2 key to select Input Select. Then press the 3 key to enter the Input Select menu.
    3. Press the 1 (ViewMode) or 2 key to select the desired input source. Then press the 3 key to confirm the selection.

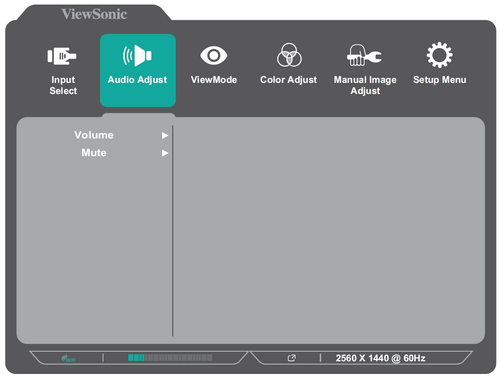

    Audio Adjust

    Audio Adjust
    Menu Option Description
    Volume Adjust the monitor's sound level.
    Mute Turn off the monitor's sound.
    1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
    2. Press the 1 (ViewMode) or 2 key to select Audio Adjust. Then press the 3 key to enter the Audio Adjust menu.
    3. Press the 1 (ViewMode) or 2 key to select the desired option. Then press the 3 key to enter its sub-menu.
    4. Press the 1 (ViewMode) or 2 key to adjust/select the setting, and press the 3 key to confirm the selection (if applicable).

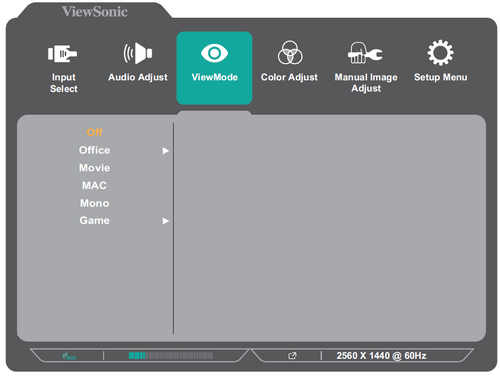

    ViewMode

    ViewMode
    Menu Option Description
    Off Disable the ViewMode function.
    Office Ideal screen settings for office applications.
    Movie Ideal screen settings for watching movies.
    MAC Ideal screen settings when connecting to Mac computers.
    Mono Set the screen to a monochrome, grayscale.
    Game Ideal screen settings for playing games.
    1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
    2. Press the 1 (ViewMode) or 2 key to select ViewMode. Then press the 3 key to enter the ViewMode menu.
    3. Press the 1 (ViewMode) or 2 key to select the setting. Then press the 3 key to confirm the selection.

    Color Adjust

    Color Adjust
    Note: Some sub-menus may not be adjustable depending on the user’s custom settings.
    Menu Option Description
    Contrast/Brightness Contrast
    Adjusts the degree of difference between the lightest and darkest parts of the picture and changes the amount of black and white in the image.
    Brightness
    Adjusts the background black levels of the screen image.
    Color Temperature
    Menu Option Description
    Bluish Set the color temperature to 9300K.
    Cool Set the color temperature to 7500K.
    Native Default color temperature. Recommended for daily use.
    Warm Set the color temperature to 5000K.
    User Set a custom color temperature.
    Color Space
    Menu Option Description
    Auto Automatically recognize the input signal's color space.
    RGB Set the input signal color format as RGB.
    YUV Set the input signal color format as YUV.
    Color Range
    Menu Option Description
    Auto Automatically recognize the input signal's color range.
    Full Range Black and white levels are full (0~255).
    Limited Range Black and white levels are limited (16~235).
    Gamma Manually adjust the brightness level of the monitor’s grayscale levels.
    1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
    2. Press the 1 (ViewMode) or 2 key to select Color Adjust. Then press the 3 key to enter the Color Adjust menu.
    3. Press the 1 (ViewMode) or 2 key to select the menu option. Then press the 3 key to enter its sub-menu.
    4. Press the 1 (ViewMode) or 2 key to select the setting. Then press the 3 key to confirm the selection.
      5. Note: Some sub-menu options may have another sub-menu. To enter the respective sub-menu, press the 3 key. Follow the key guide that appears on the screen to select the option or make adjustments.

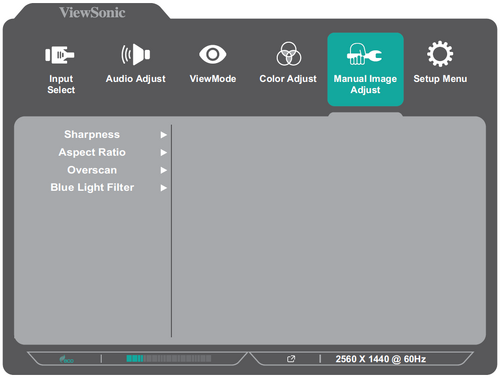

    Manual Image Adjust

    Manual Image Adjust
    Menu Option Description
    Sharpness Adjust the on-screen image's clarity.
    Aspect Ratio Select the on-screen image's width and height.
    Overscan Automatically enlarge the input signal's image horizontally and vertically to an equal aspect ratio that fills the screen.
    Blue Light Filter Block high-energy blue light for a more comfortable viewing experience.
    1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
    2. Press the 1 (ViewMode) or 2 key to select Manual Image Adjust. Then press the 3 key to enter the Manual Image Adjust menu.
    3. Press the 1 (ViewMode) or 2 key to select the menu option. Then press the 3 key to enter its sub-menu.
    4. Press the 1 (ViewMode) or 2 key to adjust/select the setting. Then press the 3 key to confirm (if applicable).

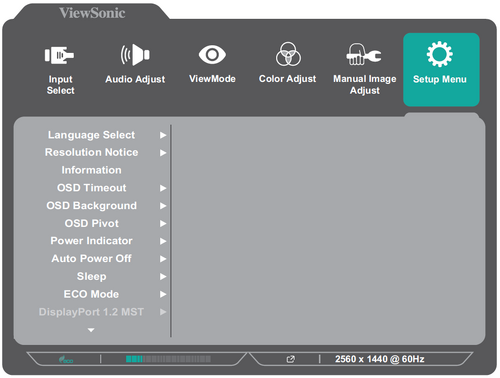

    Setup Menu

    Setup Menu
    Menu Option Description
    Language Select Set the language for the OSD Menu.
    Resolution Notice When enabled, a notification message will appear on-screen when the current screen resolution is not the correct native resolution.
    Information View information about the monitor.
    OSD Timeout Set the length of time the OSD Menu remains on screen.
    OSD Background Show/hide the OSD Menu's background when the OSD Menu is on screen.
    OSD Pivot Set the OSD Menu orientation.
    Menu Option Description
    0° Sets the OSD Menu without a pivot.
    +90° Sets the OSD Menu with a +90° pivot.
    -90° Sets the OSD Menu with a -90° pivot.
    Power Indicator Turn the power indicator light on or off. When turned on, the power indicator light will be blue when the monitor is turned on.
    Auto Power Off Set the monitor to automatically turn off after a certain amount of time.
    Sleep Set the monitor to enter sleep mode after a certain amount of time.
    ECO Mode Select a power saving mode.
    DisplayPort 1.2 MST Enable/Disable MST support and select USB Type C prioritization.
    DDC/CI Allow monitor control via the connected computer.
    Auto Detect Automatically detect the input signal.
    All Recall Resets all settings to their default values.
    1. Press the 2/3/4/5 key to display the Quick Menu. Then press the 4 key to display the OSD Menu.
    2. Press the 1 (ViewMode) or 2 key to select Setup Menu. Then press the 3 key to enter the Setup Menu menu.
    3. Press the 1 (ViewMode) or 2 key to select the menu option. Then press the 3 key to enter its sub-menu.
    4. Press the 1 (ViewMode) or 2 key to adjust/select the setting. Then press the 3 key to confirm (if applicable).
      5. Note: Some sub-menu options may have another sub-menu. To enter the respective sub-menu, press the 3 key. Follow the key guide that appears on the screen to select the option or make adjustments.
