    Connecting to Power

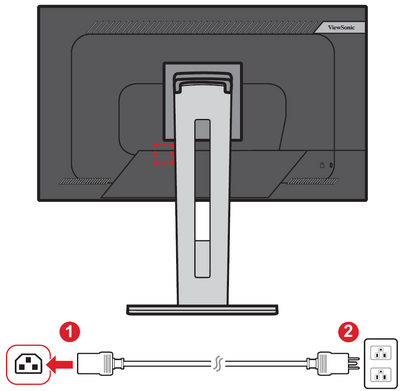

    Connecting to Power
    1. Connect the power cord to the AC IN jack at the rear of the device.
    2. Plug the power cord plug into a power outlet.

    Connecting to Video

    HDMI

    Connecting to HDMI
    1. Connect one end of an HDMI cable to an HDMI port of the monitor.
    2. Plug the other end of the cable into the HDMI port of your computer.

    DisplayPort

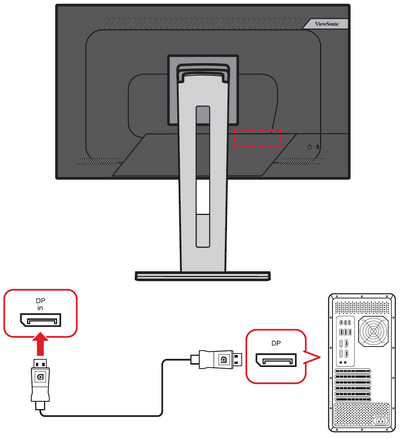

    Connecting to DisplayPort
    1. Connect one end of a DisplayPort cable to the DisplayPort port of the monitor.
    2. Plug the other end of the cable into the DisplayPort or Mini DisplayPort port of your computer.
      3. Note: To connect the monitor to the Thunderbolt port (v. 1 & 2) on your Mac, connect the Mini DisplayPort end of a “Mini DisplayPort to DisplayPort cable” to the Thunderbolt output port of your Mac. Then connect the other end of the cable to the DisplayPort port of the monitor.

    Type C

    Connecting to Type C
    1. Connect one end of a USB Type C cable to the USB Type C port of the monitor.
    2. Plug the other end of the cable into the full-featured USB port of your computer.
      3. NOTE:
      • For video output use, make sure your USB Type C output device (e.g., laptop) and cable are full-featured and support video signal transmission.
      • When you use Type C as the video signal input source, it is recommended to unplug the DisplayPort and HDMI signals to avoid audio output confusion.

    DisplayPort/USB Type-C MST Daisy Chain Connection

    With DisplayPort/USB Type-C Multi-Stream Transport (MST) support, you can daisy chain up to four monitors.

    1. Connect one end of a DisplayPort/USB Type-C cable to the DisplayPort/USB Type-C Out port of your computer. Then connect the other end of the cable to the DisplayPort In/USB Type-C port of the monitor.
    2. Use another DisplayPort cable to connect to the DisplayPort Out port of the first monitor. Then connect the other end of the cable to the DisplayPort In port of the second monitor.
    3. Repeat Step 2 as needed with up to four monitors.
      4. Note: Your graphics card compatibility and monitor resolution will determine the number of monitors. For example, you can connect four VG2456 (1920 x 1080), two VG2756-2K (2560 x 1440), or two VG2456 and one VG2756-2K.

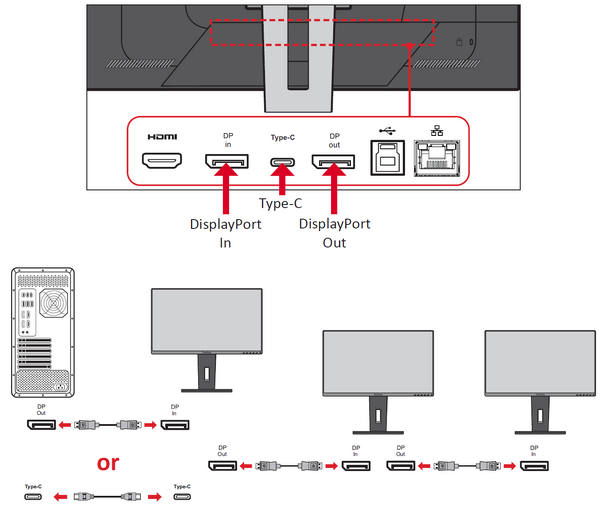

      Daisy Chain Connection

      NOTE:
      • DisplayPort 1.2 MST must be turned on in the Setup Menu in the OSD Menu to enable daisy chaining.
      • If High Data Speed is selected, it will prioritize high speed data transfer and Ethernet. MST will only support 2560 x 1440 @30Hz (maximum).
      • If High Resolution is selected, MST can support 2560 x 1440 @60Hz, but data transfer and Ethernet speed will be limited to USB 2.0 standards due to bandwidth limitation.
      • If the input source changes to HDMI, DisplayPort 1.2 MST will turn off automatically.

    USB Connection

    The monitor supports two types of USB ports, upstream and downstream. When making connection(s), observe the following guidelines.

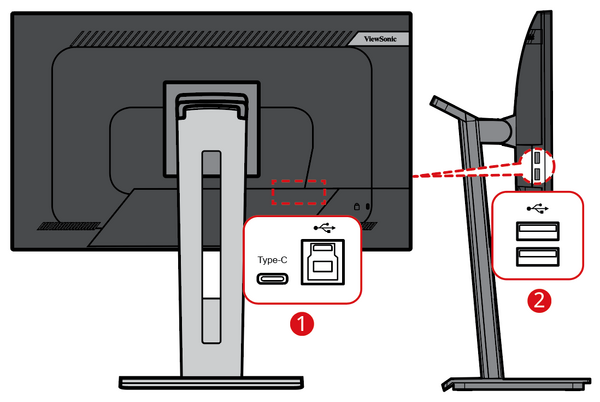

    Connecting to USB
    USB Type Connection Type Description
    Number1.svg Upstream Type C Full-featured port: transfers data, audio, video, and power.
    Supports: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/4.9A (LPS) charging.
    Type B Transfers data between the computer and the USB devices connected to the monitor.
    Number2.svg Downstream Type A For peripheral device(s) (e.g., storage device, keyboard, mouse, etc.).

    Using the USB Ports

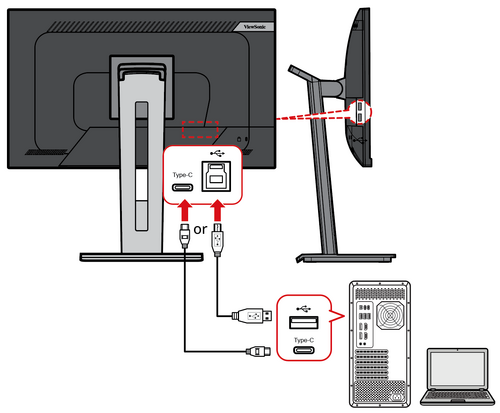

    1. To use the USB downstream ports, connect one end of a USB cable to a USB upstream port (Type C or Type B) of the monitor. Plug the other end of the cable into a USB port of your computer.
      2. Using the USB Ports

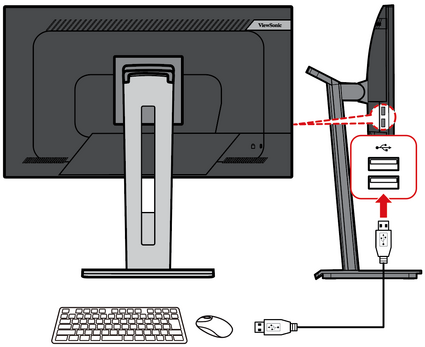

    2. Connect your peripheral device to a USB downstream port of the monitor.
      3. Using the USB Ports
      Note: If you are required to connect through either HDMI or DisplayPort, please also use a USB cable to connect to one of the monitor's USB upstream ports (Type C or Type B) to enable data transfer.

    Ethernet Connection

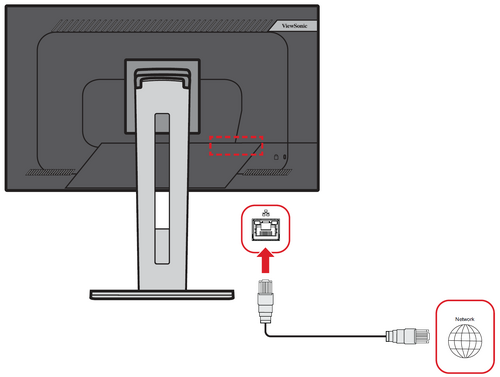

    Ethernet Connection
    1. Connect one end of your LAN (RJ45) cable to the LAN (RJ45) port of the monitor.
    2. Plug the other end into your network modem or port.
    3. Ensure your computer is also connected to the monitor by a rear USB upstream port (Type C or Type B) of the monitor.

    Ethernet Connection When Using USB Type C for Video Input

    No further steps are required.

    Ethernet Connection When Using DisplayPort or HDMI for Video Input

    In addition to the DisplayPort or HDMI connection, please also connect your computer to a rear USB upstream port (Type C or Type B) of the monitor to enable data transfer.
