    Starting Up the Projector

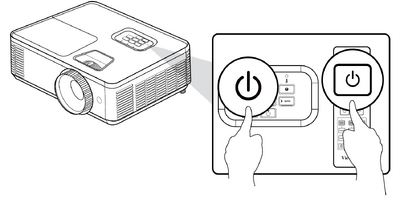

    1. Ensure the projector’s power cord is properly connected to a power outlet.
    2. Press the Power button on the projector or remote control to turn on the projector.
    NOTE:
    • The Power Indicator Light will be flashing blue during startup.
    • The projector cannot be turned off within one minute after starting.
    PA700 Starting the Projector.png

    Selecting an Input Source

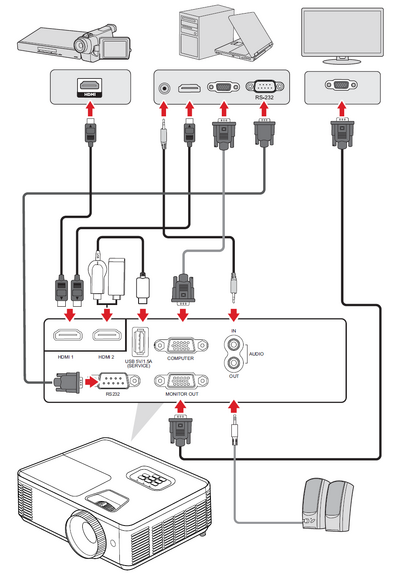

    The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

    PA700S Input Source.png

    The projector will automatically search for input sources. If multiple sources are connected, press the Source button on the projector or remote control to select the desired input.

    NOTE: Ensure the connected sources are also turned on.

    Help Menu

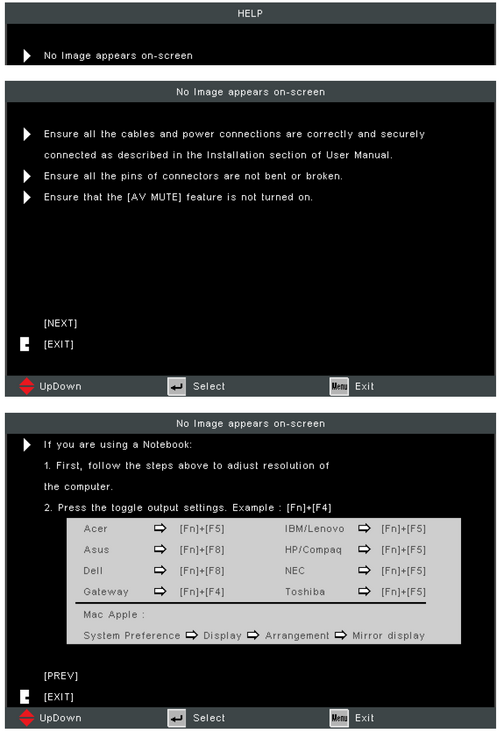

    If no input source is detected, the below “Help Menu” will be displayed.

    PA700 Help Menu 1.png

    If an input source is detected, the below “Help Menu” will be displayed.

    PA700 Help Menu 2.png

    Adjusting the Projected Image

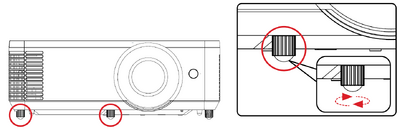

    Adjusting the Projector’s Height and Projection Angle

    The projector is equipped with two (2) adjustment feet. Adjusting the feet will change the projector’s height and the vertical projection angle.

    PA700 Height Adjust.png

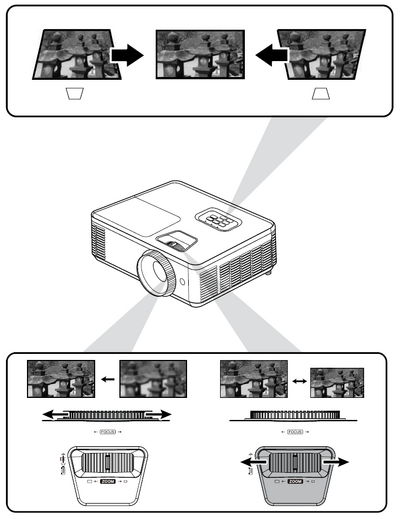

    Adjusting the Focus, Keystone, and Zoom

    You can improve and adjust the clarity and position of the image by adjusting the Focus Ring, Keystone Keys, or Zoom Ring

    PA700 Clarity Adjust.png

    Shutting Down the Projector

    1. Press the Power button on the projector or remote control and a “power off message” will appear.
    2. NOTE: The projector cannot be turned off within one minute after starting.
    3. Press the Power button again to confirm and shut down the projector.
    4. NOTE: The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the Power Indicator Light will flash blue.
    5. The Power Indicator Light will turn solid red and enter standby mode.
    6. NOTE: If you wish to turn the projector back on, you must wait until the cooling cycle has finished and the projector has entered standby mode. When the projector is in standby mode, simply press the Power button again to turn on the projector.
