PA700X Specifications

Technical Specifications

Item	Category	Specifications
Model	P/N.	PA700X
	No.	VS19343
Projector	Type	Lamp (RLC-128)
	Display Size	30”~300”
	Throw Ratio	1.94~2.16 (100” @ 3.94 m)
	Lens	F=2.42~2.53, f=21.85~24.01 mm
	Display System	1-CHIP DMD
Input Signal	HDMI	fh: 15~102 kHz, fv:23~120 Hz, Pixel rate: 170 MHz
Resolution	Native	1024 x 768
Power	Input Voltage	AC 100-240V, 50/60 Hz (auto switch)
Operating Conditions	Temperature	0°C to 40°C (32°F to 104°F)
	Humidity	10% to 80% (non-condensing)
	Altitude	0 to 1,524 m (0 to 5,000 ft.) at 0°C to 35°C 1,525 to 3,657 m (5,000 to 12,000 ft.) at 0°C to 30°C
Storage Conditions	Temperature	-30°C to 60°C (-22°F to 140°F)
	Humidity	10% to 90% (non-condensing)
	Altitude	0 to 12.1 km (0 to 40,000 ft.)
Dimensions	Physical (W x H x D)	309 x 115 x 234 mm (12.2” x 4.5” x 9.21”)
Weight	Physical	2.70 kg (5.95 lbs)
Power Consumption	On	295W (Typical)
	Off	< 0.5W (Standby)

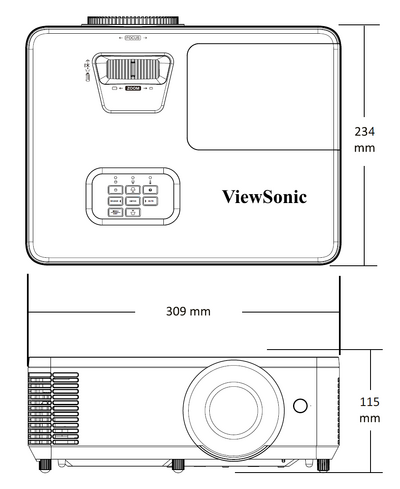

Projector Dimensions

309 mm (W) x 115 mm (H) x 234 mm (D)

Timing Chart

Analog RGB

Signal	Resolution	Refresh Rate (Hz)
VGA	640 x 480	60/67/72/75
SVGA	800 x 600	56/60/72/75
XGA	1024 x 768	60/70/75
	1152 x 864	75
WXGA	1280 x 800	60
Quad-VGA	1280 x 960	60
SXGA	1280 x 1024	60/75
WXGA	1366 x 768	60
WXGA+	1440 x 900	60
UXGA	1600 x 1200	60
WSXGA+	1680 x 1050	60
HD	1280 x 720	60/120
MAC 13"	640 x 480	67
MAC 16"	832 x 624	75
MAC 19"	1024 x 768	75
MAC 21"	1152 x 870	75
HDTV (1080p)	1920 x 1080	60

HDMI PC Timing

Signal	Resolution	Refresh Rate (Hz)
VGA	640 x 480	60/67/72/75
SVGA	800 x 600	56/60/72/75
XGA	1024 x 768	60/70/75
	1152 x 864	75
WXGA	1280 x 800	60
Quad-VGA	1280 x 960	60
SXGA	1280 x 1024	60/75
WXGA+	1440 x 900	60
UXGA	1600 x 1200	60
WSXGA+	1680 x 1050	60
MAC 16"	832 x 624	75
MAC 21"	1152 x 870	75
Full HD	1920 x 1080	60

HDMI Video Timing

Signal	Resolution	Refresh Rate (Hz)
HDTV (1080p)	1920 x 1080	50/60
HDTV (1080i)	1920 x 1080	50/60
HDTV (720p)	1280 x 720	50/60
SDTV (480p)	720 x 480	60
SDTV (576p)	720 x 576	50
SDTV (480i)	720 x 480	60
SDTV (576i)	720 x 576	50

HDMI 3D Timing

Signal	Resolution	Refresh Rate (Hz)
Frame Packing
1080p	1920 x 1080	24
720p	1280 x 720	50/60
Side by Side
1080i	1920 x 1080	50/60
Top and Bottom
1080p	1920 x 1080	24
720p	1280 x 720	50/60

NOTE:

• 1080i@25hz and 720p@50hz will run in 100 Hz; other 3D timing will run in 120 Hz.
• 1080P@24hz will run 144Hz (XGA, WXGA, 1080p)/96Hz (WUXGA).
• If the input frame rate is 48 Hz or greater, the output frame rate is set to twice the input frame rate (FRC = 2X mode).
• If the 3D input frame rate is 25Hz or greater, the output frame rate is set to four times the input frame rate (FRC = 4X mode).
• If the 3D input frame rate is 24Hz (includes 23.9Hz), the output frame rate is set to six times the input frame rate (FRC = 6X mode).

LED Indicators

When the warning indicators (see below) light up or flash, the projector will automatically shutdown. Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicators light up or flash, please contact your nearest service center for assistance.

Status and Description	Power Indicator Light		Temperature Indicator Light	Light Source Indicator Light
	Red	Blue	Red	Red
Standby State (Power cord input)	Steady Light
Power On (Warming)		Flashing (0.5 sec off/0.5 sec on)
Power On and Lamp Lighting		Steady Light
Power Off (Cooling)		Flashing (0.5 sec off/0.5 sec on) Back to red steady light when the cooling fan turns off.
Error (Lamp Failure)	Flashing			Steady Light
Error (Fan Failure)	Flashing		Flashing
Error (Overheat)	Flashing		Steady Light
