PA700X Remote Control

    From ViewSonic User Guide Database

    Overview

    Remote Control

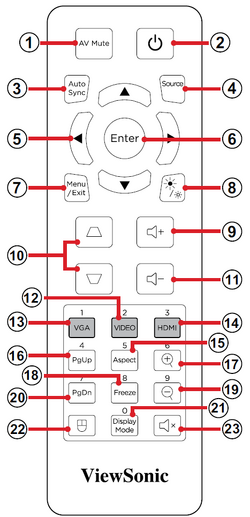

    Number Button Description
    1 AV Mute Hide and recover the screen picture and volume mute.
    2 Power Turns the projector On or Off.
    3 Auto Sync Automatically synchronize the projector to the input source.
    4 Source Toggle to the next input source.
    5 Navigation Buttons Navigates and selects the desired menu items and make adjustments when the On-Screen Display (OSD) Menu is activated.
    6 Enter Confirm the selection when the On-Screen Display (OSD) Menu is activated.
    7 Menu/Exit
    • Turns the On-Screen Display (OSD) Menu On or Off.
    • Go back to a previous OSD Menu.
    • Exit and Save menu settings.
    8 Brightness Displays the brightness selection bar.
    9 Volume Up Increase the volume level.
    10 Keystone Manually correct distorted images.
    11 Volume Down Decrease the volume level.
    12 Video Unsupported Button
    13 VGA Selects COMPUTER IN port for display.
    14 HDMI Selects the HDMI 1 or HDMI 2 input source.
    15 Aspect Displays the format selection bar.
    16 Page Up Operates your display software program (on a connected PC) which responds to page up commands (like Microsoft PowerPoint).
    NOTE: Only available when a PC input source is selected and the PC and projector are connected via USB.
    17 Zoom In Increase the projected image size.
    18 Freeze Freeze/un-freeze the projected image.
    19 Zoom Out Reduce the projected image size.
    20 Page Down Operates your display software program (on a connected PC) which responds to page down commands (like Microsoft PowerPoint).
    NOTE: Only available when a PC input source is selected and the PC and projector are connected via USB.
    21 Display Mode Displays the display mode selection bar.
    22 Mouse Mode Enable/disable the mouse function.
    23 Mute Mute/Unmute.

    Using the Remote Control Mouse Mode and Page Up/Down Function

    1. Connect the PC/Notebook to the projector via the COMPUTER and USB ports.
    2. Set the input source to PC.
    3. Now you can operate your display software program which responds to page up/down commands (like Microsoft PowerPoint).

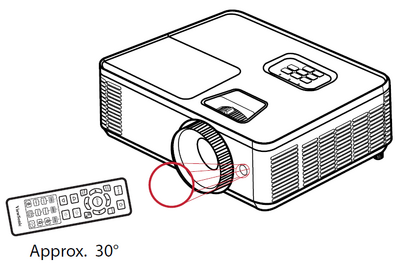

    Remote Control - Receiver Range

    To ensure proper function of the remote control follow the steps below:

    1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).
    2. The distance between the remote control and the sensor(s) should not exceed 10 m (32.8 ft.).
    NOTE: Refer to the illustration for the location of the infrared (IR) remote control sensor(s).
    PA700 Remote Control Effective Range.png

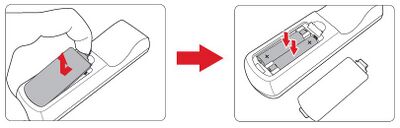

    Replacing the Batteries

    1. Remove the battery cover from the bottom of the remote control by pressing the finger grip and sliding it across.
    2. Remove any existing batteries (if necessary) and install two AAA batteries.
    NOTE: Observe the battery’s polarities as indicated.
    1. Replace the battery cover by aligning it with the base and pushing it back into position.
      LS710HD LS751HD Replacing Batteries.JPG
    NOTE:
    • Avoid leaving the remote control and batteries in excessive heat or a humid environment.
    • Replace only with the same or equivalent type recommended by the battery manufacturer.
    • If the battery is drained or if you will not be using the remote control for an extended period of time, remove the battery to avoid damage to the remote control.
    • Dispose of used batteries according to the manufacturer’s instructions and local environment regulations for your region.
