    Connecting to Power

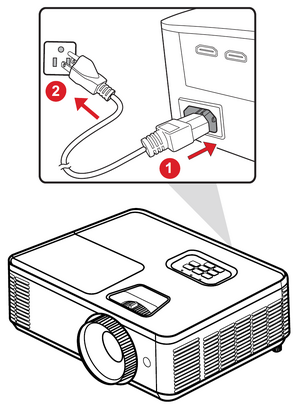

    1. Connect the power cord to the AC IN jack at the rear of the projector.
    2. Plug the power cord into a power outlet.
    Connecting to Power


    NOTE: When installing the projector, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible outlet near the unit. If a fault should occur during operation of the projector, use the disconnect device to switch off the power supply, or disconnect the power plug.

    Connecting to External Devices

    HDMI Connection

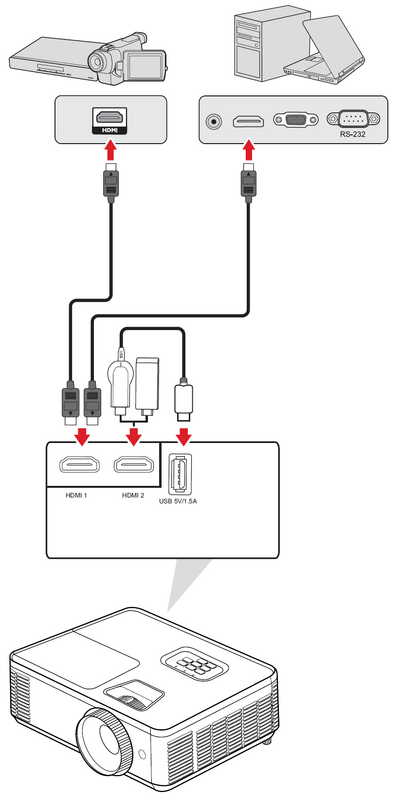

    Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI 1/2 port of your projector.

    NOTE: iPhone/iPad users will need to use an additional adapter.
    PA700 HDMI Connect.png

    Audio Connection

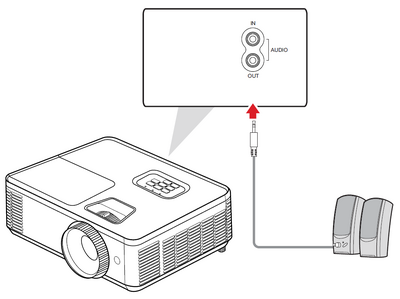

    You can connect to various external sound delivery devices via the AUDIO OUT port.

    PA700 Audio Out Connect.png

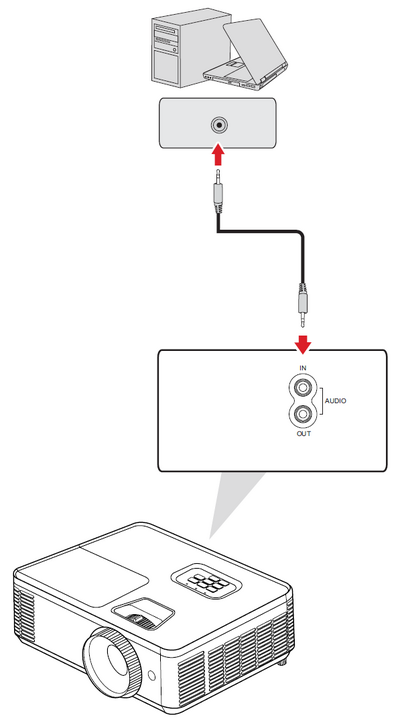

    Additionally, you can connect to the AUDIO IN port with your device to use the projector’s audio output.

    PA700 Audio In Connect.png

    USB Type A Connection

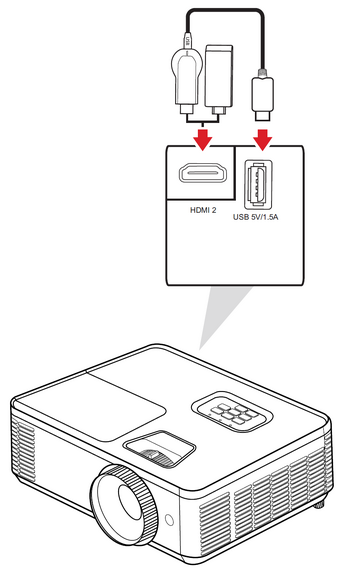

    The USB port is for: Service and HDMI devices.

    PA700 USB Connect.png
    NOTE: The PA700X's USB Type A supports 5V/1.5A power output for HDMI dongle charging.

    RS-232 Connection

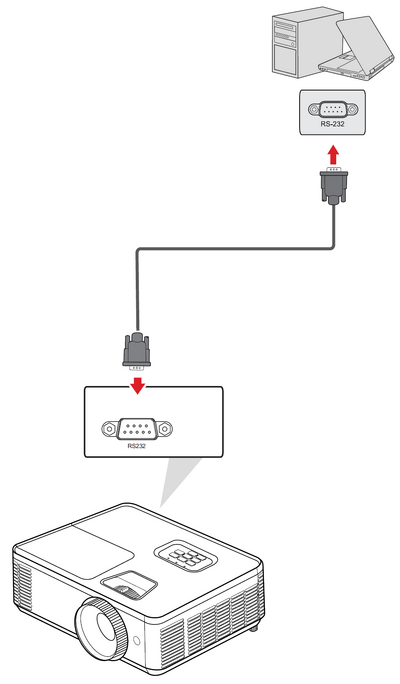

    When you use a RS-232 serial port cable to connect the projector to an external computer certain functions can be controlled remotely by the PC, including Power On/Off, Volume adjustment, Input select, and more.

    PA700 RS-232 Connect.png

    PC/Notebook and Monitor Connection

    Connecting a PC/Notebook

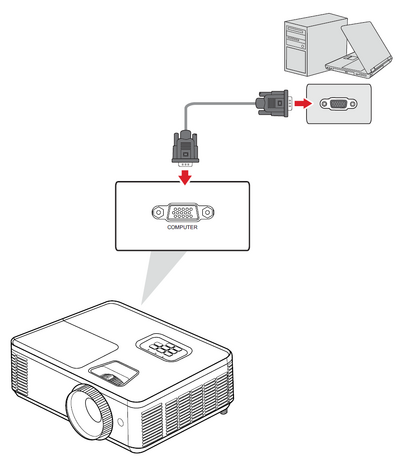

    Connect one end of a VGA cable to the VGA port of the PC/Notebook. Then connect the other end of the cable to the COMPUTER port of the projector.

    NOTE: To use the remote mouse control function, take a USB cable and connect one end to the USB port of the computer, and the other end to the USB port on the projector.
    PA700 PC Notebook Connect.png

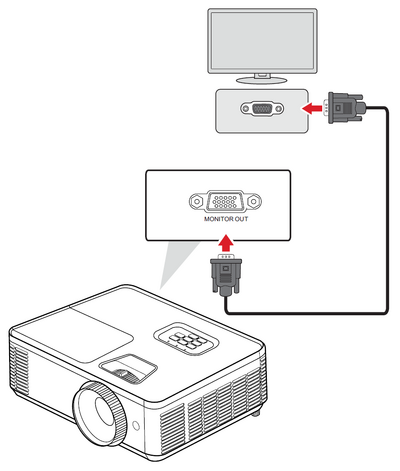

    Monitor Connection To view the projected content up close on a monitor as well as project it, a monitor can be connected to the MONITOR OUT port of the projector. Connect one end of a VGA cable to the VGA port of the monitor. Then connect the other end of the cable to the MONITOR OUT port of the projector.

    PA700 Monitor Connect.png
