    On-Screen Display (OSD) Menu

    Access General Settings, Input Settings, and Widgets through the OSD Menu.

    ViewBoard has two options for opening the OSD Menu:

    Option 1

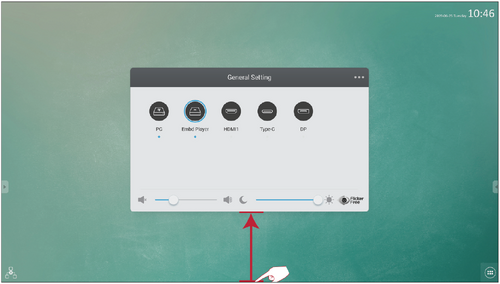

    Swipe up from the bottom of the screen.

    IFP70 OSD Menu Long Press.png

    Option 2

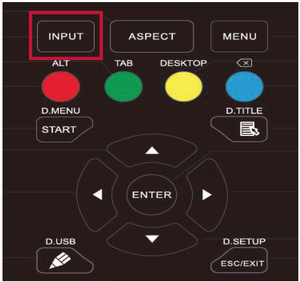

    Press the INPUT button on the remote control.

    IFP70 OSD Menu Input.png

    General Settings

    IFP70 General Settings.svg

    To select an Input Source:

    1. Press INPUT on the remote control to display the General Setting menu, then press ▼ to enter the Input Source menu.
    2. Press ▼/▲/◄/► to select the input source you want.
    3. Press ENTER on the remote control, or touch the input source.
    4. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.
    NOTE: PC source will only display when the slot-in computer is connected.

    To adjust the Backlight and enable/disable Flicker Free:

    1. Press INPUT on the remote control to display the General Settings menu.
    2. Drag the brightness slider directly to adjust the backlight value, and/or touch the Flicker Free icon to enable/disable the function.
    3. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.

    To adjust the Volume:

    1. Press INPUT on the remote control to display the General Settings menu.
    2. Drag the volume slider directly to adjust the value.
    3. Press Mute on the remote control to enable or disable the mute function.
    4. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.

    Detailed Settings

    Press MENU on the remote control or select the More Settings icon on the General Setting menu to launch the Detailed Settings menu. Detailed Settings include: Audio, Screen, and Display.

    NOTE: For non-Android inputs only.

    Audio Settings

    IFP70 Audio Settings Menu.svg
    1. Press ► on the remote control and select the Audio menu.
    2. Press ▼/▲/◄/► on the remote control or directly touch the option to select it.
    3. Adjust the Volume, Bass, Treble, and Balance directly by touching and adjusting each value, or with the remote control by pressing ENTER and using ◄/► to adjust the option.
    4. Touch the Mute slider directly to enable/disable mute, or press Mute on the remote control.
    5. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.

    Screen Settings

    IFP70 Screen Settings Menu.svg
    1. Press ► on the remote control and select the Screen menu.
    2. Press ▼/▲/◄/► on the remote control or directly touch the option to select it.
    3. Adjust your preference by touching each value directly, or with the remote control by pressing ENTER.
    4. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.
    NOTE:
    • Burn-in (Image Sticking) Protection
    To reduce the possibility of screen burn-in, this unit is equipped with image sticking protection technology. If the screen displays a still image for a certain period of time you define, the device activates a screen saver to prevent the formation of burnt in ghost images on the screen. Image sticking protection moves the picture slightly on the screen. The image sticking protection time setting allows you to program the time between movements of the picture in minutes.

    Display Settings

    IFP70 Display Settings Menu.svg
    1. Press ► on the remote control and select the Display menu.
    2. Press ▼/▲/◄/► on the remote control or directly touch the option to select it.
    3. Adjust the Brightness, Contrast, Hue, and Sharpness directly by touching and adjusting each value, or with the remote control by pressing ENTER and using ◄/► to adjust the option.
    4. Drag the blue light slider directly to adjust the blue light value.
    5. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.

    Eye Health

    Calculating Breaks
    When viewing screens for extended periods, it is recommended to take periodic breaks from viewing. Short breaks of at least 10 minutes are recommended after one (1) hour of continuous viewing.

    Taking shorter, more frequent breaks are generally more beneficial than longer, less frequent breaks.

    Focus Fatigue (20-20-20 Rule)
    To reduce the risk of eye fatigue by constantly looking at the screen, look away from the screen at least every 20 minutes and gaze at a distant object (at least 20 feet away) for at least 20 seconds.

    Looking at Distant Objects
    While taking breaks, users can further reduce eye strain and dryness by focusing on objects that are further away from them for 10-15 seconds, then gaze at something up close for 10-15 seconds. Repeat this up to 10 times. This exercise reduces the risk of your eyes’ focusing ability to “lock up” after prolonged computer work.

    Eye and Neck Exercises
    Eye Exercises
    Eye exercises can help minimize eye strain. Slowly roll your eyes to the left, right, up, and down. Repeat as many times as needed.

    Eye Exercises

    Neck Exercises
    hang at your sides, bend forward slightly to stretch the neck, turn your head to the right and to the left. Repeat as many times as needed.
