Power On/Off your ViewBoard
- Ensure the power cord is connected, plugged into a power outlet, and the power switch is in the “On” position.

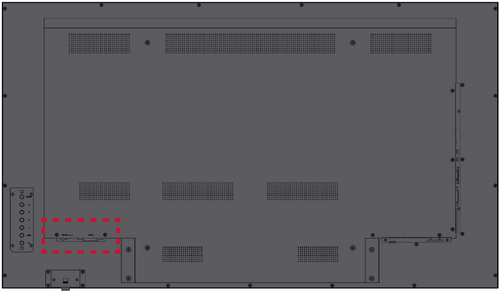

- NOTE: The AC IN socket and Power Switch are located at the rear of the device.
- Press the Power button to turn on the ViewBoard.
- To turn the ViewBoard off, press and hold the Power button.
Initial Launch Setup
When you first turn on your ViewBoard, an initial setup wizard will launch.
- Select your Language.
- Setup and verify your LAN connection.
- Select your Time Zone to set the Date and Time.
- Select your preferred System Mode.
- Select your Power Saving plan.
- Accept or Decline the Privacy and Copyright Protection Terms.
vLauncher - Customizable Welcome Screen
Both the vLauncher Title and Subtitle can be customized by tapping on them. Additionally, a password can be set by tapping on Set Password.
- Installed applications can all be found on the welcome screen. To view all applications tap on the Down Arrow.
- To hide the application drawer tap the Up Arrow.
- To add a shortcut to an application, tap, hold, and drag up the icon.
- To remove an application shortcut, tap, hold, and drag the icon down.
Toolbar trigger icons are on the edge of the ViewBoard launcher providing access to your tools.
To launch a tool:
- Tap a Toolbar trigger icon.
- Tap on your desired tool icon.
- NOTE: The default toolbar setting is to be available for all input sources; however, users can go to: Settings > Preference > Toolbar setting to adjust the options: (1) available for all input sources, (2) hide the toolbar for all input sources.
|Return to the previous operation screen.|
|Return to the Home Screen of the Embedded Player.|
|Display all embedded applications that are currently being used.|
|View all installed applications.|
|Launch the myViewBoard software.|
|Record, view, and save the on-screen content.|
|Access the pen, highlighter, clear, and save options.
Annotate the overlay of any input source with black, white, yellow, orange, red, pink, green, or blue ink.
Mark and highlight with yellow, grey, gold, orange, red, pink, green or blue ink.
Selectively remove the digital ink on the screen.
Undo the previous action.
Redo the previous action.
Clears all the digital ink on the screen.
Save the screen image and any annotations.
Close the drawing tool.
|View more applications within the ViewBoard toolbar.
Convert the currently displayed content into a still image; then you can zoom in, zoom out, go back to full screen, and exit.
Highlight the focus content zone. Tap the Setting icon to adjust the spotlight size and alpha blending effect.
Tapping Start will initiate the stopwatch. At any time, the stopwatch can be paused, resumed, split, or reset.
Access the countdown timer with an optional alarm setting. Touch and swipe to adjust the numeric values, then click Start. At any time, the countdown timer can be paused, resumed, or reset.
Hide or unhide the Tool bar trigger icons.
Take a screenshot of the current screen.
|Access the General Settings.|
