    ViewBoard Input Source Settings

    The ViewBoard input source is the default source that is active when turning on your ViewBoard. Press MENU on the remote control or tap the setting icon next to the input source in the On-Screen Display (OSD) Menu’s Input Settings to enter the Settings menu.

    Wireless & Network

    Check current network connection status, set up and manage Wi-Fi, Ethernet, Bluetooth, and VPN, and establish a Wireless hotspot.

    IFP52 Settings Wireless and Network.png
    NOTE:
    • Wi-Fi, Wireless hotspot and Bluetooth settings will appear when VS050B(optional) has been installed.
    • Ethernet will disable automatically when Wi-Fi is enabled. Wi-Fi will disable automatically when Ethernet is enabled. Wi-Fi will disable when Wireless hotspot is enabled.
    • The device cannot connect to the Internet when Wireless hotspot is enabled.

    Wi-Fi

    Setup and manage wireless access points.

    • IFP52 WiFi 1.png
    • IFP52 WiFi 2.png
    • IFP52 WiFi 3.png
    • Tap the toggle button to turn Wi-Fi On or Off.
    • Once On, you can: Add a Network, view Saved Networks, Refresh the network list, or view Advanced settings.
    • In Advanced settings, you can toggle Network notifications On or Off and view Network card info.

    Ethernet

    Set the local network and proxy.

    • IFP52 Ethernet 1.png
    • IFP52 Ethernet 2.png
    • Tap the drop down menu to connect/disconnect the Ethernet.
    • You can adjust Local network and Proxy settings as well.

    Wireless Hotspot

    Set and share your internet connection with other devices.

    • Tap the toggle button to turn Wireless hotspot On or Off.
    IFP52 Wireless Hotspot.png
    • Tap Set up to set the Network name, Security, and Password.

    VPN

    Setup and manage Virtual Private Networks.

    IFP52 VPN.png

    To create a VPN profile:

    1. Go to: Settings > Wireless & Network > VPN and tap Add VPN.
    2. Key in the Name.
    3. Select the VPN Type.
    4. Choose to enable/disable PPP encryption (MPPE) and/or show Advanced options.

    Share

    SAMBA

    The SAMBA Service provides file sharing via LAN. When the SAMBA Service is enabled, the user can explore the ViewBoard file system with a PC or mobile equipment.

    • IFP52 SAMBA 1.png
    • IFP52 SAMBA 2.png
    1. To access, go to: Settings > Share > SAMBA.
    2. Tap the toggle button to enable the SAMBA Service, then set a password if needed.
    3. Ensure the ViewBoard and client equipment are connected to the same network.
    4. Log in to the ViewBoard with the client equipment. Input the ViewBoard’s IP address.
    5. Key in the user name and password, then select OK (if necessary).
    6. After a successful log in, the ViewBoard files will be available.

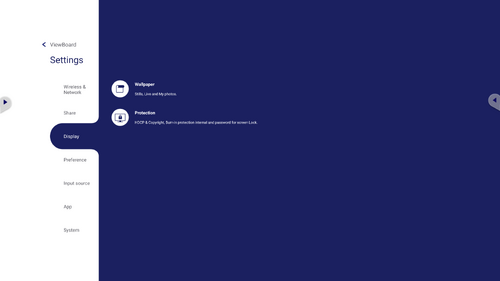

    Display

    Adjust the Wallpaper, Theme, Protection, and HDMI Out settings.

    IFP4320 Display.png

    Wallpaper

    Users can change their wallpaper with default images (both still and live), or use their own by tapping My Photo and selecting the image file.

    IFP52 Wallpaper.png

    Protection

    Toggle HDCP & Copyright and Burn-in Protection Interval On/Off, and set a Password for Screen Lock.

    IFP52 Protection Update.png

    Preference

    View and adjust Touch, Language, Keyboard & Input Method, Date & Time, Boot Mode & Advanced Setting, Start up & Shut down, and Toolbar settings.

    IFP52 Preference Settings.png

    Touch

    Adjust Touch Settings and toggle Touch Sounds On/Off.

    IFP52 Touch.png

    Language

    Choose the preferred language from the available languages.

    IFP52 Language.png

    Keyboard & Input Method

    Enable/disable the visual keyboard and/or change the default input method.

    IFP52 Keyboard Input.png

    Date & Time

    Set the system time and format.

    IFP50-3 Date and Time.png
    Item Description
    Automatic Date & Time When enabled, the ViewBoard will automatically synchronize the date and time via the Internet.
    Time Zone Select the appropriate time zone.
    Time Format Choose from 12-hour or 24-hour time format. Simply toggle 24-hour format On/Off.
    Date Format Select from the available date formats.

    Boot Mode

    Adjust the preferred boot up mode and set/reset a password.

    • IFP52 Boot and Advanced Update 1.png
    • IFP52 Boot and Advanced Update 2.png
    Item Description
    Normal Mode The embedded screen sharing Apps will run normally.
    Secured Mode The embedded screen sharing Apps will be removed.
    Disable Embedded OS The system will automatically reboot, and then the Embedded OS will not appear.
    ViewBoard Settings Access Password Toggle to lock/unlock the ViewBoard Settings.
    Password for Protection Modify the Boot mode and ViewBoard Settings entry password.
    Local File Protection Policy Choose how long to keep local storage files in the Folder app.
    Color Correction Color correct the ViewBoard display screen.
    Reset ViewBoard Reset the ViewBoard to its factory default settings.

    Startup & Shutdown

    Set the Startup Input, Standby Mode, EnergyStar Mode, Black Screen After Startup, Power off Reminder timer and Schedule settings.

    IFP52 Startup and Shutdown Update.png
    Item Description
    Startup Input Adjust the Startup Input preference.
    Display Setting when No Signal Decide what happens to the display when there is no signal for HDMI, PC, or VGA sources.
    Standby Mode Decide what happens when you press the Power button while the ViewBoard is On.
    EnergyStar Mode Enable to automatically initiate Sleep Mode when the screen is idle for one hour.
    Black Screen After Startup When enabled, the ViewBoard will turn off the backlight automatically after booting up.
    Time Switch Power Off Reminder When enabled, the ViewBoard will turn off without any reminder after the scheduled off time.
    Schedule Schedule a Boot and Shut off time.

    Toolbar Setting

    Adjust the Side toolbar setting.

    IFP52 Toolbar Settings.png

    Input Source

    Adjust the input source names and settings, as well as the side tool bar settings.

    IFP52 Input Source Settings.png

    Rename Input Source

    Set labels for each input source that will be easily recognized when displayed.

    IFP52 Rename Source.png

    Source

    Toggle Wake up by active source, Signal auto search, and HDMI CEC and select Input port auto switch.

    IFP52 Source.png
    Item Description
    Wake up by Active Source The screen will turn on automatically after plugging in an HDMI cable when the screen is off.
    Signal Auto Search When enabled, if the current source does not have a signal, the ViewBoard will automatically search for an input source.
    Input Port Auto Switch The original signal will automatically switch to a new cable after it’s plugged in.
    Energy Saving Set a time period to power off if no signal is detected.
    HDMI CEC Enable/disable HDMI CEC functions.

    App

    The user can view App information and force stop, uninstall, clear data, clear cache, and clear defaults.

    IFP52 App Settings.png
    NOTE:
    • Pre-loaded apps cannot be uninstalled.
    • Not all apps support Clear Defaults.

    App

    View any running or installed applications. Tap on them for more detailed information and options.

    • IFP52 App 1.png
    • IFP52 App 2.png
    • IFP52 App 3.png
    • IFP52 App 4.png
    • By tapping on a running application, you can see more information, stop, or report the application.
    • Selecting All or Download will list all installed applications.
    • Tapping on any application will display further information and options.

    System

    View and adjust Storage, Security, System Update, and About device settings.

    IFP52 System Settings.png

    Storage

    Users can check the storage status of their ViewBoard.

    Clone to USB

    Copy settings to an external USB drive.

    IFP52 Clone to USB.png

    Display ID

    Assign a number to remote control the display by RS-232/LAN.

    IFP52 Display ID.png
    • To assign or change the Display ID, tap Change and input a number.
    NOTE: The Display ID is for RS-232 users, and the range is 01~99.

    Security

    Review Certificate, Trusted Credential storage, and Unknown sources install settings.

    • IFP52 Security 1.png
    • IFP52 Security 2.png
    • IFP52 Security 3.png
    • IFP52 Security 4.png
    • IFP52 Security 5.png
    • IFP52 Security 6.png
    • Tap on Install certificate from storage to add additional certificates.
    • Selecting Clear Credentials will remove all manually installed credentials.
    NOTE: Pre-loaded credentials cannot be cleared.
    • Under Trusted Credentials view and edit all trusted and installed CA certificates.
    • Tapping on a credential will provide more detailed information.
    • Allow the installation of applications from unknown sources by selecting the box under Unknown source security.
    NOTE: Apps from unknown sources may not be compatible or work properly.

    Privacy and Copyright Protection
    Agree/disagree to allow the ViewBoard to collect user behavior data.

    IFP52 Privacy and Copyright.png

    System Update

    The ViewBoard automatically searches for software updates whenever connected to the Internet (OTA). With just one click, users can update their version of ViewBoard software.

    IFP52 Update.png
    Item Description
    Auto Update When the display is off, the system will automatically check for a new version. If a new version is found, the system will automatically update. After the update is complete, the system will turn off.
    Schedule Set the update time.
    Manual Update Update the software manually.
    Check Update Check for any available updates.
    Local Update Update the system from an external USB device.

    About Device

    Display Embedded Player information, Legal information, and Asset Tagging.

    • IFP52 About Device 1.png
    • IFP52 About Device 2.png
    • IFP52 About Device 3.png
    • By selecting Edit, the asset information can be adjusted.
    • Tap on Legal information to check open source licenses.
