Package Contents

  • HDMI Cable (3.28 ft/1 m)
    HDMI Cable (3.28 ft/1 m)
  • Power Cable (5.9 ft/1.8m) (ship by region)
    Power Cable (5.9 ft/1.8m)
    (ship by region)
  • Remote Control
    Remote Control
  • AAA Battery x 2
    AAA Battery x 2
  • USB Cable for Touch (3.28 ft/1 m)
    USB Cable for Touch (3.28 ft/1 m)
  • RS-232 Adapter
    RS-232 Adapter
  • Quick Start Guide
    Quick Start Guide
  • USB Type-C Cable (3.28 ft/1 m)
    USB Type-C Cable (3.28 ft/1 m)
  • Compliance Statement
    Compliance Statement
  • STND-056
    STND-056

Wall Mount Kit Specifications (VESA)

Please follow the instructions in the wall mount installation guide to install your wall mount or mobile mount bracket. If attaching to other building materials, please contact your nearest dealer.

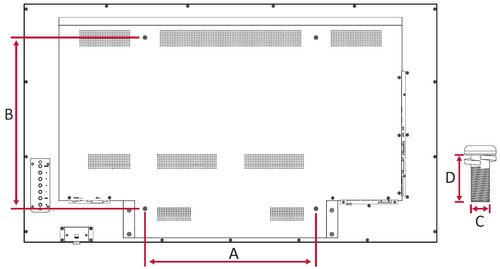

Wall Mount Kit Specifications
Model VESA Spec. (A x B) Standard Screw (C x D) Quantity
IFP4320 400 x 400 mm M6 x 25 mm 4
Do not use screws that are longer than the standard dimension, as they may cause damage to the inside of the display.

Product Overview

Front Panel

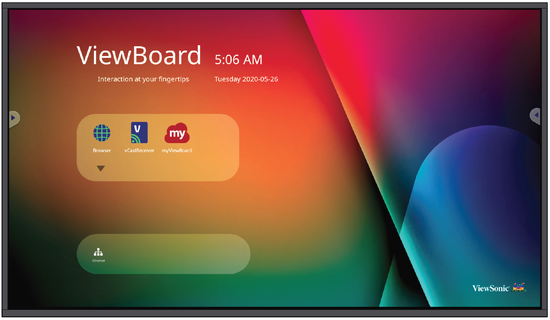

IFP4320 Front Panel

Rear Panel

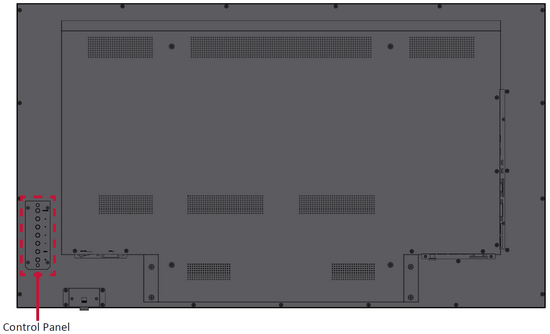

IFP4320 Rear Panel

Control Panel

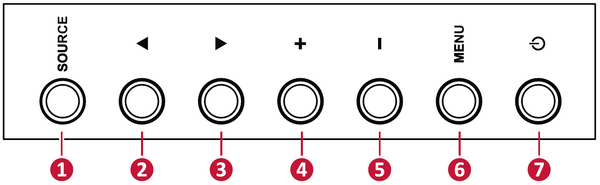

IFP4320 Control Panel
Number Description
1
  • Enter the signal source selection menu.
  • Select the signal source.
  • Confirm the operation under MENU.
2 In the OSD Menu, press the keys to select an item.
3 In the OSD Menu, press the keys to select an item.
4
  • Increase the volume level.
  • In the OSD Menu, adjust the value of the selected item.
5
  • Decrease the volume level.
  • In the OSD Menu, adjust the value of the selected item.
6
  • Enter the Main Menu.
  • Confirm the operation in the SOURCE menu.
7
  • Press to turn on/off the display’s backlight.
  • Press and hold to turn on/off the device.

I/O Panels

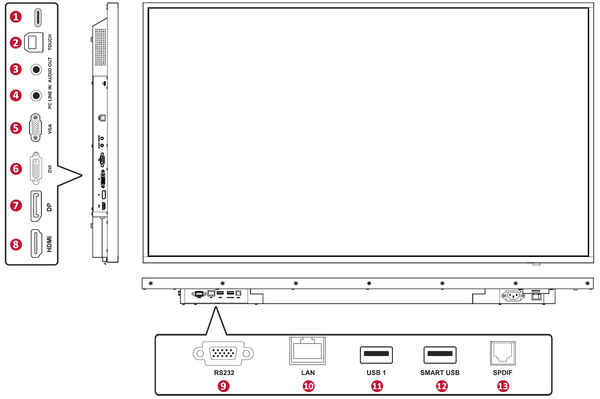

IFP4320 I/O Panel
Number Port Description
1 USB Type-C USB Type-C input; connect to a PC with USB Type-C output.
2 TOUCH
  • Touch signal output to external PC.
  • After connection (with an external PC), the device connected to the USB 3.0 port can directly be used by the external PC.
3 Audio Out Audio output to an external speaker/headset.
4 PC Line In External computer audio input.
5 VGA External computer video input.
6 DVI DVI input; connect to a PC with DVI output.
7 DisplayPort DisplayPort input; connect to a PC with DisplayPort output.
8 HDMI High definition input; connect to a PC with HDMI output, set-top box, or other video device.
9 RS-232 Serial interface; used for mutual transfer of data between devices.
10 LAN Standard RJ45 (10M/100M/1000M) Internet connection interface.
11 USB 1 Connect USB devices such as hard disks, keyboard, mouse, etc.
12 Smart USB Connect USB devices such as hard disks, keyboard, mouse, etc. Automatically switches between PC and ViewBoard.
13 SPDIF Multichannel sound via optical signals.

Further Reading
